Warranty Summary

This Mastercraft product has a 3-year limited warranty against defects in workmanship and materials, with exceptions for accessories and specific conditions.
Download Manual

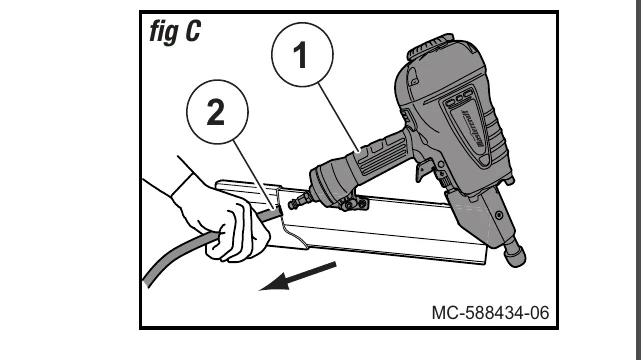

  1. Loading nails: Disconnect tool from air, slide magazine pusher back, insert nail strip with points down, slide pusher to lock.
  2. Operational mode: Manual (single-fire) for precision or Automatic (bump-fire) for speed. Mode conversion requires trigger change.
  3. Adjusting nail depth: Use depth adjustment dial. Clockwise to increase depth, counter-clockwise to decrease.
  4. Cold weather operation: Ensure compressor drained, keep tool warm, use pneumatic oil, adjust pressure, lubricate O-rings.
  5. Clearing jammed nail: Disconnect air, remove magazine, open cover, remove jam, close cover.

Troubleshooting and error codes

PROBLEM POSSIBLE CAUSES SOLUTIONS
Air leakage at the top of the tool or in the trigger area. 1. O-rings in the trigger valve are damaged.
2. The trigger valve heads are damaged.
3. Trigger valve stem, seal, or O-rings are damaged.		 1. Inspect and replace the O-rings.
2. Inspect and replace trigger valve heads.
3. Inspect and replace the trigger valve stem, seal, or O-rings.
Have the tool serviced by a qualified service technician.
Air leakage at the bottom of the tool. 1. The screws are loose.
2. The O-rings or the bumper are worn or damaged.		 1. Tighten the screws.
2. Inspect and replace the O-rings or the bumper.
Have the tool serviced by a qualified service technician.
Air leakage between the bottom and the cylinder cap. 1. The screws are loose.
2. The O-rings or the seals are worn or damaged.		 1. Tighten the screws.
2. Inspect and replace the O-rings or the seals.
Have the tool serviced by a qualified service technician.
The nails are being driven too deep. 1. The bumper is worn.
2. The air pressure is too high.		 1. Replace the bumper.
2. Adjust the air pressure.
The tool does not operate properly - it does not drive the nails or operates sluggishly. 1. The air supply is inadequate.
2. Lubrication is inadequate.
3. The O-rings or seals are worn or damaged.
4. The exhaust port in the cylinder head is blocked.		 1. Verify that the air supply is adequate.
2. Pour up to 6 drops of oil into the air inlet.
3. Inspect and replace O-rings or seals..
4. Replace the damaged internal parts.
Have the tool serviced by a qualified service technician
The tool skips nails. 1. The bumper is worn or the spring is damaged.
2. There is dirt in the front plate.
3. Nails cannot move freely in the magazine because of dirt or damage.
4. The O-ring on the piston is worn or dry or there is not enough lubrication.
5. The cylinder cover seal Is leaking.		 1. Replace the bumper or pusher spring.
2. Open the drive channel on the front plate.
3. Open the magazine.
4. Replace the O-ring.
5. Replace the sealing washer.
Have the tool serviced by a qualified service technician
see section “Clearing a jammed nail."
The tool jams. 1. Improper nails are used, or nails are damaged.
2. The driver guide is damaged or worn.
3. The magazine screw is loose.
4. There is dirt in magazine.		 1. Use the proper nail.
2. Inspect and replace the driver guide.
3. Tighten the magazine.
4. Open the magazine.
Air exhaust is being directed towards the operator. The direction of the exhaust port requires adjustment. Direct the exhaust port away from the operator.
