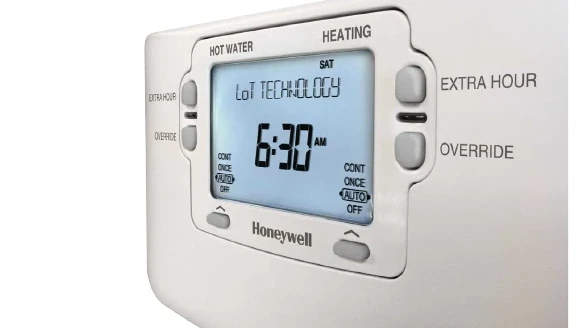

The Honeywell ST9400C programmer provides timing control for central heating and hot water systems. It allows users to set ON and OFF periods to match their lifestyle.
Operating Modes:
- OFF: Heating remains off.
- AUTO: Heating switches ON/OFF based on the program.
- ONCE: Heating turns ON at the first ON time and OFF at the last OFF time.
- CONT: Heating remains continuously ON.
Override and Extra Hour Functions:
- OVERRIDE: Temporarily turns heating ON/OFF until the next programmed time.
- EXTRA HOUR: Extends heating for 1, 2, or 3 extra hours.
Troubleshooting and error codes
| Symptom | Possible Cause | Remedy |
|---|---|---|
| ST9400C has a blank LCD display | No power to the heating system | Check that there is power to the heating system |
| ST9400C has a blank LCD display | Fault in ST9400C | Call Installer |
| ST9400C indicates that Heating and/or Hot Water are ON, but radiators are cold and/ or taps are running with cold water. | Temperature controls are switched off or set too low | Check that the temperature controls in the system are set to appropriate levels |
| ST9400C indicates that Heating and/or Hot Water are ON, but radiators are cold and/ or taps are running with cold water. | Boiler or other system controls have malfunctioned | Call Installer |
| ST9400C shows the message 'INTERNAL FAULT' | Fault in ST9400C | Call Installer |
| When the slider is moved to the HOT WATER position, the display shows ‘NOT VALID' | ST9400C has been configured as a Mini-Programmer | Check the Contents page of this booklet or the 'Configuration & Service Data' section (page 18) to see if your ST9400C has been configured as a Mini-Programmer. Call Installer to check if this is correct for your heating system. |
