Manual for ETRS

Manual for ETRS

Brand: Zenza Bronica

Category: Cameras

Document Type:

Language: EN

Uploaded: Aug. 9, 2025, 11:44 p.m.

Warranty Information

No specific warranty period is mentioned in this section.

Basic Operation of the Zenza Bronica ETRS

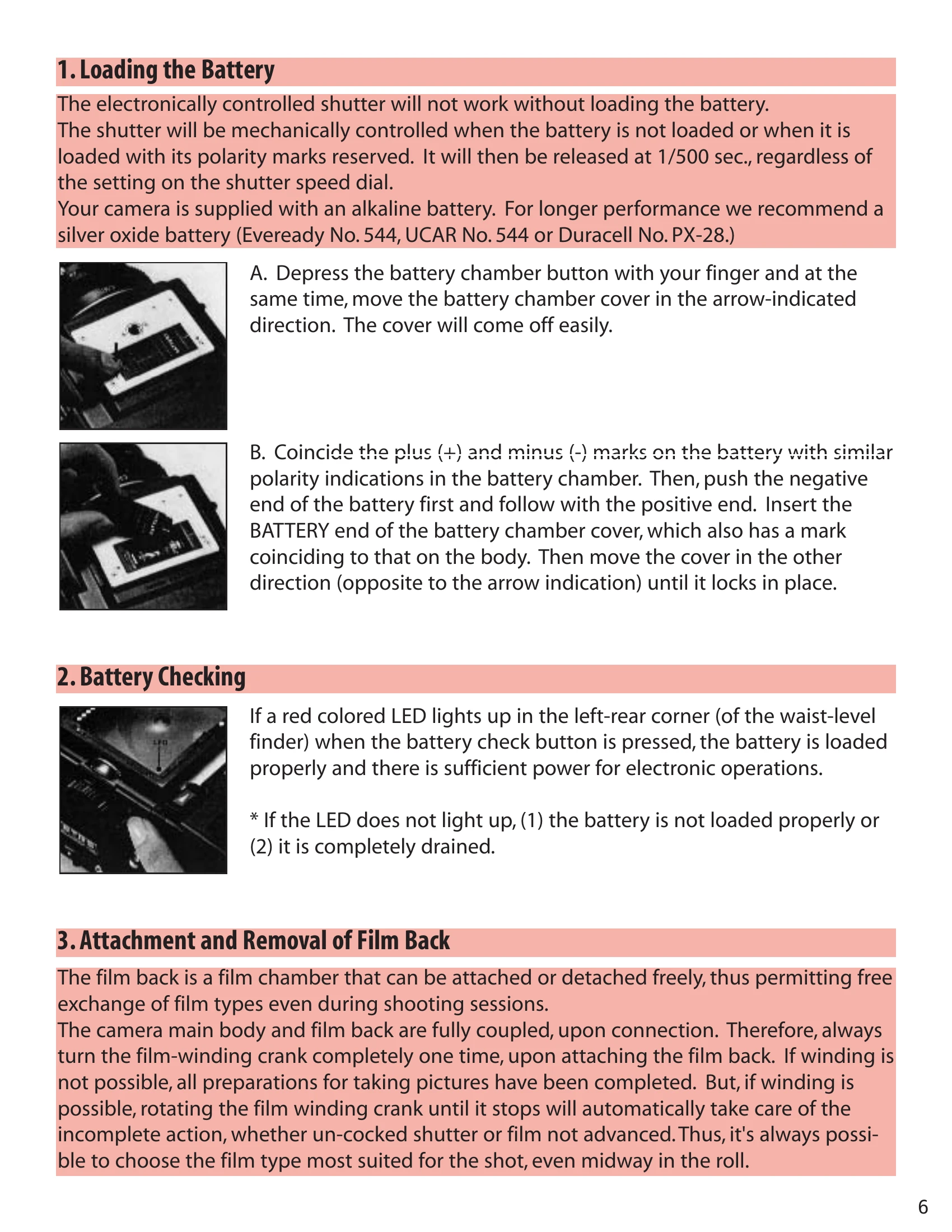

  1. Loading the Battery: Ensure the camera is powered by inserting a 6-volt silver oxide or alkaline battery. Check the battery status via the LED indicator.
  2. Attaching/Removing Film Backs: The film back is interchangeable. Ensure the dark slide is removed before attaching the back. Load film into the film holder, draw out the leader, and wind the film until the first frame is ready.
  3. Attaching/Removing Lenses: The shutter must be cocked to exchange lenses. Align the red dots and twist to lock the lens in place.
  4. Setting Shutter Speed and Aperture: Adjust the shutter speed dial and aperture ring on the lens according to your exposure needs.
  5. Focusing: Use the focusing ring while observing the split-image or microprism in the viewfinder. The distance and depth of field scales on the lens also aid focusing.
  6. Taking a Picture: Depress the shutter release button smoothly. A red LED in the viewfinder confirms shutter closure.
  7. Film Advance: Rotate the film winding crank to advance the film and cock the shutter for the next shot.
  8. Unloading Film: After the last exposure, the crank will turn freely. Continue winding to take up the film and leader paper, then open the back to remove the film holder.

Troubleshooting and error codes

Problem Possible Cause Solution
Shutter cannot be released Shutter release button is locked Unlock the shutter release button.
Dark slide is inserted Remove the dark slide.
Film winding crank not rotated fully Rotate the film winding crank until it stops.
Shutter is not cocked Cock the shutter by advancing the film.
Lens not properly attached Re-attach the lens securely.
Lens release button being depressed Release the lens release button.
All frames exposed Unload the film.
Battery not working Battery not loaded properly or drained Check battery insertion and replace if necessary.
Film not advancing Film holder not inserted properly Re-insert the film holder correctly.
Multiple exposure lever engaged Return the multiple exposure lever to its upright position.
