Manual for T 803 V

Manual for T 803 V

Brand: ZANUSSI

Category: Washing Machine

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:55 p.m.

Warranty Information

None

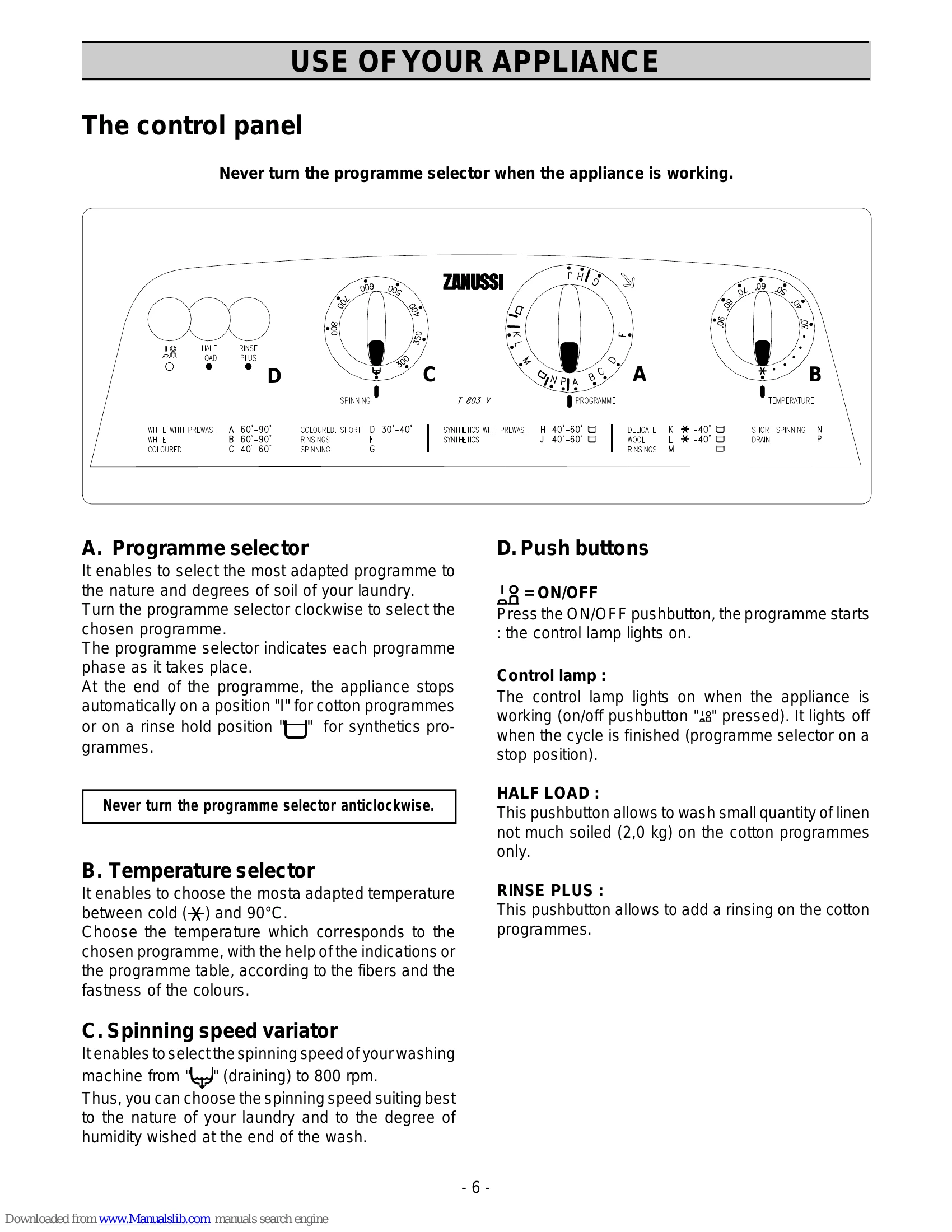

  • Loading Laundry: Open lid, press button A to open drum flaps, load laundry, close drum and lid.
  • Adding Detergent: Use compartment (1) for prewash (optional) and compartment (2) for main wash. Add softener to compartment (3).
  • Program Selection: Turn the programme selector clockwise to choose the desired program.
  • Temperature & Spin Speed: Select temperature using the temperature selector and spin speed using the spinning speed variator.
  • Starting: Press the ON/OFF button.
  • End of Cycle: Machine stops automatically. For synthetics, a rinse hold may occur. Finish with short spin (N) or drain (P) if needed.
  • After Use: Press ON/OFF, unplug, turn off water tap.

Troubleshooting and error codes

Problems Solutions
The wash results are not as usual Check that : ■ was the wrong quantity or the wrong detergent added ? Insufficient detergent leads to grey washes and scale deposits in the machine. Check the quantities more exactly. ■were special stains pre-treated ? ■were programme and temperature correctly chosen ?
The washing cycle is very much too long. Check that : ■the water pression is sufficient. ■the pump filter is not obstructed. ■ there has not been a power breakdown.
The washing machine stops during a washing cycle. Check that : ■the water pression is sufficient. ■the pump filter is not obstructed. ■ the mains fuse is intact. ■ there is not a rinse hold ending a washing programme (see the programmes chart page 8).
The machine does not start up Check that : ■the mains fuse is intact. ■the appliance is plugged in. ■the lid is firmly shut. the programme selector dial is correctly positioned. ■the beginning of the programme has been ordered (on/off pushbutton pushed on). ■there has not been a power breakdown.
The machine does not drain and/or does not spin Check that : ■the drain hose is not squashed or bent. ■ the drain filter is not clogged.
The machine does not fill Check that : ■the inlet water hose is opened and the water pression is sufficient. ■the lid of the appliance is closed. ■there has not been a breakwater.
The machine vibrates or is too noisy Check that : ■all the transit bolts and packing have been removed. ■ all the feet resting firmly on the ground, the lock nuts have been secrured. ■the machine does not touch something. ■the load is sufficent.
The machine empties as it fills Check that : ■the end of the drain hose is not too low.
There is water on the floor Check that : ■there is not too much detergent or unsuitable detergent. The formation of foam can cause water leaks. ■one of the detergent dispenser is not obstructed. ■ the drain hose is well hanged. ■ if one of the joints or the tap leaking? it is not always easy to see as the leak often runs along the hose. ■ is the drain filter cover properly closed ?
Softener detergent flows out the overflow orifice Check that : ■you have respected the adviced quantities. ■check that the siphons located at the back of the detergent dispenser are not obstructed.
