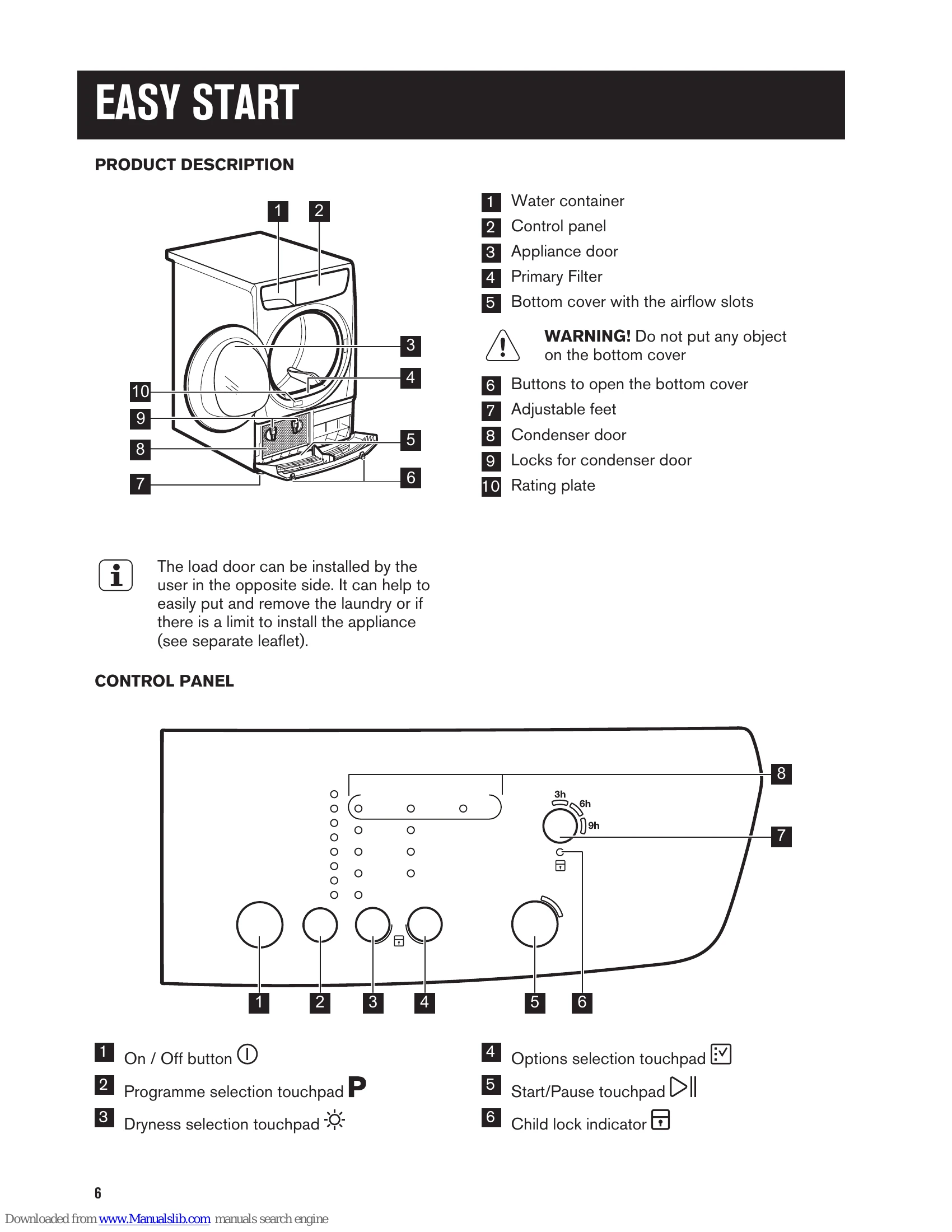

EASY START

PRODUCT DESCRIPTION

1 Water container

2 Control panel

3 Appliance door

4 Primary Filter

5 Bottom cover with the airflow slots

6 Buttons to open the bottom cover

7 Adjustable feet

8 Condenser door

9 Locks for condenser door

10 Rating plate

CONTROL PANEL

1 On / Off button

2 Programme selection touchpad

3 Dryness selection touchpad

4 Options selection touchpad

5 Start/Pause touchpad

6 Child lock indicator

7 Delay touchpad

8 Indicators: Filter, Condenser, Tank

See programme table for load sizes, drying levels, and fabric types.

DRYNESS: Adjusts drying level (Extra Dry, Strong Dry, Cupboard Dry, Iron Dry).

ANTICREASE 90 MIN: Extends anticrease phase.

TIME 60 MIN: Extends Time 30 min programme.

DELICATE: Low temperature drying for delicate fabrics.

Includes On/Off, Programme, Dryness, Options, Start/Pause, and Delay touchpads.

Prevents children from operating the appliance.

START A PROGRAMME WITHOUT DELAY: Load, select programme/options, press Start/Pause.

STARTING THE PROGRAMME WITH DELAY START: Select programme/options, set delay time, press Start/Pause.

CHANGE A PROGRAMME: Deactivate, activate, and set new programme.

AT THE END OF THE PROGRAMME: Acoustic signal, indicators on, crease guard phase.

Problem	Possible solution
You cannot activate the appliance.	Make sure that the mains plug is connected to the mains socket. Check fuse in fuse box (domestic installation).
The programme does not start.	Press Start/Pause.
The appliance door does not close.	Make sure that the appliance door is closed. Make sure that the installation of the filter is correct. Make sure that the laundry does not catch between the appliance door and the rubber seal.
The appliance stops during operation.	Make sure that the water container is empty. Press Start/Pause to start the programme again.
Drying cycle lasts an unusually long time.¹⁾	Make sure that the weight of the laundry is applicable to the duration of the programme. Make sure that the filter is clean. The laundry is too wet. Spin the laundry in the washing machine again. Make sure that the room temperature is not too warm. Set the Time Drying or the Extra Dry programme.
