Brand: ZANUSSI
Category: Tumble Dryer
Document Type: Manual
Language: EN
Manual for TD 4113 W
Uploaded: Nov. 21, 2025, 6:36 p.m.
Warranty Information
The standard guarantee is for 12 months from the date of purchase, covering faulty workmanship or materials.

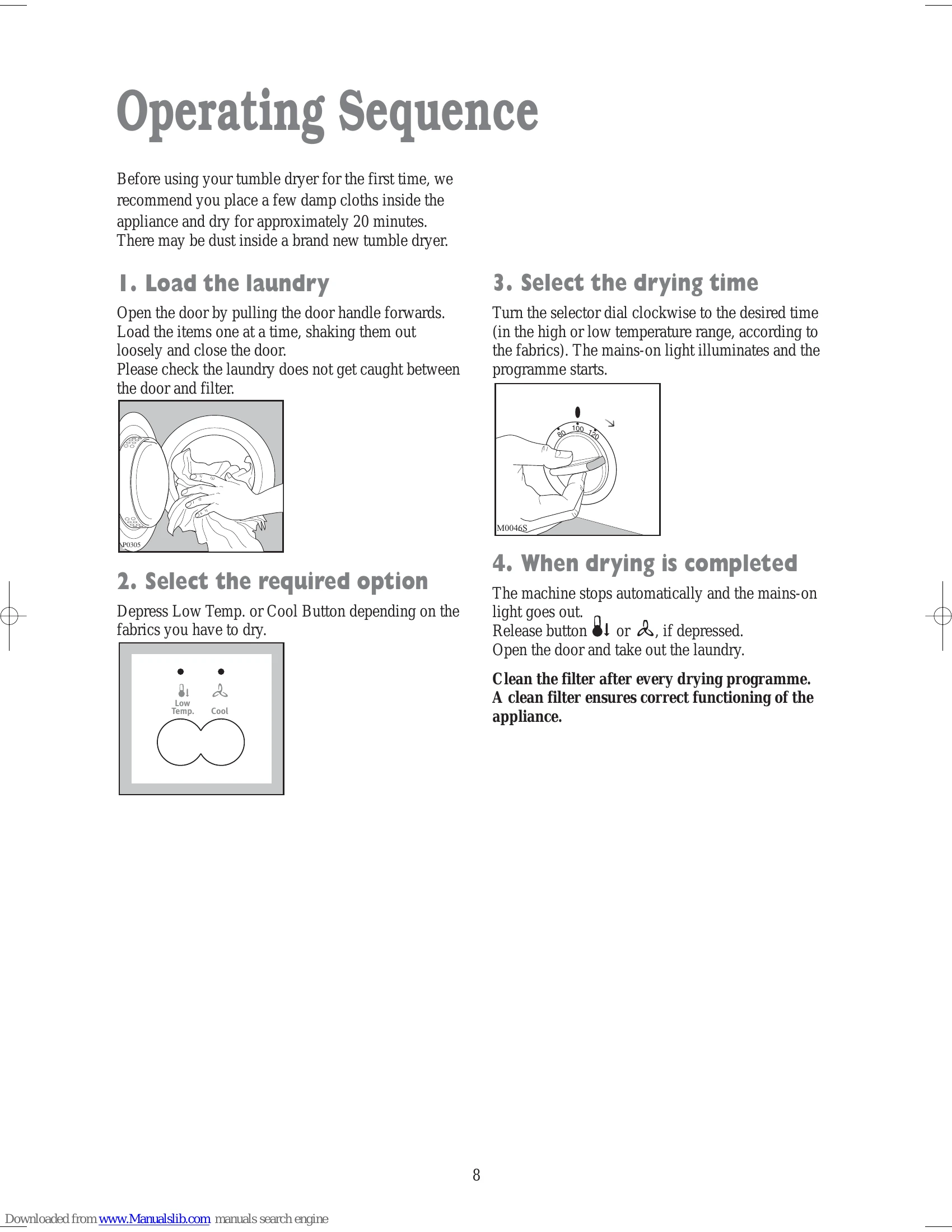

Operating Sequence
1. Load the laundry: Open the door, load items one at a time, shaking them out loosely, and close the door. Ensure no laundry is caught between the door and filter.
2. Select the required option: Press 'Low Temp' or 'Cool' button as needed.
3. Select the drying time: Turn the selector dial clockwise to the desired time. The mains-on light will illuminate and the programme will start.
4. When drying is completed: The machine stops automatically, and the mains-on light goes out. Release any depressed buttons. Open the door and remove the laundry. Clean the filter after every drying programme.
Troubleshooting and error codes
| Symptom | Possible causes |
| The tumble dryer does not start | • The door has not been closed. • The plug is not properly inserted in the power socket. • There is no current at the socket • The main fuse or the fuse in the plug has blown. • A drying time has not been selected. |
| Drying takes too long or laundry is not dry enough. | • The laundry has not been spun properly. • The filter is clogged up. • The room temperature is too high. • The selected time or sector was not suitable for the laundry • There is too much laundry inside the appliance. • The dryer is not correctly installed. • The Low Temperature or Cool Tumble Button has been depressed. |
