Brand: ZANUSSI
Category: Refrigerator
Document Type: Manual
Language: EN
Manual for ZRB23200XA
Uploaded: Nov. 21, 2025, 6:22 p.m.
Warranty Information
Refer to warranty card for details.

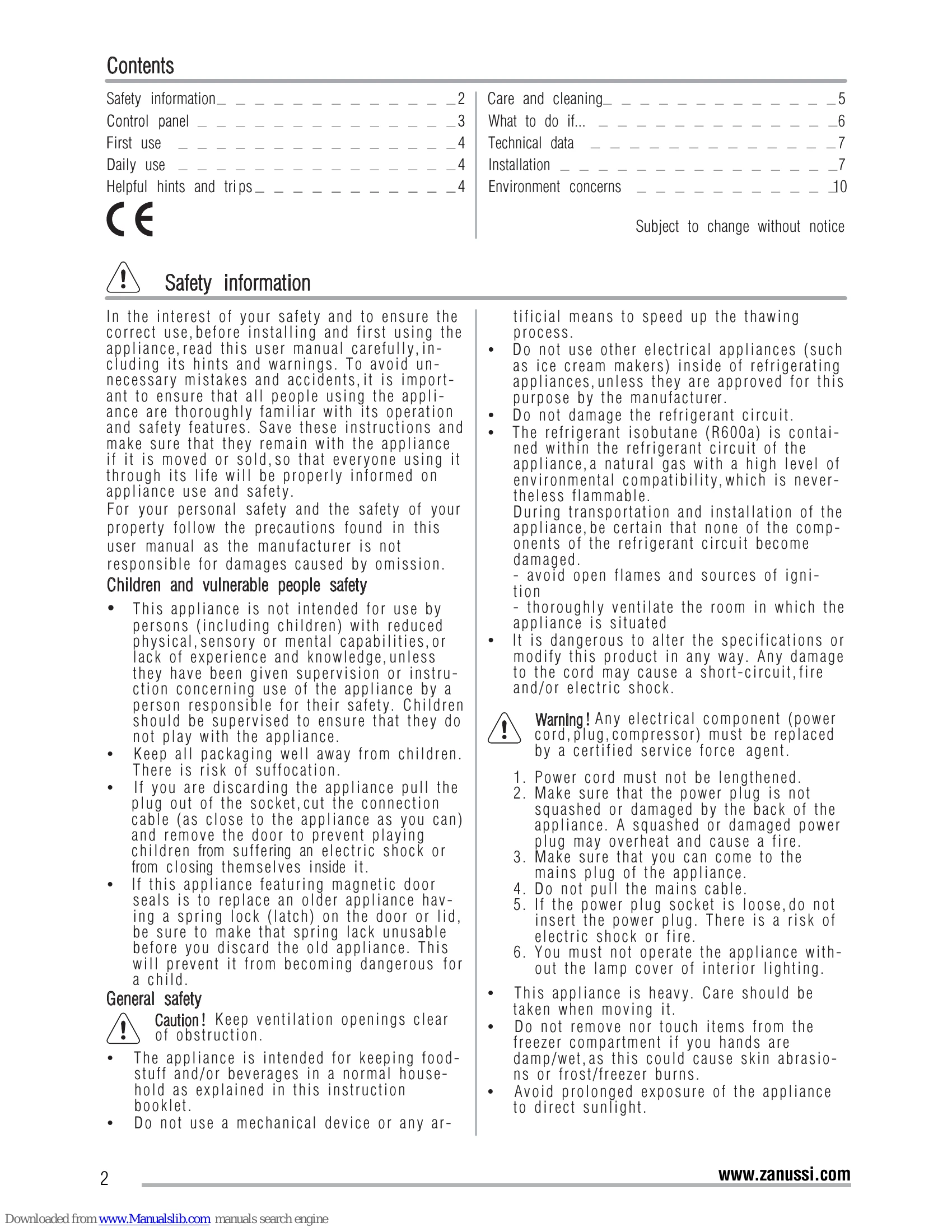

Contents
Safety information
- General safety precautions
- Children and vulnerable people safety
Control Panel
- Temperature control slider
- Setting the thermostat
First use
- Cleaning the interior
Daily use
- Accessories (movable shelves, door shelves, vegetable drawer)
- Freezing fresh food
- Storing frozen food
- Thawing
- Ice-cube production
Helpful hints and tips
- Normal operating sounds
- Hints for energy saving
- Hints for fresh food refrigeration
- Hints for refrigeration
- Hints for freezing
- Hints for storage of frozen food
Care and cleaning
- Cleaning procedures
What to do if...
- Troubleshooting table for common problems
Technical data
- Dimensions
- Rising Time
Installation
- Safety information before installation
- Positioning guidelines
- Climate class and ambient temperature
- Location considerations
- Electrical connection instructions
- Levelling the appliance
- Door reversibility
Environmental concerns
- Recycling information
- Disposal of the appliance
Troubleshooting and error codes
| Problem | Possible cause | Solution |
|---|---|---|
| Appliance dose not work | Appliance is not switch on | Switch on the appliance |
| Mains plug is not plugged in or is loose | Insert mains plug. | |
| Fuse has blown or is defective. | Check fuse, replace if necessary. | |
| Socket is defective. | Mains malfunctions are to be corrected by an electrician. | |
| Appliance cools too much | Temperature is set too cold. | Turn the temperature regulator to a warmer setting temporarily. |
| Temperature is not properly adjusted. | Please look in the initial Control Panel section. | |
| The food is too warm. | Door was open for an extended period. | Open the door only as long as necessary. |
| A large quantity of warm food was placed in the appliance within the last 24 hours. | Turn the temperature regulator to a colder setting temporarily. | |
| The appliance is near a heat source. | Please look in the installation location section. | |
| Heavy build-up of frost, possibly also on the door | Door seal is not air-tight (possibly after reversing the door). | Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly. |
| Interior light does not work | Light bulb is defective. | Please look in the replacing lamp section. |
| Unusual noises | Appliance is not level. | Re-adjust the feet. |
| The appliance is touching the wall or other objects. | Move the appliance slightly. | |
| A component,e.g. a pipe,on the rear of the appliance is touching another part of the appliance or the wall. | If necessary, carefully move the component out of the way. | |
| The compressor does not start immediately after changing the temperature setting. | This is normal, no error has occurred. | The compressor will start after a period of time. |
