Brand: ZANUSSI
Category: Refrigerator
Document Type: Manual
Language: EN

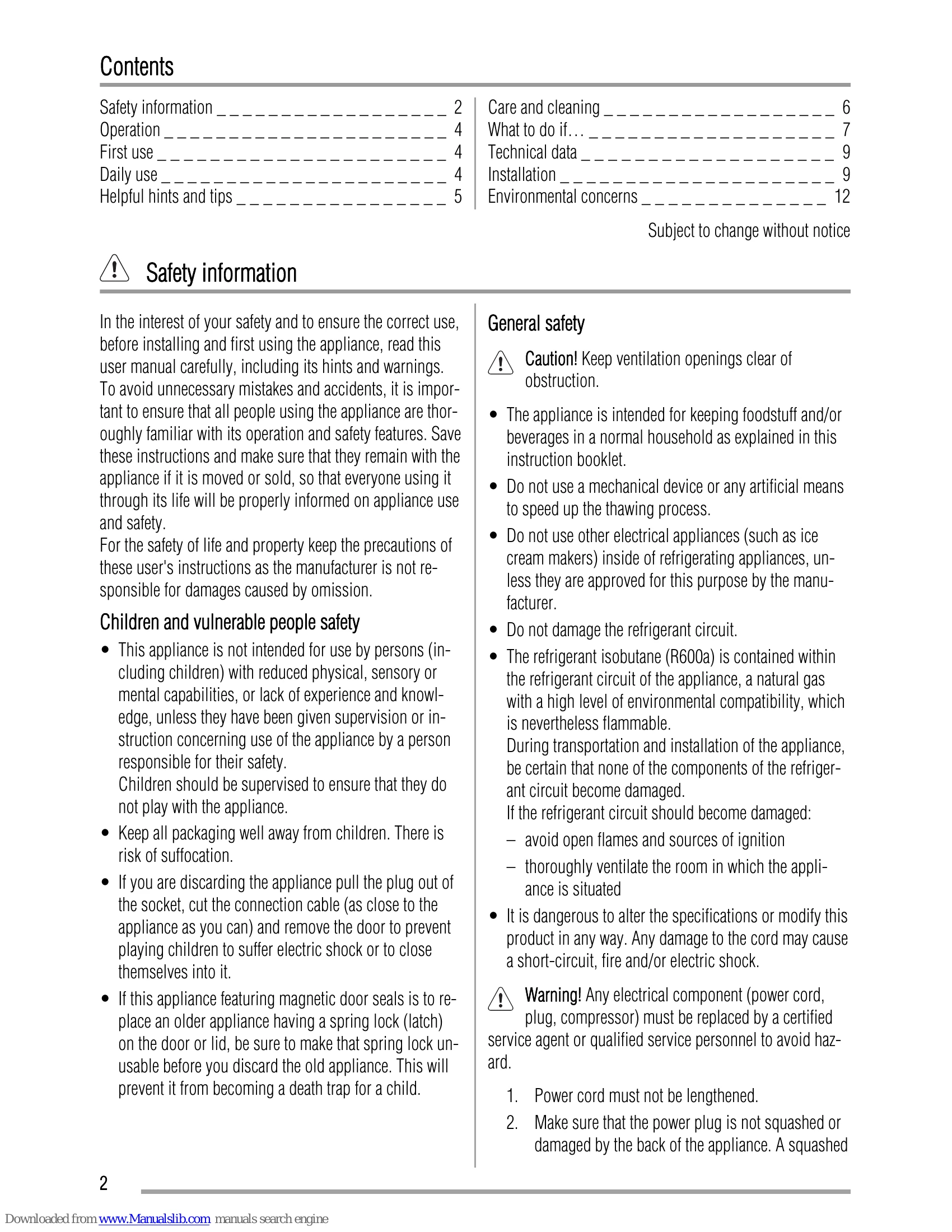

Manual for ZBB3294
Uploaded: Nov. 21, 2025, 6:39 p.m.
Operation
Switching on
Insert the plug into the wall socket. Turn the Temperature regulator clockwise to a medium setting.
Switching off
To turn off the appliance, turn the Temperature regulator to the "O" position.
Temperature regulation
The temperature is automatically regulated. To operate the appliance, proceed as follows:
- turn the Temperature regulator toward lower settings to obtain the minimum coldness.
- turn the Temperature regulator toward higher settings to obtain the maximum coldness.
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.
Daily use
Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. To freeze fresh foods it is not necessary to change the medium setting. However, for a faster freezing operation, turn the temperature regulator toward higher settings to obtain the maximum coldness.
Important! In this condition, the refrigerator compartment temperature might drop below 0°C. If this occurs reset the temperature regulator to a warmer setting.
Storage of frozen food
When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings. If large quantities of food are to be stored, remove all drawers and baskets from appliance and place food on cooling shelves to obtain the best performance.
Warning! Make sure that foods do not exceed the load limit stated on the side of the upper section (where applicable)
Troubleshooting and error codes
| Problem | Possible cause | Solution |
|---|---|---|
| The appliance does not operate. | The appliance is switched off. | Switch on the appliance. |
| The appliance does not operate. | The mains plug is not connected to the mains socket correctly. | Connect the mains plug to the mains socket correctly. |
| The appliance does not operate. | The appliance has no power. There is no voltage in the mains socket. | Connect a different electrical appliance to the mains socket. Contact a qualified electrician. |
| The lamp does not operate. | The lamp is in stand-by. | Close and open the door. |
| The lamp does not operate. | The lamp is defective. | Refer to "Replacing the lamp". |
| The compressor operates continually. | The temperature is not set correctly. | Set a higher temperature. |
| The compressor operates continually. | The door is not closed correctly. | Refer to "Closing the door". |
| The compressor operates continually. | The door has been opened too frequently. | Do not keep the door open longer than necessary. |
| The compressor operates continually. | The product temperature is too high. | Let the product temperature decrease to room temperature before storage. |
| Water flows on the rear plate of the refrigerator. | During the automatic defrosting process, frost defrosts on the rear plate. | This is correct. |
| Water flows into the refrigerator. | The water outlet is clogged. | Clean the water outlet. |
| Water flows into the refrigerator. | Products prevent that water flows into the water collector. | Make sure that products do not touch the rear plate. |
| Water flows on the ground. | The melting water outlet does not flow in the evaporative tray above the compressor. | Attach the melting water outlet to the evaporative tray. |
| The temperature in the appliance is too low. | The temperature regulator is not set correctly. | Set a higher temperature. |
| The temperature in the appliance is too high. | The temperature regulator is not set correctly. | Set a lower temperature. |
| The temperature in the appliance is too high. | The door is not closed correctly. | Refer to "Closing the door". |
| The temperature in the appliance is too high. | The product temperature is too high. | Let the product temperature decrease to room temperature before storage. |
| The temperature in the appliance is too high. | Many products are stored at the same time. | Store less products at the same time. |
| The temperature in the appliance is too high. | There is no cold air circulation in the appliance. | Make sure that there is cold air circulation in the appliance. |
