Brand: ZANUSSI
Category: Oven
Document Type: Spec Sheet
Language: EN

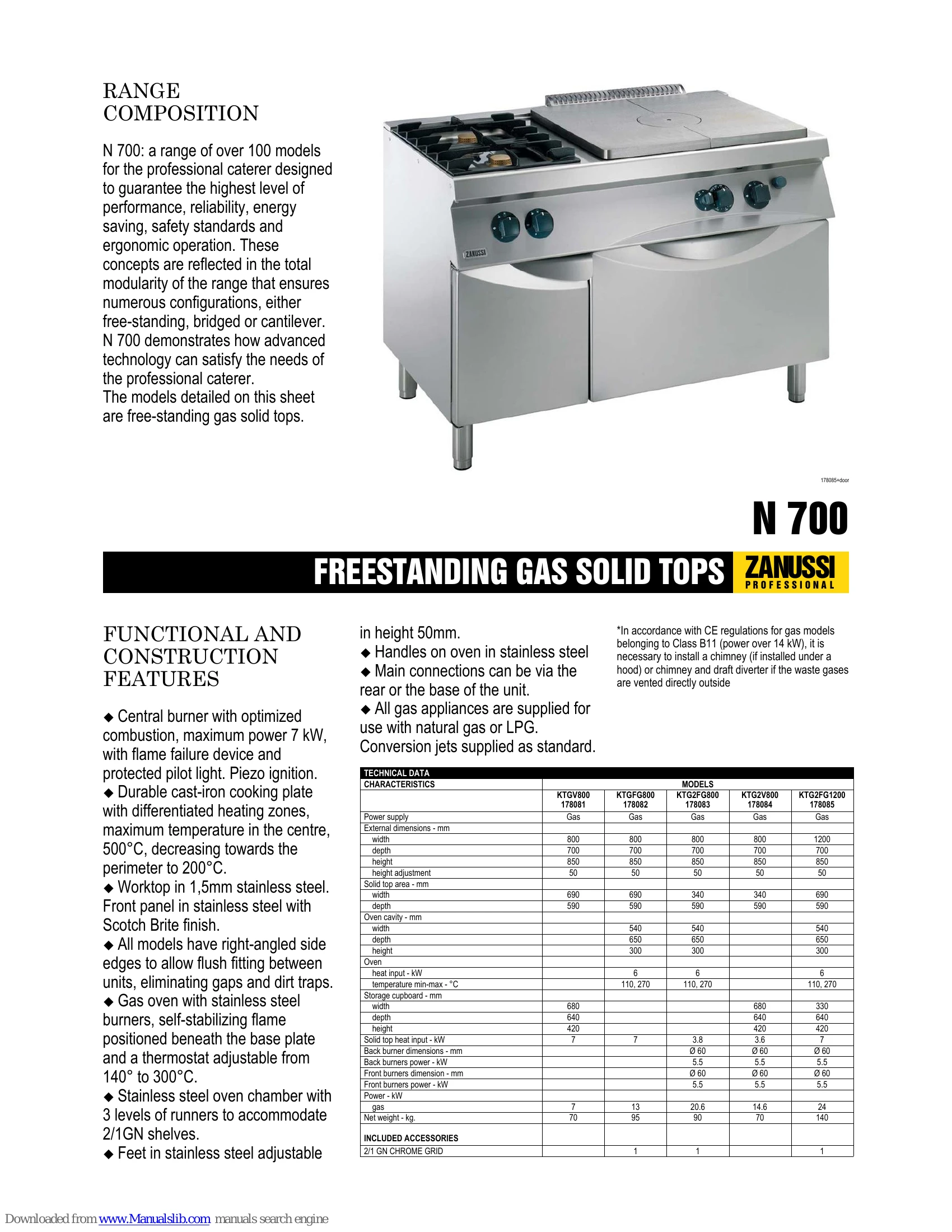

Spec Sheet for N 700
Uploaded: Nov. 21, 2025, 6:06 p.m.
Central Burner:
Optimized combustion, 7 kW max power, with flame failure device and protected pilot light. Piezo ignition.
Cooking Plate:
Durable cast-iron with differentiated heating zones (center 500°C, perimeter 200°C).
Worktop & Construction:
1.5mm stainless steel worktop. Front panel in stainless steel with Scotch Brite finish. Right-angled side edges for flush fitting.
Gas Oven:
Stainless steel burners, self-stabilizing flame, thermostat adjustable from 140° to 300°C. Stainless steel chamber with 3 levels for 2/1 GN shelves.
General Features:
Handles in stainless steel. Main connections via rear or base. Supplied for natural gas or LPG with conversion jets.
Troubleshooting and error codes
| TECHNICAL DATA | MODELS | KTGV800 178081 |
KTGFG800 178082 |
KTG2FG800 178083 |
KTG2V800 178084 |
KTG2FG1200 178085 |
|---|---|---|---|---|---|---|
| Power supply | Gas | Gas | Gas | Gas | Gas | Gas |
| External dimensions - mm | width | 800 | 800 | 800 | 800 | 1200 |
| depth | 700 | 700 | 700 | 700 | 700 | |
| height | 850 | 850 | 850 | 850 | 850 | |
| height adjustment | 50 | 50 | 50 | 50 | 50 | |
| Solid top area - mm | width | 690 | 690 | 340 | 340 | 690 |
| depth | 590 | 590 | 590 | 590 | 590 | |
| Oven cavity - mm | width | 540 | 540 | 540 | 540 | |
| depth | 650 | 650 | 650 | 650 | ||
| height | 300 | 300 | 300 | 300 | ||
| Oven | heat input - kW | 6 | 6 | 6 | ||
| temperature min-max - °C | 110, 270 | 110, 270 | 110, 270 | |||
| Storage cupboard - mm | width | 680 | 680 | 330 | ||
| depth | 640 | 640 | 640 | |||
| height | 420 | 420 | 420 | |||
| Solid top heat input - kW | 7 | 7 | 3.8 | 3.6 | 7 | |
| Back burner dimensions - mm | Ø 60 | Ø 60 | Ø 60 | |||
| Back burners power - kW | 5.5 | 5.5 | 5.5 | |||
| Front burners dimension - mm | Ø 60 | Ø 60 | Ø 60 | |||
| Front burners power - kW | 5.5 | 5.5 | 5.5 | |||
| Power - kW | gas | 7 | 13 | 20.6 | 14.6 | 24 |
| Net weight - kg. | 70 | 95 | 90 | 70 | 140 | |
| INCLUDED ACCESSORIES | 2/1 GN CHROME GRID | 1 | 1 | 1 | 1 | 1 |
