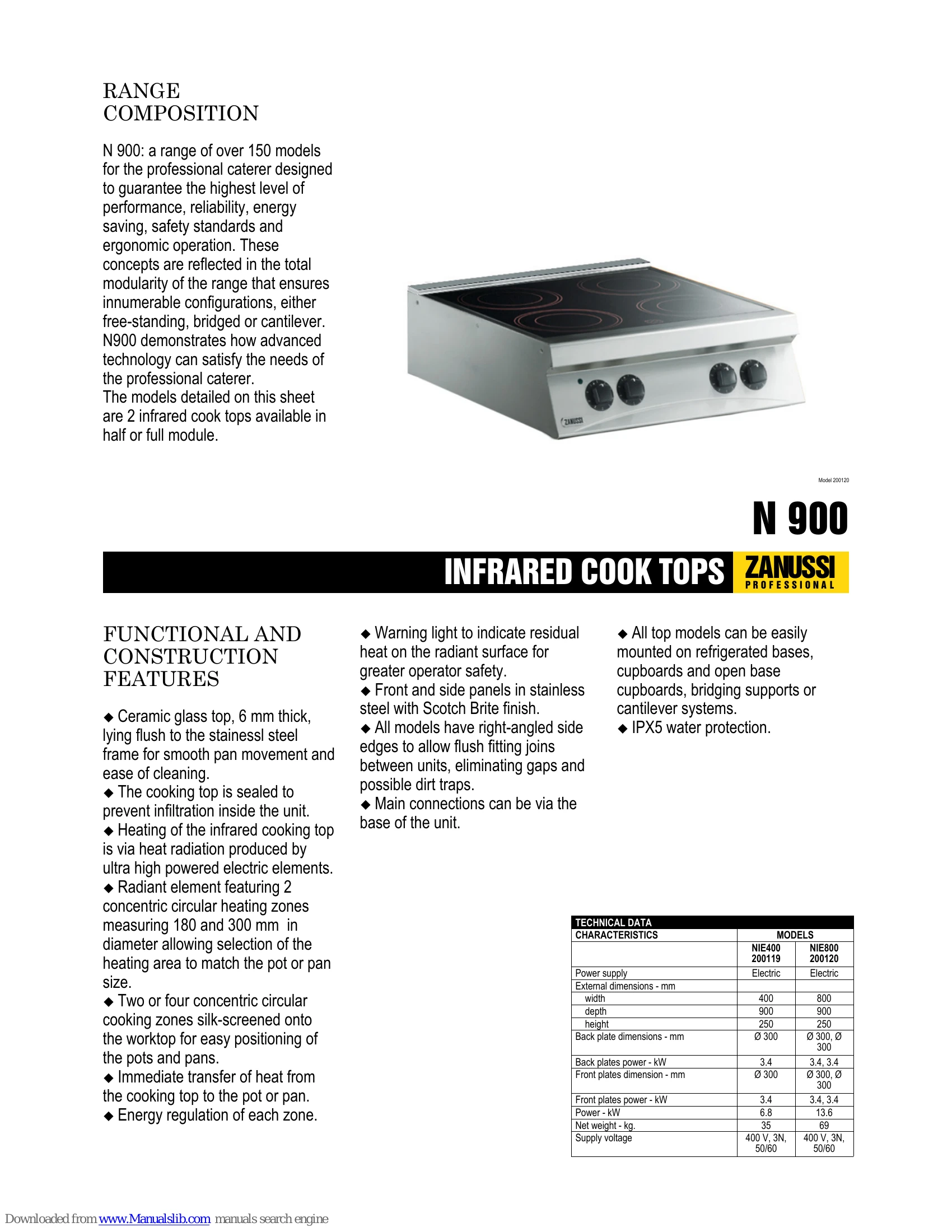

Spec Sheet for N 900

Spec Sheet for N 900

Brand: ZANUSSI

Category: Hob

Document Type: Spec Sheet

Language: EN

Uploaded: Nov. 21, 2025, 8:42 p.m.

Manual Publish Date: 2009-06-19

N 900: Advanced Technology for Professional Caterers
The N 900 range offers over 150 modular models designed for professional caterers, emphasizing performance, reliability, energy saving, safety, and ergonomics.

Infrared Cook Tops: Efficiency and Safety
This sheet details 2-zone infrared cooktops in half or full modules. Key features include:
  • 6 mm thick ceramic glass top flush with stainless steel for easy cleaning and smooth pan movement.
  • Sealed cooking top to prevent infiltration.
  • Ultra high-powered electric elements for heat radiation.
  • Dual concentric heating zones (180 mm and 300 mm diameter) for matching pan size.
  • Silk-screened zone markings for precise pot placement.
  • Immediate heat transfer for cooking efficiency.
  • Individual energy regulation for each zone.
  • Residual heat warning lights for operator safety.
  • Stainless steel front and side panels with Scotch Brite finish.
  • Right-angled side edges for seamless integration with other units.
  • Main connections accessible from the base.
  • IPX5 water protection.
  • All top models can be mounted on refrigerated bases, cupboards, open base cupboards, bridging supports, or cantilever systems.

Troubleshooting and error codes

CHARACTERISTICS NIE400 200119 NIE800 200120
Power supply Electric Electric
External dimensions - mm
width 400 800
depth 900 900
height 250 250
Back plate dimensions - mm Ø 300 Ø 300, Ø 300
Back plates power - kW 3.4 3.4, 3.4
Front plates dimension - mm Ø 300 Ø 300, Ø 300
Front plates power -kW 3.4 3.4, 3.4
Power - kW 6.8 13.6
Net weight - kg. 35 69
Supply voltage 400 V, 3N, 50/60 400 V, 3N, 50/60
