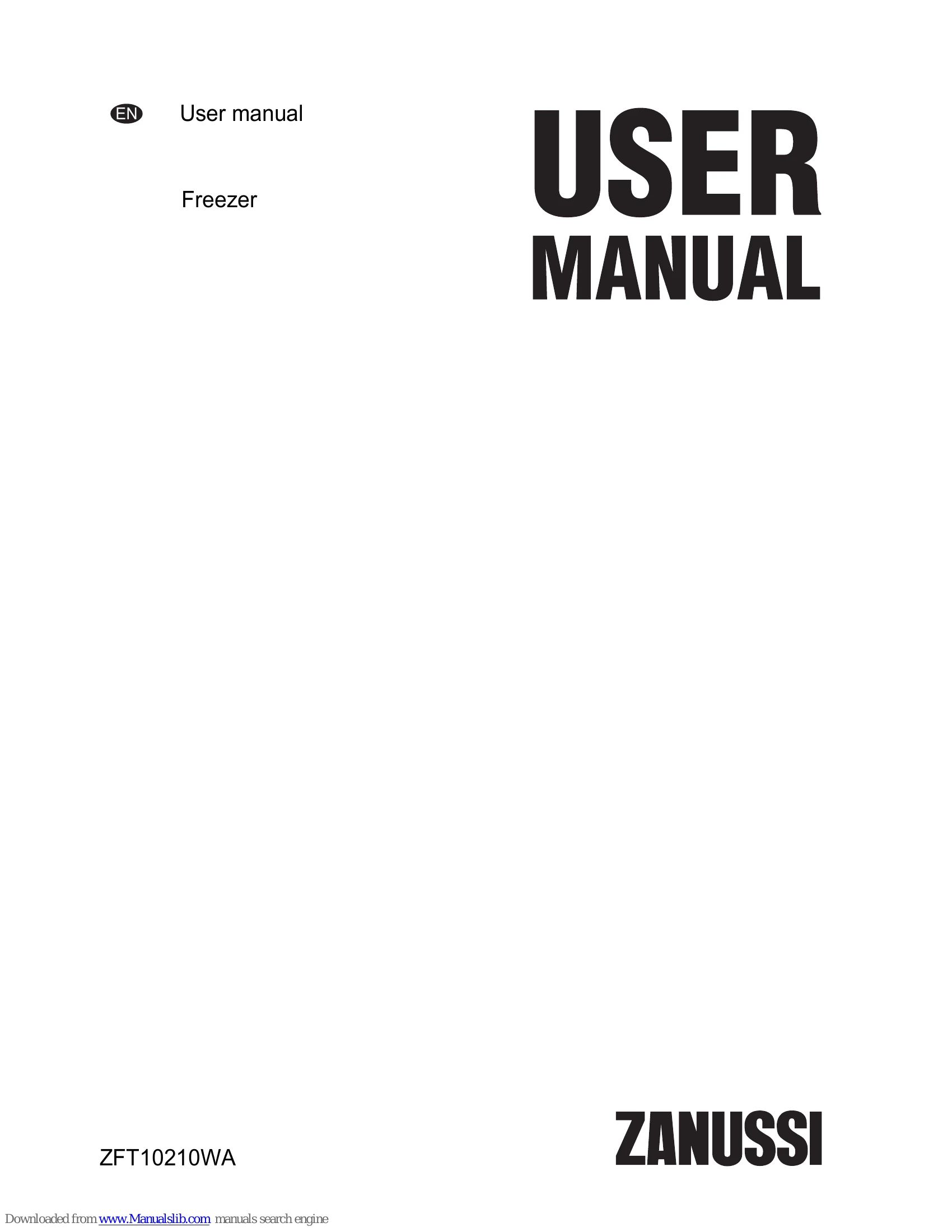

Manual for ZFT10210WA

Manual for ZFT10210WA

Brand: ZANUSSI

Category: Freezer

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:14 p.m.

Warranty Information

None

Switching On

  1. Allow appliance to stand for 4 hrs after installation.
  2. Insert plug into wall socket.
  3. Turn Temperature Regulator clockwise to a temperature lower than -16 °C.
  4. Green On/Off Indicator Light will light up, Red Alarm Indicator Light will blink.
  5. Green On/Off Light indicates appliance is on.
  6. Blinking Red Alarm Light indicates improper temperature; an intermittent sound can be heard, stop with Acoustic Signal Stop Switch.
  7. Initially, Red Alarm Light blinks until safe conservation temperature is reached.

Switching Off

  1. Turn Temperature Regulator to "O" position.
  2. Disconnect mains plug.

Temperature Regulation

Adjust via Temperature Regulator. Lower settings for minimum coldness, higher for maximum coldness. A medium setting is usually suitable.

Fast Freeze function

  1. Activate 2-3 seconds before adding >3-4 kg of fresh food. Yellow light illuminates.
  2. Deactivate by pressing switch for 2-3 seconds.
  3. Place food in freezing compartments.
  4. Switch off after food is frozen (approx. 24 hours).
  5. Move frozen food to storing compartments.

Troubleshooting and error codes

Problem Possible cause Solution
The appliance is noisy The appliance is not supported properly Check if the appliance stands stable (all the four feet should be on the floor)
The compressor operates continually The thermostatic control is set incorrectly Set a warmer temperature
Doors are not shut properly or do not close tightly Check if the doors close well and the gaskets are undamaged and clean
The door has been opened too frequently Do not leave the door open longer than necessary
Large quantities of food to be frozen were put in at the same time Wait some hours and then check the temperature again
Food placed in the appliance was too warm Allow food to cool to room temperature before storing
The room temperature is too high. Decrease the room temperature
There is too much frost and ice Products are not wrapped properly Wrap the products better
Doors are not shut properly or do not close tightly Check if the doors close well and the gaskets are undamaged and clean
The Temperature regulator may be set incorrectly Set a warmer temperature
It is too warm in the freezer Temperature regulator may be set incorrectly Set a lower temperature
The door does not close tightly or it is not shut properly Check if the door closes well and the gasket is undamaged and clean
Large quantities of food to be frozen were put in at the same time Insert smaller quantities of food to be frozen at any one time.
Food placed in the appliance was too warm Allow food to cool to room temperature before storing.
Products to be frozen are placed too closely to each other Place the products in a way so that cold air could circulate among them
It is too cold inside the freezer Temperature regulator may be set incorrectly Set a warmer temperature
The appliance does not work at all. Neither cooling nor lighting works Plug is not connected to the mains socket properly Connect the mains plug properly
Power does not reach the appliance Try connecting another electrical device to the power outlet
The appliance is not switched on Switch on the appliance
The appliance does not cool at all There is no voltage in the mains socket (try to connect another appliance into it) Call an electrician
Plug is not connected to the mains socket properly Connect the mains plug properly
There is no voltage in the mains socket (try to connect another appliance into it) Call an electrician
The appliance is not switched on Switch on the appliance
Temperature Regulator is not on Check the Temperature Regulator
Green indicator flashing Temperature sensor problem Call the service personnel
