Brand: ZANUSSI
Category: Dishwasher
Document Type: Manual
Language: EN

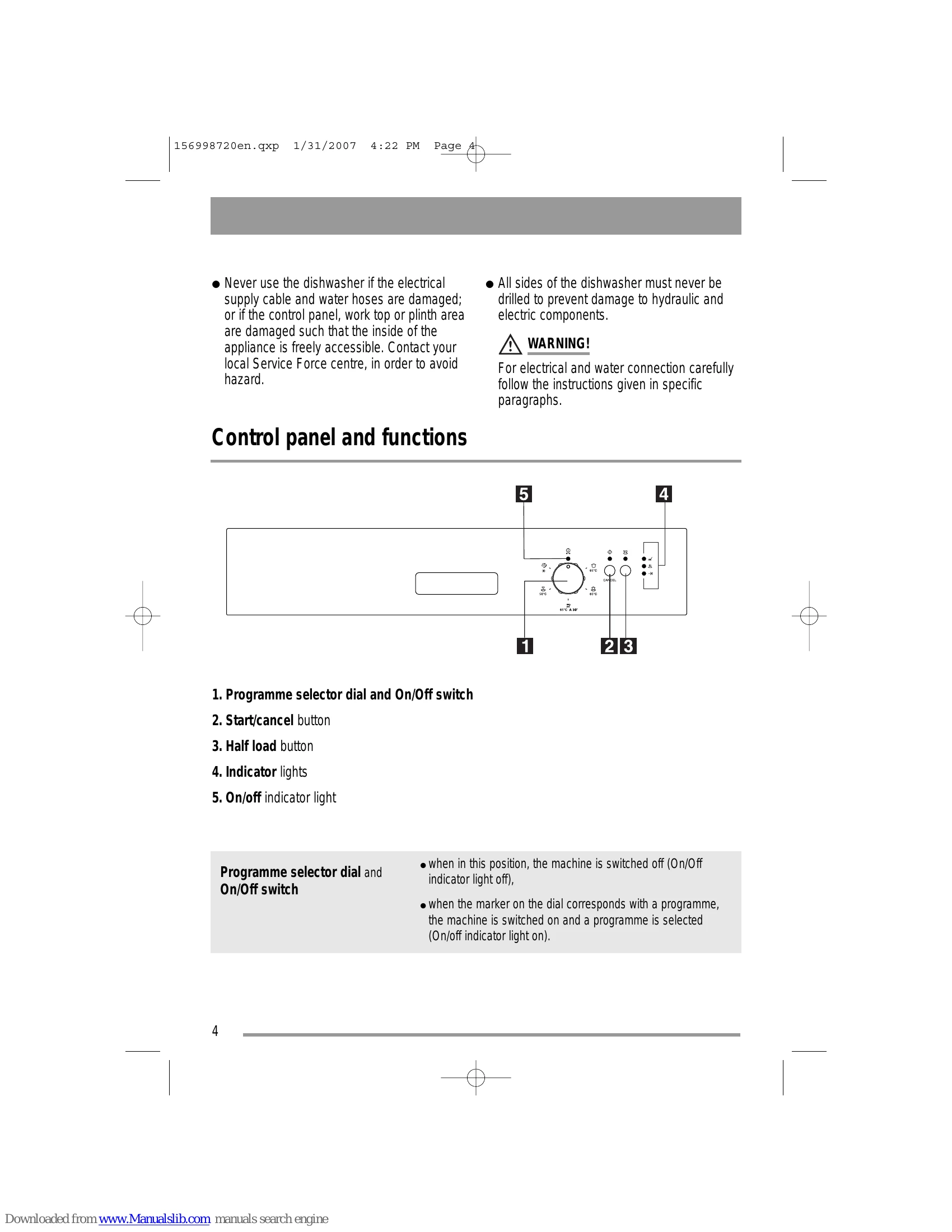

Manual for ZDI 100
Uploaded: Nov. 21, 2025, 8:41 p.m.
Manual Publish Date: 2007-01-31
Warranty Information
European Guarantee is personal to the original purchaser and subject to installation and usage conditions.
- Starting a wash programme: Select programme, press Start/Cancel.
- Cancelling a programme: Press and hold Start/Cancel until light off, then turn dial to Off.
- Loading cutlery and dishes: Remove food scraps, load items with openings downwards, ensure spray arms can rotate. Do not overload.
- Using detergent: Use dishwasher-specific detergent. Fill compartment A, and B if pre-wash is selected. For tablets, place in compartment A.
- Cleaning filters: Remove and clean filters A, B, and C under running water. Reassemble correctly.
Troubleshooting and error codes
| Fault code / malfunction | Possible cause | Solution |
|---|---|---|
| The dishwasher does not fill with water. | The water tap is blocked or furred with limescale. | Clean the water tap. |
| continuous flashing of the start/cancel indicator light | The water tap is turned off. | Turn the water tap on. |
| 1 flash of the "end of programme" indicator light | The filter (where present) in the threaded hose fitting at the water inlet valve is blocked. | Clean the filter in the threaded hose fitting. |
| The dishwasher will not drain. | The water inlet hose has not been correctly laid or it is bent or squashed. | Check the water inlet hose connection. |
| continuous flashing of the start/cancel indicator light | The sink spigot is blocked. | Clean out the sink spigot. |
| 2 flashes of the "end of programme" indicator light | The water drain hose has not been correctly laid or it is bent or squashed. | Check the water drain hose connection. |
| continuous flashing of the start/cancel indicator light | Anti-flood device has activated. | Close the water tap and contact your local Service Force Centre. |
| 3 flashes of the "end of programme" indicator light | The dishwasher door has not been properly closed. | Close the door |
| The programme does not start. | The main plug is not plugged in. | Insert the mains plug |
| The fuse has blown in the household fuse box. | Replace the fuse. | |
| Delay start has been selected. | If dishes are to be washed immediately, cancel the delay start. |
