Manual for YSP-2200

Manual for YSP-2200

Brand: YAMAHA

Category: Audio/Video

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 9:12 p.m.

Manual Publish Date: 2010-01-01

Warranty Information

None

\n

PREPARATION

\n
    \n
  • Getting started
    • \n

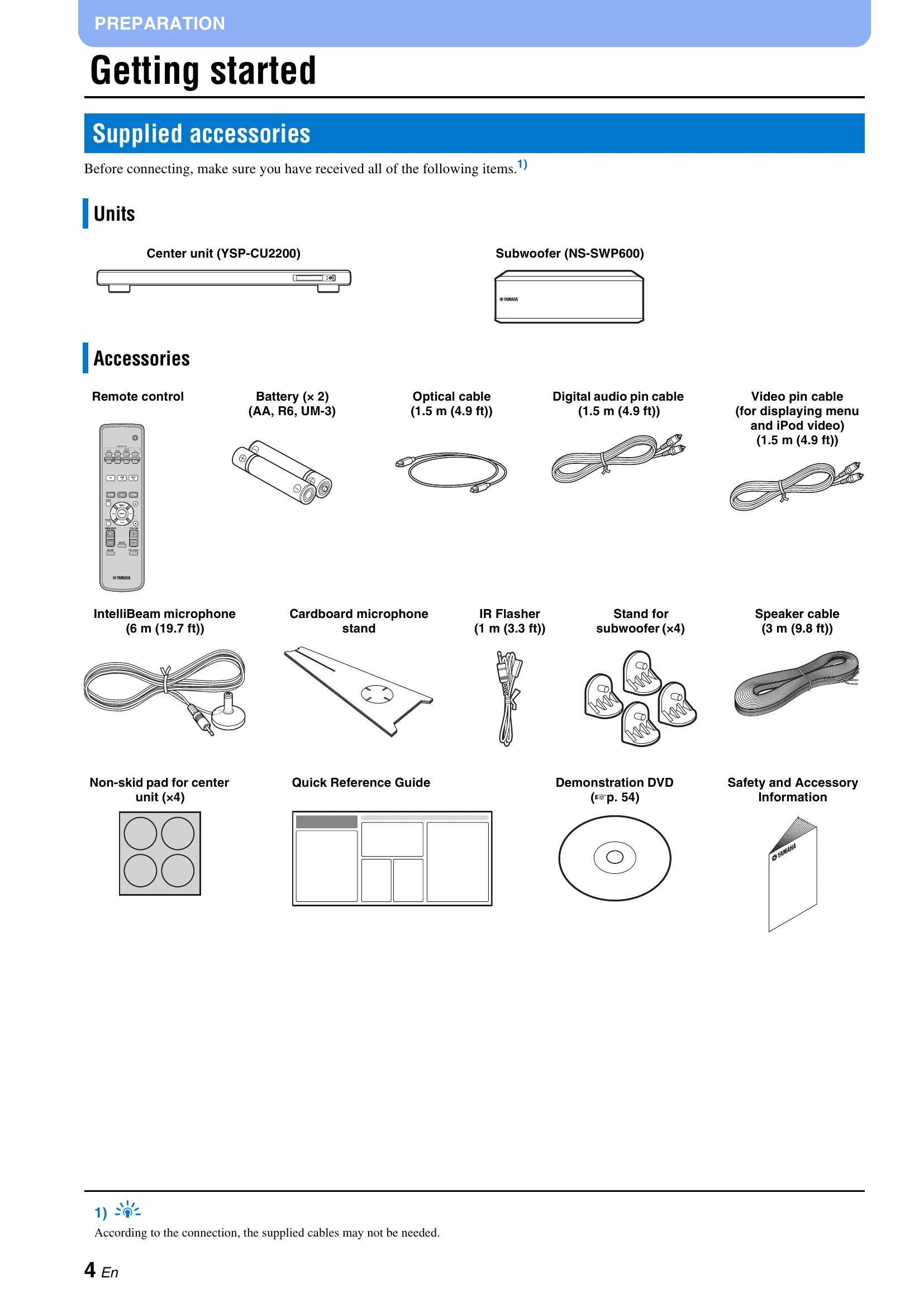

  • Supplied accessories
    • \n
  • Controls and functions
    • \n
\n

CONNECTION/INITIAL SETTINGS

\n
    \n
  • Installation and Connection
    • \n
  • Remote control preparation
    • \n
  • Subwoofer connection
    • \n
  • Connections
    • \n
  • Initial settings
    • \n
  • Selecting language for menu display
    • \n
  • Auto setup for appropriate surround effects (IntelliBeam)
    • \n
  • Using AUTO SETUP (IntelliBeam)
    • \n
  • AUTO SETUP via setup menu
    • \n
  • Advanced setup
    • \n
\n

PLAYBACK

\n
    \n
  • Playback features
    • \n
  • Basic operation for playback
    • \n
  • Enjoying sound with your preference
    • \n
  • Switching stereo/surround sound
    • \n
  • Playing back digitally compressed formats
    • \n
  • Automatic volume level adjustment (UniVolume)
    • \n
  • Volume balance adjustment
    • \n
  • Enjoying realistic surround sound (CINEMA DSP)
    • \n
  • Changing the audio output method for surround playback
    • \n
  • Surround decoder setting
    • \n
  • Using useful features
    • \n
  • Sleep timer/auto power down function
    • \n
  • Settings for each input source (Option menu)
    • \n
  • Playing back iPod/iPhone
    • \n
\n

Troubleshooting and error codes

Problem Cause Remedy See page
This unit does not operate properly. The internal microcomputer has been frozen by an external electric shock (such as lightning or excessive static electricity) or by a power supply with low voltage. Set this unit to the standby mode, disconnect the AC power supply cable, plug it back in after 30 seconds, and use it normally.
This unit fails to turn on when key is pressed, or enters the standby mode soon after the power has been turned on. The AC power supply cable is not firmly connected to the AC wall outlet. Connect the AC power supply cable firmly to the AC wall outlet. 14
A speaker cable may be shorted. Make sure a speaker cable is connected properly. 13
This unit suddenly enters the standby mode. This unit has been exposed to a strong external electric shock (such as lightning and strong static electricity). Set this unit to the standby mode, disconnect the AC power supply cable, plug it back in after 30 seconds, and use it normally.
The internal temperature becomes too high and the overheat protection circuitry has been activated. Wait for about one hour for this unit to cool down, turn it back on after confirming an adequate amount of ventilation space and not to cover this unit with a cloth. 9
The sleep timer has turned the unit off. Turn on the power and play back the source again. 32
The power has shut down after wireless was disconnected for a while during "Interlock" is set to "On" using YID-W10. Resume wireless connection or detect audio of iPod/iPhone and turn on the unit.
No sound. Incorrect input or output cable connections. Connect them with an HDMI connection or a digital connection. 14, 15
No appropriate input source has been selected. Select an appropriate input source with INPUT key or input selector keys. 26
The volume is turned down. Turn up the volume. 26
The sound is muted. Press MUTE or VOLUME +/- key to resume audio output and adjust the volume level. 26
There is input signal cannot be played back by this unit. Play a source whose signals can be reproduced by this unit. Change the system settings of the source component. 43
"SUPPORT AUDIO" is set to "OTHER". Set to "YSP-2200". 43
"HDMI CONTROL" is set to "OFF". When connecting ARC (Audio Return Channel) supported TV and this unit using HDMI cable only, set "HDMI CONTROL" to "ON". 15
The sound of effect channel for cable broadcasting may become noise. The source has a surround effect. Connect coaxial digital input jack and TV's audio output jack using a digital audio pin cable.
Do not put surround effect by this unit.
No sound or too small sound from a specific channel. The output level of the channel is muted. Raise the output level of the channel. 27, 41
The beam setting is inappropriate. Adjust the beam setting. 29
You play back the source in the stereo mode. Start surround playback. 28
Some audio output methods do not output sound beams for certain channels. Adjust the beam setting. 29
When connecting this unit with playback component and TV digitally, the output setting of the playback component and TV is not valid. Refer to the manual supplied with your component and check the setting.
Surround sound effects are insubstantial. The listening room is not a regular shape, or the unit or listening position is not at the center of the right and left wall of the listening room. Relocate the unit or listening position. 11, 38
There is no wall in the path of the sound beam. Try placing a flat object, such as a board, in the path of the sound beam. 30
When My Surround is selected, listening position is not in front of the unit. Listen in front of this unit.
