Brand: YAMAHA
Category: Audio/Video
Document Type: Parts/Service
Language: EN
Parts/Service for DPX-530
Uploaded: Nov. 21, 2025, 8:40 p.m.
Manual Publish Date: 2005-07-01

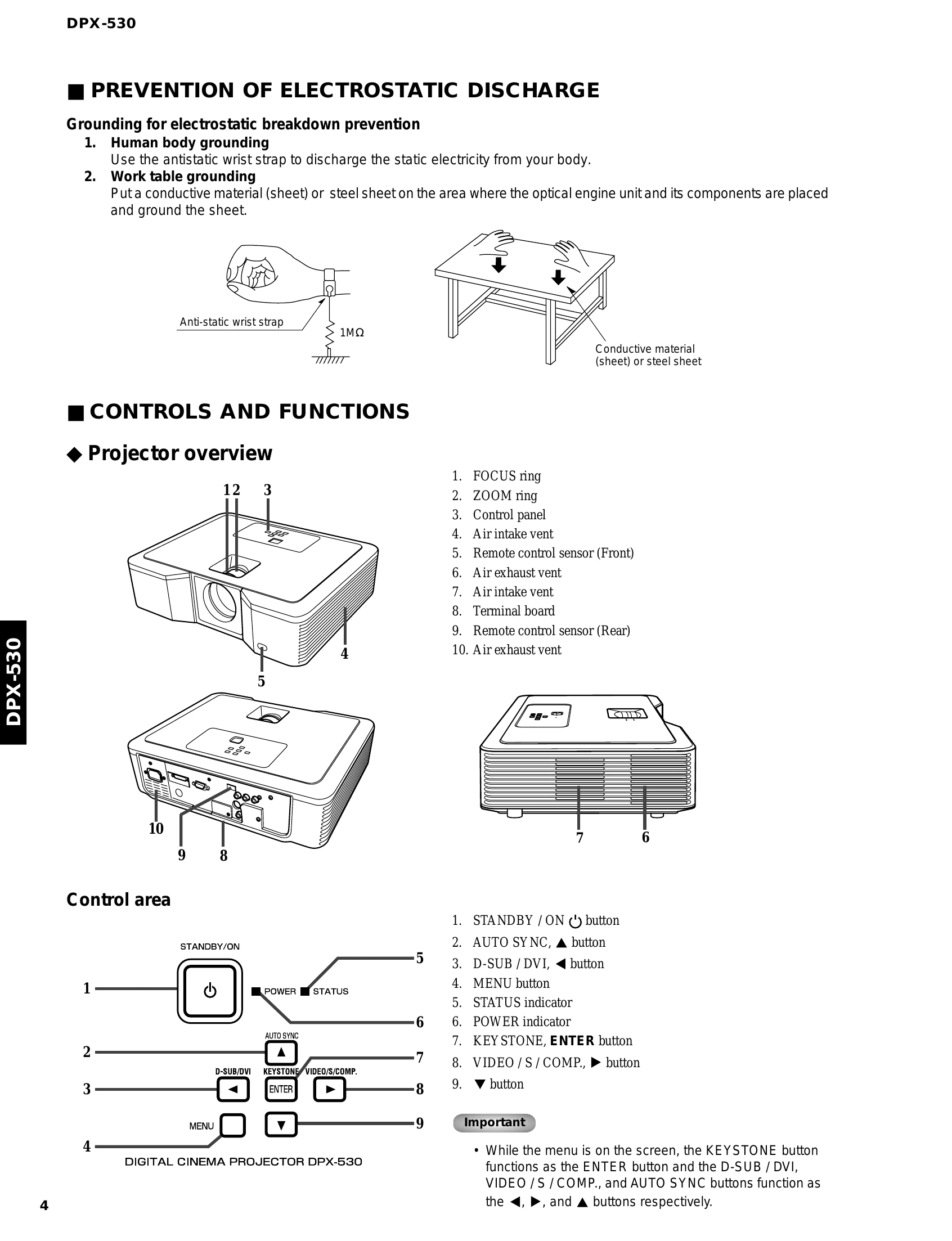

The manual provides detailed service instructions for the YAMAHA DPX-530 digital cinema projector. It covers safety precautions, component identification, disassembly procedures for various parts like the main PCB, cooling fans, optical unit, and more. It also includes information on lead dress, circuit diagrams, IC block diagrams, and exploded views with parts lists for efficient servicing and repair.
Troubleshooting and error codes
| POWER | STATUS | CONDITION | SOLUTION |
|---|---|---|---|
| Steady green or Blinking orange | Abnormal temperature | The ventilation grilles are clogged with dust or dirt. The room temperature is high. | Clean the ventilation grilles. Relocate the projector to a cooler place. Remove any objects blocking the ventilation grilles. |
| Steady red | Blinking green | Abnormal when it occurs except while shutting down. The protection circuit is working or the lamp is in an abnormal condition. | Wait until the STATUS indicator goes out, then press the STANDBY/ON button. If the above solution is not effective, replace the lamp. |
| Steady green | Blinking green/red | Lamp operation time warning. (Total lamp operation time reached 3000 hours*¹ while the power was on.) | Replace the lamp. Change with a new lamp if this problem recurs. |
| Steady red | Blinking red | Lamp operation time warning. (Total lamp operation time reached 4000 hours*¹, *2 while the power was off.) | Replace the lamp. Change with a new lamp if this problem recurs. |
| Steady red | Off | The lamp cover isn't closed. | Close the cover correctly. |
| Steady or Blinking green/red | Abnormal. | Abnormal. | Contact your dealer. |
