Parts/Service for CDC-585/CDC-506/CDC-685/CDC-906

Parts/Service for CDC-585/CDC-506/CDC-685/CDC-906

Brand: YAMAHA

Category: Audio/Video

Document Type: Parts/Service

Language: EN

Uploaded: Nov. 21, 2025, 9:21 p.m.

AUDIO SECTION

  • Output Level (1kHz 0dB): 2.0±0.5V
  • S/N Ratio: 106dB
  • Dynamic Range: 96dB
  • Harmonic Distortion+Noise (1kHz): 0.003%
  • Frequency Response (2Hz~20kHz): ±0.5dB
  • Headphone Output (CDC-685/CDC-906 only): 200±40mV

GENERAL

  • Power Supply: Varies by model (120V AC 60Hz, 230V AC 50Hz, 240V AC 50Hz, 110/120/220/240V AC 50/60Hz)
  • Power Consumption: 12W
  • Dimensions (W x H x D): 435 x 116 x 404 mm (17-1/8" x 4-9/16" x 15-7/8")
  • Weight: 5.85kg (12 lbs 12 oz)
  • Accessories: Pin plug cord, Remote control transmitter, Batteries (x2, Size "AA", R06)

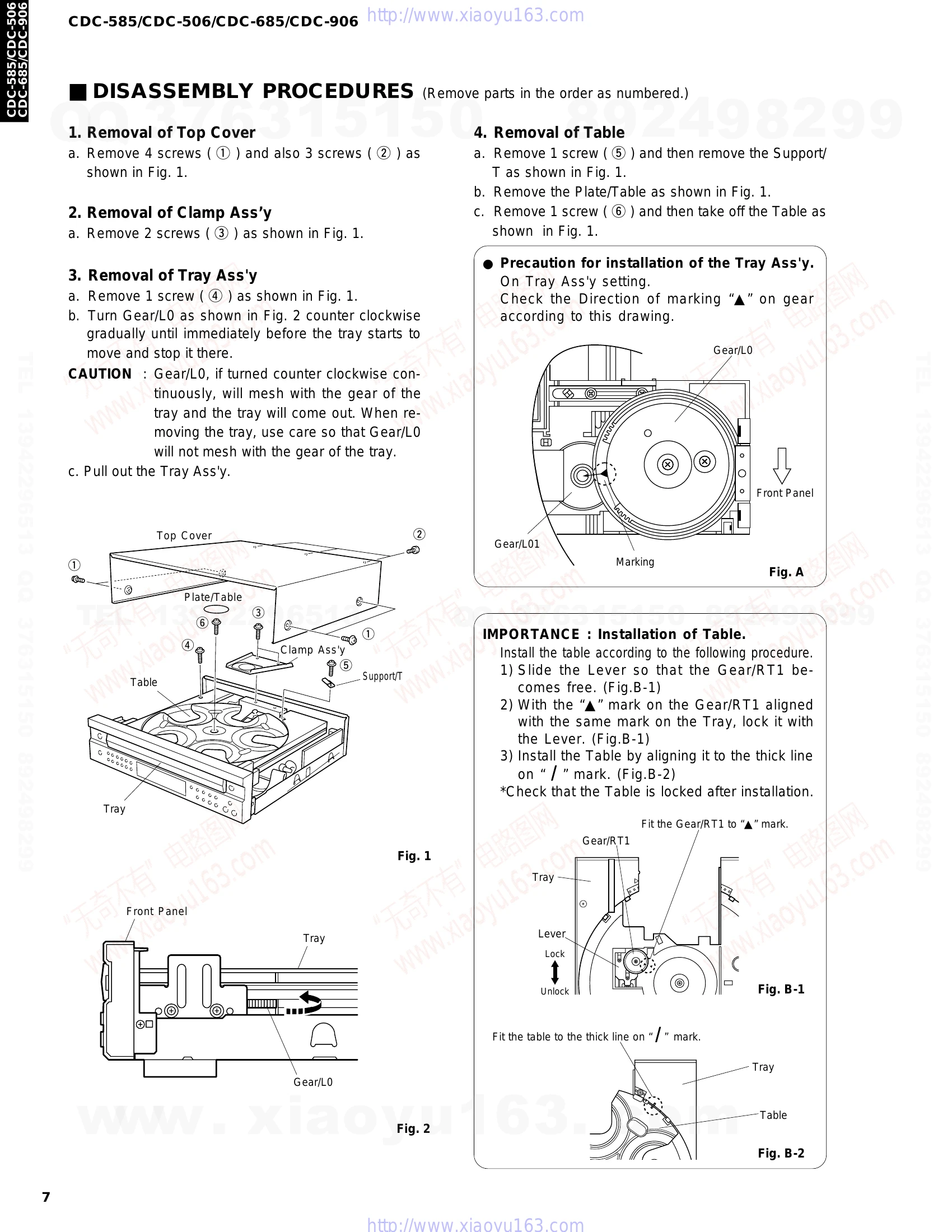

INTERNAL VIEW

Identifies key components such as P.C.B. MAIN (2), CLAMP ASS'Y, CM-230/CM-240 UNIT, P.C.B. MAIN (1), and TRAY ASS'Y.

DIMENSION

Provides physical dimensions in mm (inch).

Troubleshooting and error codes

Error Code Message Description * Meaning of each state ("X")
E-X0 Data cannot be read after finishing search. (X = 0)PLAY
E-X1 Data cannot be read during PLAY (x = 0), PAUSE (x = 3) or SCAN (x = 2). (X = 2)SCAN
E-71 At the start, tracking servo is not effective. (X = 3)PAUSE
E-72 At the start, spindle servo PLL is not effective. (X = 4)PEAK SEARCH
E-73 At the start, data can not read. (X = 5)SEARCH
E-X4 Close switch does not work with tray closed. (X = 6)DISC SCAN
E X 5 Open switch does not work with tray opened. (X = 7)START
E-X6 Table does not turn. (X = 8)STOP
E-X7 Traverse (Feed) inner circumference switch does not work. (X = 9)DISC SEARCH
E-X8 Recovery action fails after focus drop. (X = -)EJECT
E-X9 Clamp down switch does not work. (X = C) .......... NO DISC
E-XA Clamp up switch does not work.
Err MN35511 does not give response of SENSE, with resetting by the unit's microcomputer.
