Installation Instructions

Place the appliance on a stable, straight surface, away from heat sources. Ensure ambient air temperature does not exceed 35°C. Maintain a minimum space of 3 cm around the appliance for ventilation.

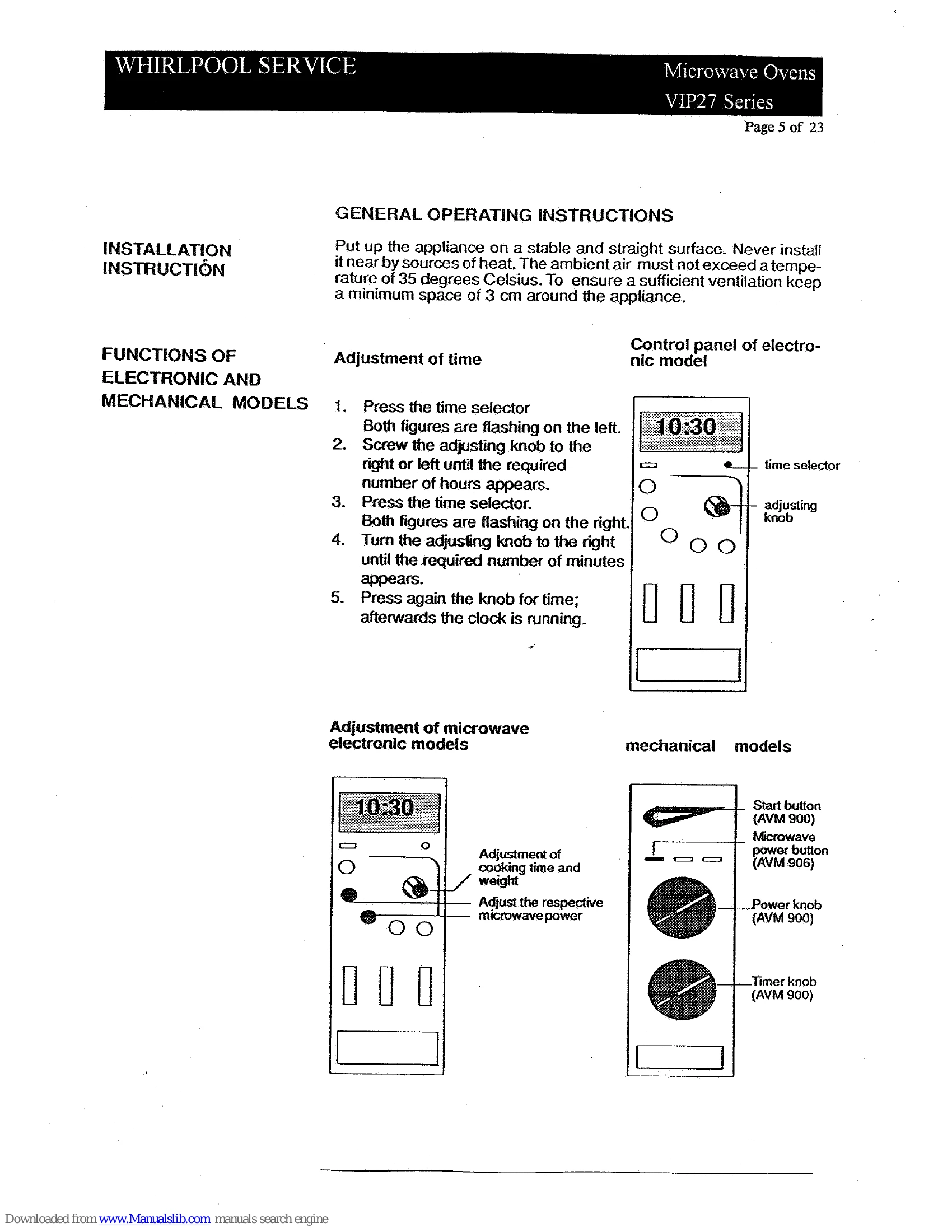

General Operating Instructions

Electronic Models:

  • Time Adjustment: Press time selector, adjust hours using the knob, press again, adjust minutes, press again.
  • Microwave/Grill/Combi Functions: Use dedicated buttons/knobs for time, power level, and function selection. Refer to specific setting instructions for Jet setting, automatic defrost, and Crisp-Grill.

Mechanical Models:

  • Operation: Use the rotary knob for timer settings. Start the appliance with the "Start" button. Grill and Combi functions have dedicated power buttons.

Safety Precautions

  • Microwave Radiation: Never operate without a load, do not look into open waveguide/antenna, ensure all connections are secure.
  • High Voltage: Lethal high voltage is present. Exercise extreme caution when performing electrical measurements.
  • Door Integrity: Do not operate if the door is warped, damaged, or seals are compromised.
  • General: Pull mains plug before repair. Ensure all internal connections are correct and insulated. Do not modify safety devices.

Troubleshooting and error codes

Symptom Possible Cause Remedy
Oven does not operate No power to the oven Check mains plug and fuse.
Door switch faulty Check and replace door switch.
Failure monitor switch faulty Check and replace failure monitor switch.
Microwave does not heat Magnetron faulty Check magnetron (filament and shorted). Replace if necessary.
HV capacitor faulty Check capacitor. Replace if shorted or open.
HV diode faulty Check diode. Replace if faulty.
HV transformer faulty Check transformer windings. Replace if necessary.
Incorrect door switch operation Ensure safety switches are activated correctly when the door is open/closed.
Sparks in oven Use of metal cookware Use only suitable cookware.
Food debris Clean the oven cavity.
Oven operated without food Do not operate without food.
R.F. Leakage detected Damaged door or seals Check door and seals for damage. Ensure proper alignment.
Missing or damaged RF gasket Replace RF gasket.
