Installation Clearances

Ensure adequate space for installation, servicing, door swing, and companion appliances. Provide additional clearance on all sides to reduce noise. For closet installations, ensure doors have top and bottom air openings.

Dryer Dimensions

Front View: 29" (737 mm) wide, 40 7/8" (1038 mm) high.

Side View: 50 3/4" (1289 mm) long, 28 1/4" (717 mm) deep.

Installation Spacing (Recessed Area/Closet)

Minimum spacing is detailed. Additional spacing for ease of installation and servicing is recommended. For closet installations with doors, ventilation openings are required in the door. Companion appliance spacing should also be considered.

Venting Requirements

Dryer MUST be exhausted outdoors. Use only 4" (102 mm) heavy metal exhaust vent and clamps. Do not use plastic or metal foil vent. Rigid metal vent is recommended. Flexible metal vent is acceptable if accessible for cleaning, with a maximum total length of 7 3/4 ft. (2.4 m). Ensure exhaust hood is at least 12" (305 mm) from the ground or obstructions.

Vent System Chart

Provides guidelines for vent material, number of 90° turns/elbows, and maximum vent lengths for optimal drying performance. Using longer vent runs can shorten dryer life and reduce performance.

Gas and Electric Dryer Model Numbers

WED4950HW, WGD4950HW, WED4850HW, WGD4850HW, YWED4850HW.

Gas Supply Requirements

Dryer is equipped for Natural gas; can be converted to L.P. gas. Use 1/2" IPS rigid pipe or approved tubing. An individual manual shut-off valve is required within 6 ft (1.8 m) of the dryer.

Electrical Requirements

Use a 3- or 4-wire, single-phase, 120/240 volt, 60 Hz AC-only electrical supply on a separate 30 amp circuit. Connect to an individual branch circuit. Do not use an extension cord.

Water (Steam Models Only) Requirements

Connect to a cold water faucet with new inlet hoses. Ensure faucet is within 4 ft (1.2 m) and water pressure is 20-100 psi. A "Y" connector can be used.

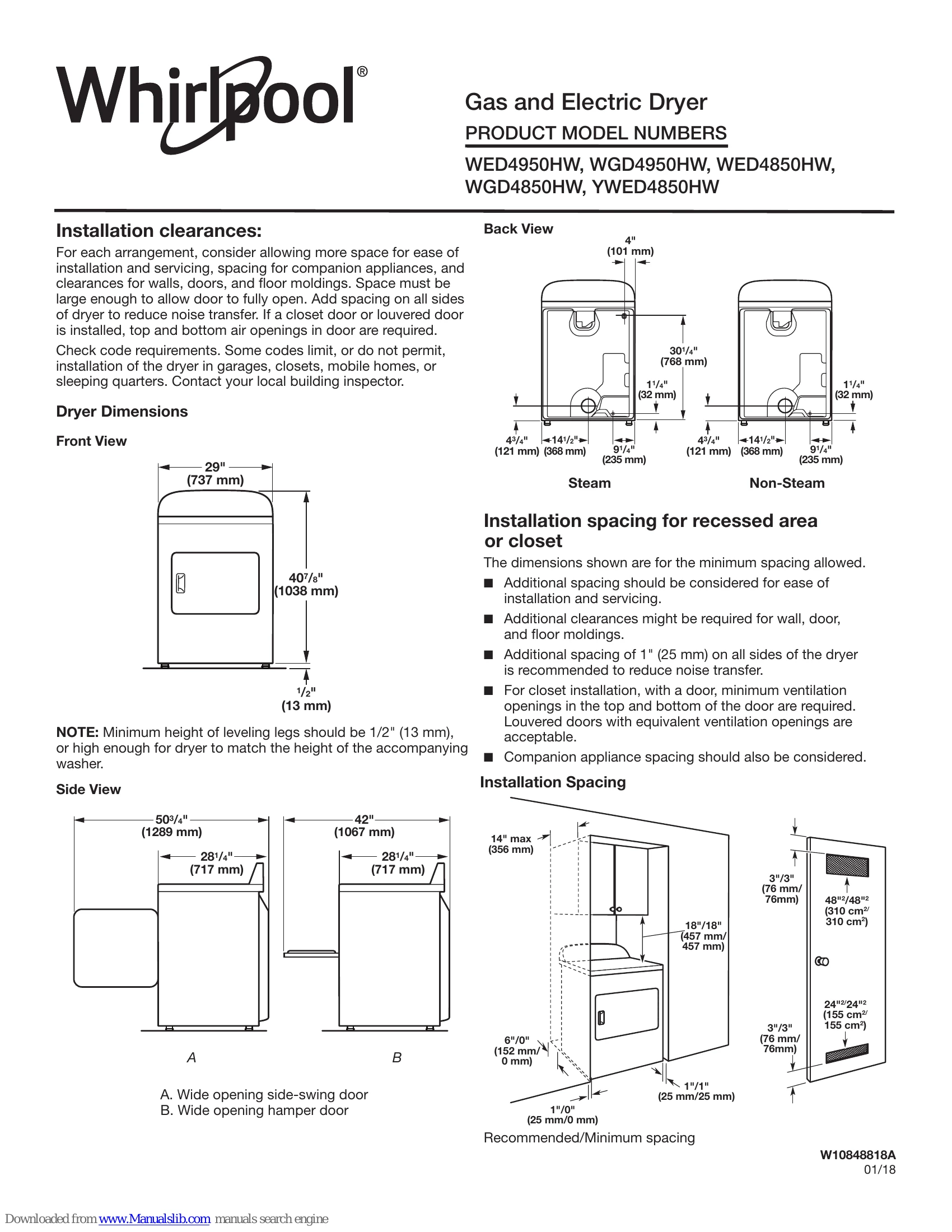

Installation Guide for WED4950HW
