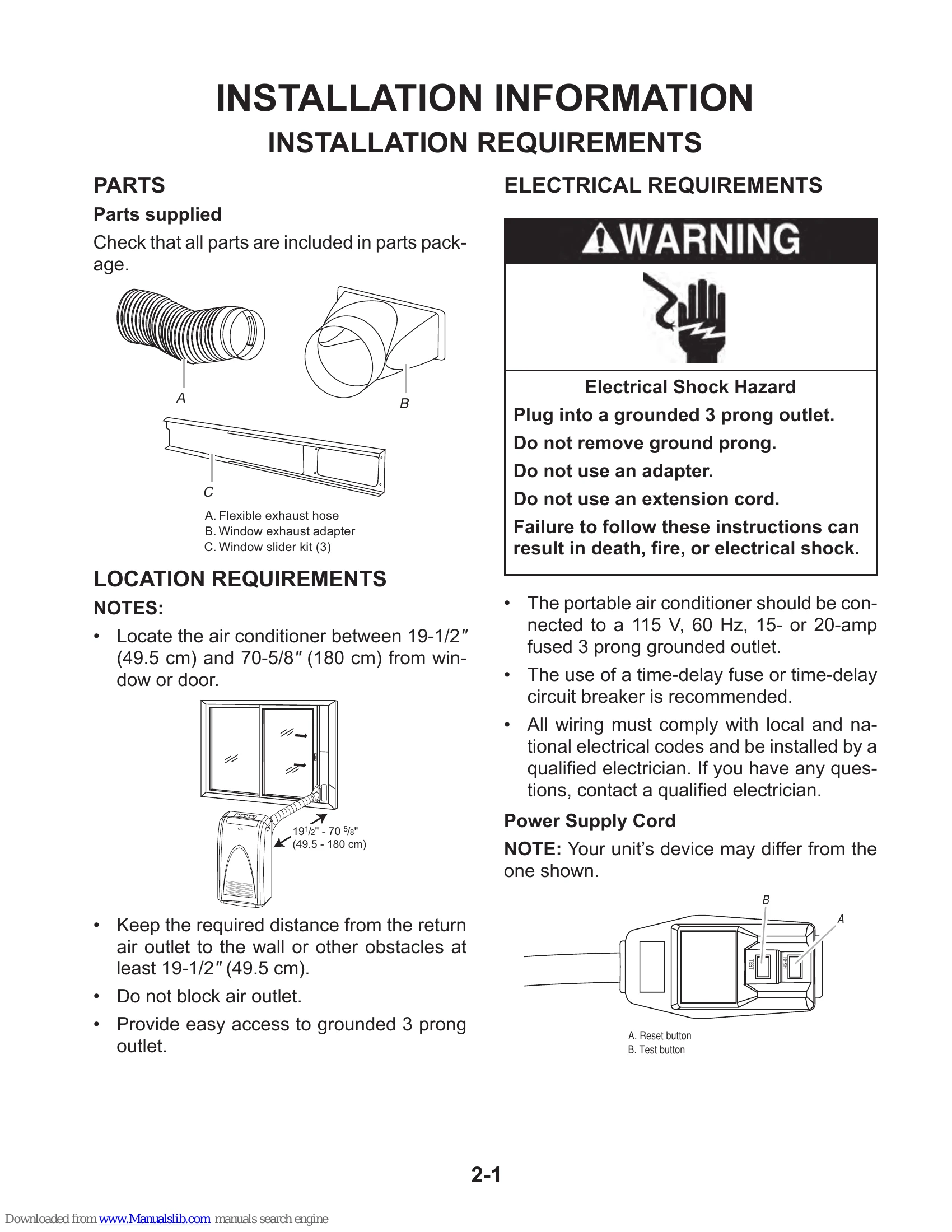

Manual for ACP102PR
Uploaded: Nov. 21, 2025, 7:55 p.m.
Manual Publish Date: 2005-01-01
Warranty Information
Five year full warranty for repair/replacement of defects in materials or workmanship.
Cooling Mode: Adjusts temperature from 90°F to 64°F. Compressor and condenser fan cycle on/off. High, Low, or Auto fan speed can be selected.
ComfortMode™ Control: Automatically cools to 73°F. If room temp is above 73°F, Cooling Mode is used. If below, Dry Mode is used. Temperature adjustable by ±4°F.
RapidCool™ Mode: High fan speed, setpoint 64°F.
Dry Mode: Dries the room, fan on Low. Setpoint is 3°F cooler than room temp.
Fan Only Mode: Only the evaporator fan runs.
Condensate Water Management: Water is evaporated by the condenser. If water level is too high, operation stops.
Troubleshooting and error codes
| Symptom | Possible Cause | Solution |
|---|---|---|
| Unit does not operate | Power cord not plugged in. | Plug in power cord. |
| House fuse blown or circuit breaker tripped. | Check fuse or circuit breaker. Replace fuse or reset breaker. | |
| Room thermostat set too high. | Adjust thermostat to a lower setting. | |
| Air filter dirty. | Clean air filter. | |
| Improper installation. | Refer to Installation Instructions. | |
| Unit runs, but does not cool | Room temperature is below set point. | Adjust thermostat to a lower setting. |
| Air filter dirty. | Clean air filter. | |
| Temperature setting is too high. | Adjust temperature setting. | |
| Window or door open. | Close window or door. | |
| Return air or air conditioner outlet is blocked. | Remove obstructions. | |
| Unit may be in Fan Only or Dry mode. | Select Cooling mode. | |
| Unit is noisy | Air conditioner is not level. | Level air conditioner. |
| Loose panels or grilles. | Tighten loose panels or grilles. | |
| Ice building up on the evaporator coil. | Refer to "De-Ice Protection" in "Product Operation." | |
| Water on floor | Drain hose is not connected or is clogged. | Connect or clear drain hose. |
| Water pump is not operating. | Check water pump. | |
| Sump is full. | Drain sump. |
