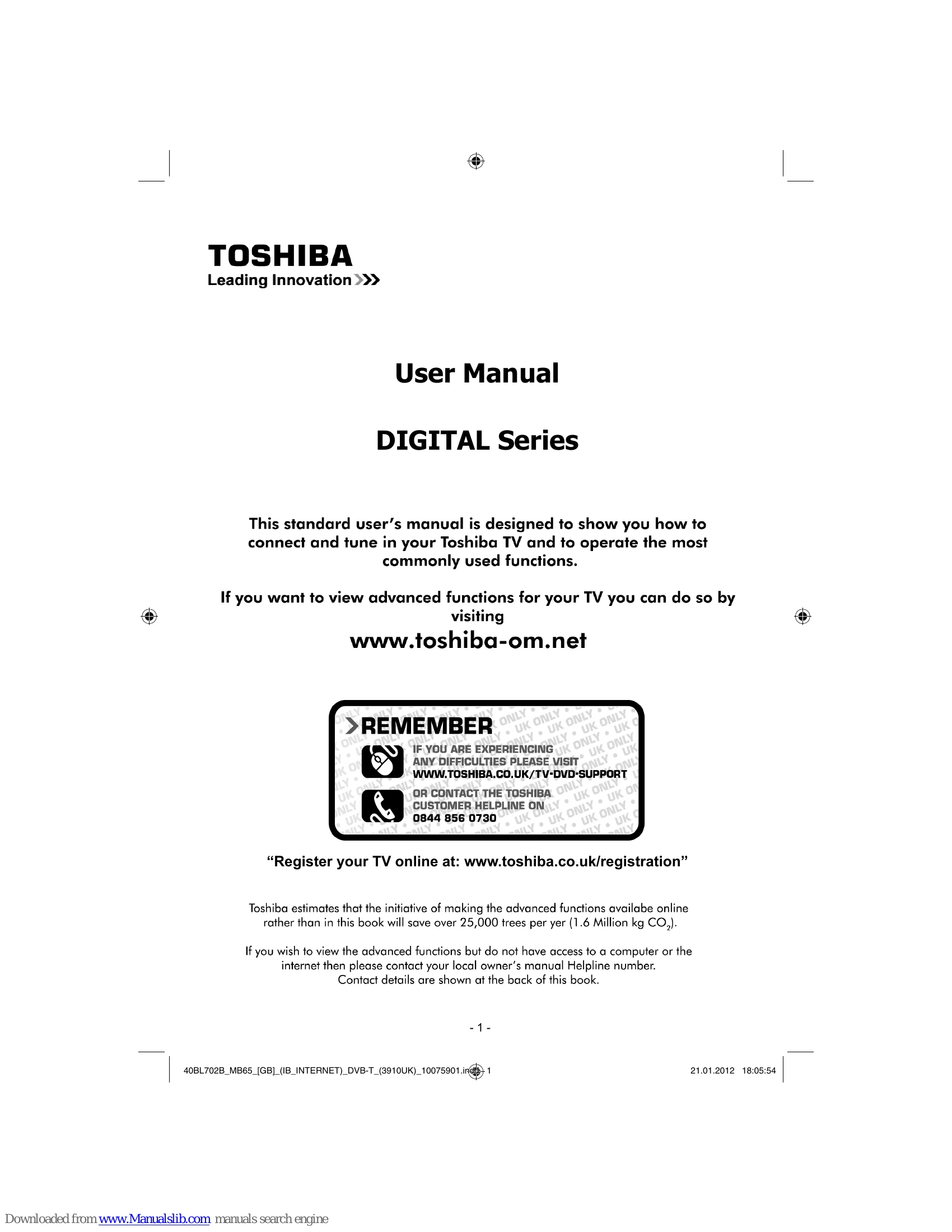

Manual for 40BL702B

Manual for 40BL702B

Brand: TOSHIBA

Category: Television

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:21 p.m.

Warranty Information

This is a one-year limited warranty covering defects in material and workmanship.

  • To view advanced functions, visit www.toshiba-om.net.
  • For re-tuning the TV during digital switchover, press MENU, select Install and Retune, then Automatic channel scan.
  • To connect external equipment like decoders, computers, or USB devices, refer to the relevant sections.
  • Power Save Mode can be activated to reduce energy consumption.
  • The remote control and its functions are detailed for easy operation.
  • Initial Installation guides the user through setup, including country and language selection.
  • Manual tuning options are available for digital and analogue channels.
  • USB Media Browser allows enjoyment of photo, video, or music files from a USB device.

Troubleshooting and error codes

Why is there no sound or picture? Check the television is not in standby mode. Check the mains plug and all mains connections.
Why is there a picture but no sound? Check the volume has not been turned down or that sound mute has not been selected.
What can cause a poor picture? Interference or a weak signal. Try a different television station.
Why doesn't the video/DVD being played show on screen? Make sure the VCR or DVD player is connected to the television as illustrated in the beginning chapters, then select the correct input by pressing SOURCE.
Why is the VCR/DVD picture in black and white? Check the correct input has been chosen.
Why is there a good video picture but no sound? Check the SCART lead connection.
Why doesn't the remote control work? Check the batteries aren't exhausted or inserted incorrectly.
Why don't the controls of the television work? Check that CHILD LOCK is not selected.
Why is the sound only coming from one speaker when stereo sound is selected? Check that the balance in the SOUND menu hasn't been set to one side.
Why are there problems with analogue text service? Good performance of the analogue text depends on a good strong broadcast signal. This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the analogue text service and look for the User Guide.
What is DVB-T? Digital Video Broadcast via an aerial/antenna.
How are radio channels selected? You can select them via the Channel List.
What can be done if the PIN number has been forgotten? You can reset TV and perform first time installation. Ensure that no-one else can use this by removing the Owner's Manual.
Why are there horizontal stripes and/or blurred images on the screen when in PC mode? The Phase may need adjustment. Select PC Settings and highlight Phase and adjust until the picture cleared.
Why doesn't the Media Browser feature operate? Make sure that USB is connected correctly. Incorrect behaviour may occur with a USB Hub connection.
Why is the digital channel locked? Parental control is activated. Check parental settings.
Why are some encrypted digital channels unavailable? Your subscription needs upgrading. Contact your service provider.
Why when digital subtitles have been selected are they not showing on screen? Subtitles are not currently being transmitted by the broadcaster.
Why is the soundtrack in English when a different audio language has been selected? The programme is currently being broadcast with an English soundtrack only.
Why does the active standby LED sometimes take longer to go out? When put into standby the television's active standby will automatically search all available channels for downloads, provided Automatic Download is enabled. The time it takes to do this may vary.
