Manual for e-STUDIO181/211
Uploaded: Nov. 21, 2025, 9:02 p.m.
Manual Publish Date: 2009-12-01
Warranty Information
No warranty information explicitly stated, but manual addresses safe handling and disposal.

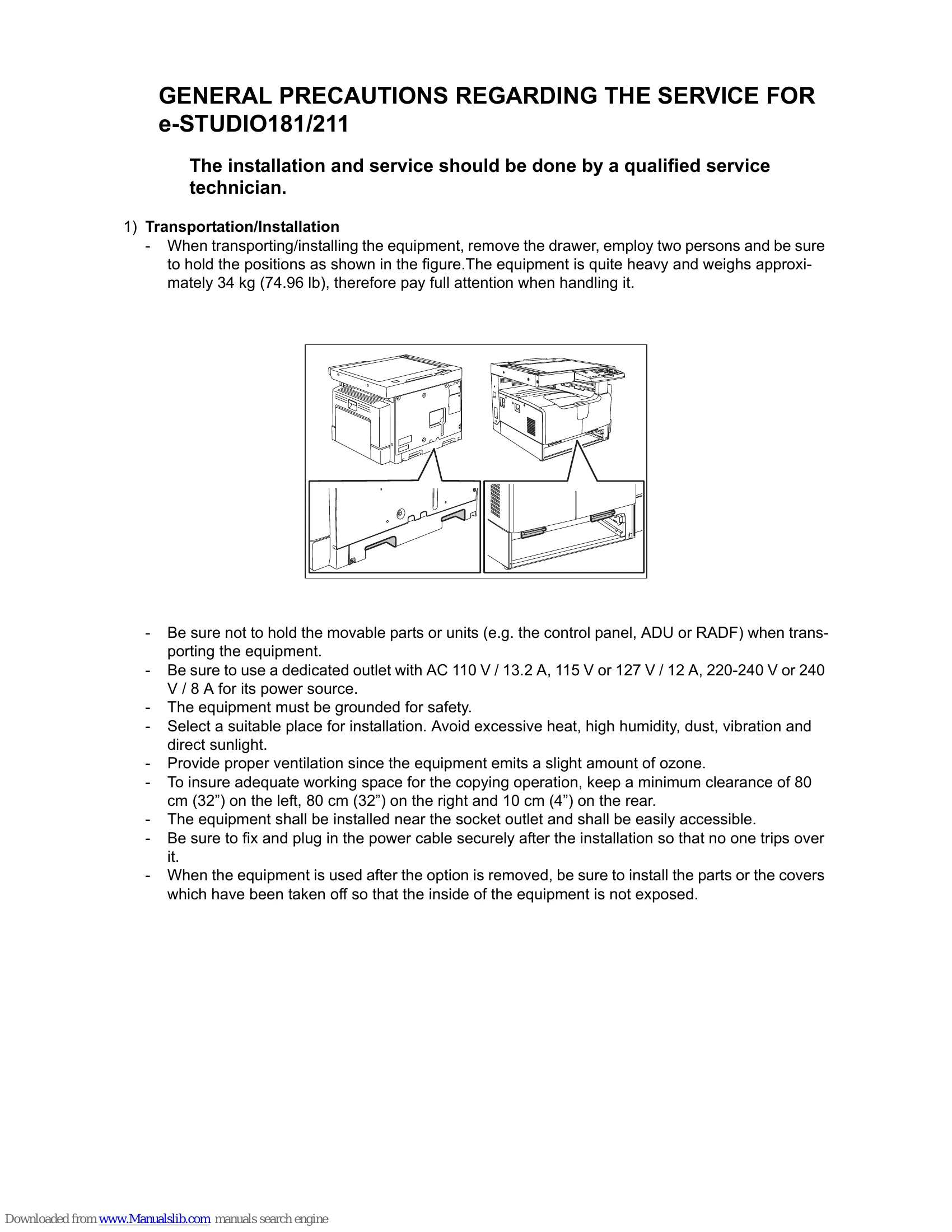

- General Precautions at Service: Turn off power and unplug cable before service. Handle PC boards with anti-static precautions. Avoid laser beam exposure and touching high-temperature or high-voltage sections.
- Important Service Parts for Safety: Handle safety-critical parts like fuses and IC-RAMs correctly to prevent accidents.
- Cautionary Labels: Check rating plates and cautionary labels for dirt and proper attachment.
- Disposal: Follow local regulations for disposal of equipment, supplies, batteries, and IC-RAMs.
Troubleshooting and error codes
| Voltage | Board/Unit | Part | Fuse type | |
|---|---|---|---|---|
| +24V | MAIN board | Scan motor | M1 | F203: 4A |
| Polygonal motor | M4 | |||
| Switching regulator cooling fan | M6 | |||
| Registration clutch | CLT1 | |||
| Pickup solenoid | SOL1 | |||
| Bypass pickup solenoid | SOL2 | |||
| Contact image sensor unit | CIS | |||
| +24VDF | PFU | ADF | F202: 4A | |
| +24VCOV-OFF | MAIN board | Toner motor | M2 | F201: 4A |
| Main motor | M3 | |||
| Exhaust fan | M5 | |||
| Auto-toner sensor | S6 | |||
| Discharge LED | ERS | |||
| Coin controller |
