Brand: TOSHIBA
Category: DVD Player
Document Type: Manual
Language: EN
Manual for SD4300KU
Uploaded: Nov. 21, 2025, 6:19 p.m.
Warranty Information
Offers a 90-day exchange warranty for defects in materials or workmanship.

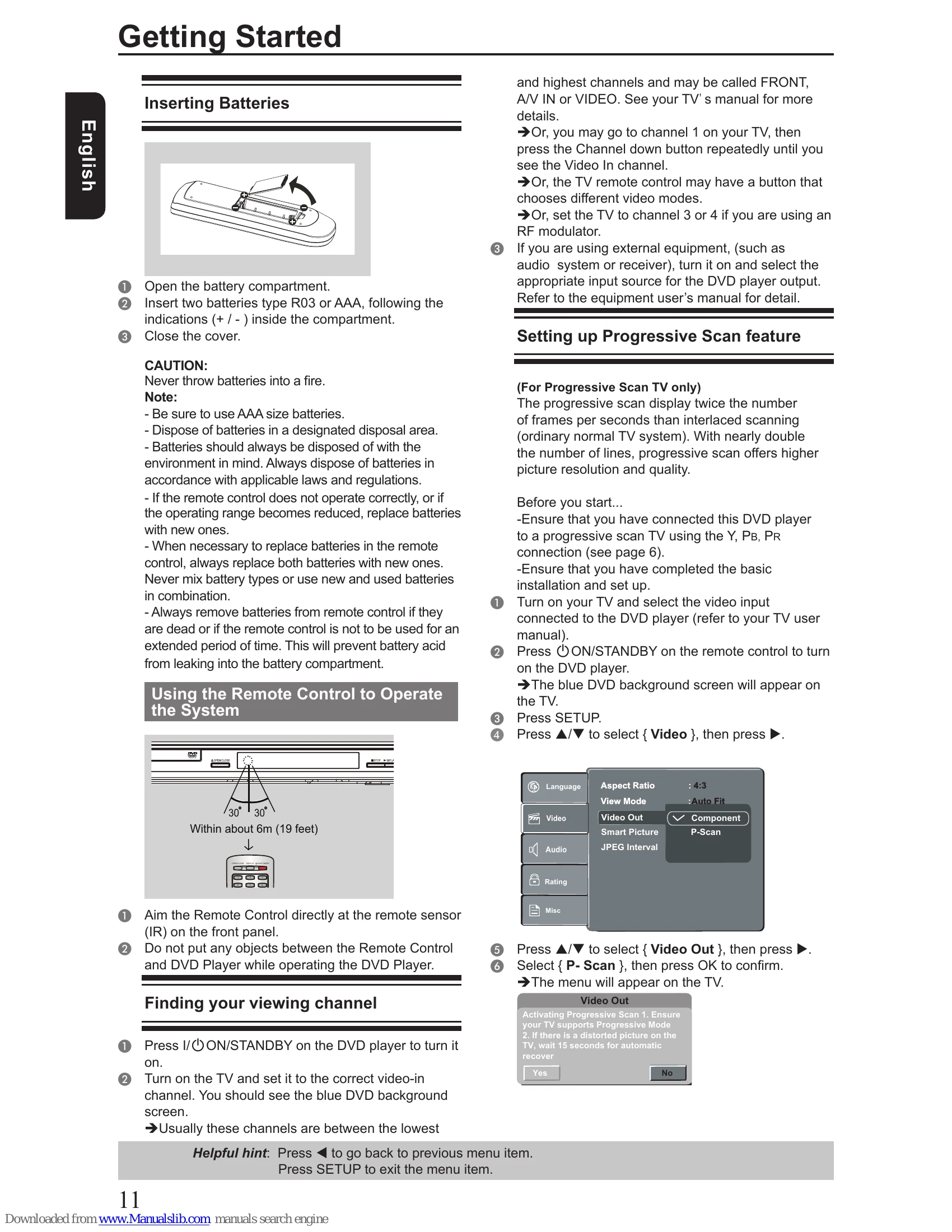

Getting Started
- Inserting Batteries: Open the compartment, insert 2 AAA batteries, and close the cover.
- Finding your viewing channel: Turn on the player and TV, select the correct video input channel.
- Setting up Progressive Scan: For progressive scan TVs, connect via Y, PB, PR, and select 'P-Scan' in the video output settings.
- Setting the language: Use the SETUP menu to choose OSD language, subtitle, audio, and DVD menu languages.
Playback from Disc
- Playable discs: Supports DVD Video, DVD±R/RW, CD-R/RW, Audio CDs. Some discs may be incompatible.
- Starting disc playback: Turn on the player, open tray, load disc, close tray, press PLAY/PAUSE.
- Basic playback control: Use PLAY/PAUSE, STOP, PREV/NEXT, and number buttons for navigation.
- Playback Features: Includes slow motion, fast forward/reverse, repeat functions, and disc menu access.
Troubleshooting and error codes
| Problem | Solution |
|---|---|
| No power | - Check AC power cord connection. - Press I/ON/STANDBY to turn on. |
| No picture | - Check TV's Video In channel. - Check if TV is switched on. - For progressive scan issues, see pages 11-12 or deactivate P-Scan. |
| Distorted picture | - May be caused by View Mode setting. Set to 'Original'. |
| Picture clipped | - Connect DVD Player directly to TV. - Ensure disc compatibility. - Match player and TV settings. |
| Completely distorted picture or black/white picture with DVD. | - Make sure disc is compatible with the DVD player. |
| No sound / distorted sound | - Adjust volume. - Check speaker connections. |
| No audio at digital output | - Check digital connections. - Ensure receiver decodes MPEG-2/DTS or set to PCM. - Match audio format to receiver capabilities. |
| No sound and picture | - Check cable connection to the correct device. |
| Disc cannot be played | - DVD±R/RW must be finalized and in video mode format. - Ensure disc label is facing up. - Try another disc. - Check region code. |
| Picture freezes momentarily during playback | - Clean disc for fingerprints/scratches. |
| No return to start-up screen when disc is removed | - Reset unit by switching off and on. |
| The player does not respond to the Remote Control | - Aim Remote Control at the sensor. - Reduce distance. - Replace or re-insert batteries. - Unplug AC cord for 5-10 seconds to reset. |
| Buttons do not work | - Operations may not be permitted by the disc. - Clean lens with a cleaning CD/DVD. - Press STOP twice before selecting setup menu. - Some menu items may not be selectable depending on disc. - Ensure Video Out is set to P-Scan/Component. |
