Brand: TOSHIBA
Category: Camera
Document Type: Manual
Language: EN
Manual for IK-TU51CU
Uploaded: Nov. 21, 2025, 7:30 p.m.
Manual Publish Date: 2000-10-01
Operation Summary
This manual provides detailed instructions for operating and servicing the TOSHIBA CCD CAMERA IK-TU51CU, JK-TU52H, and JK-TU53H models. Key operational aspects include:

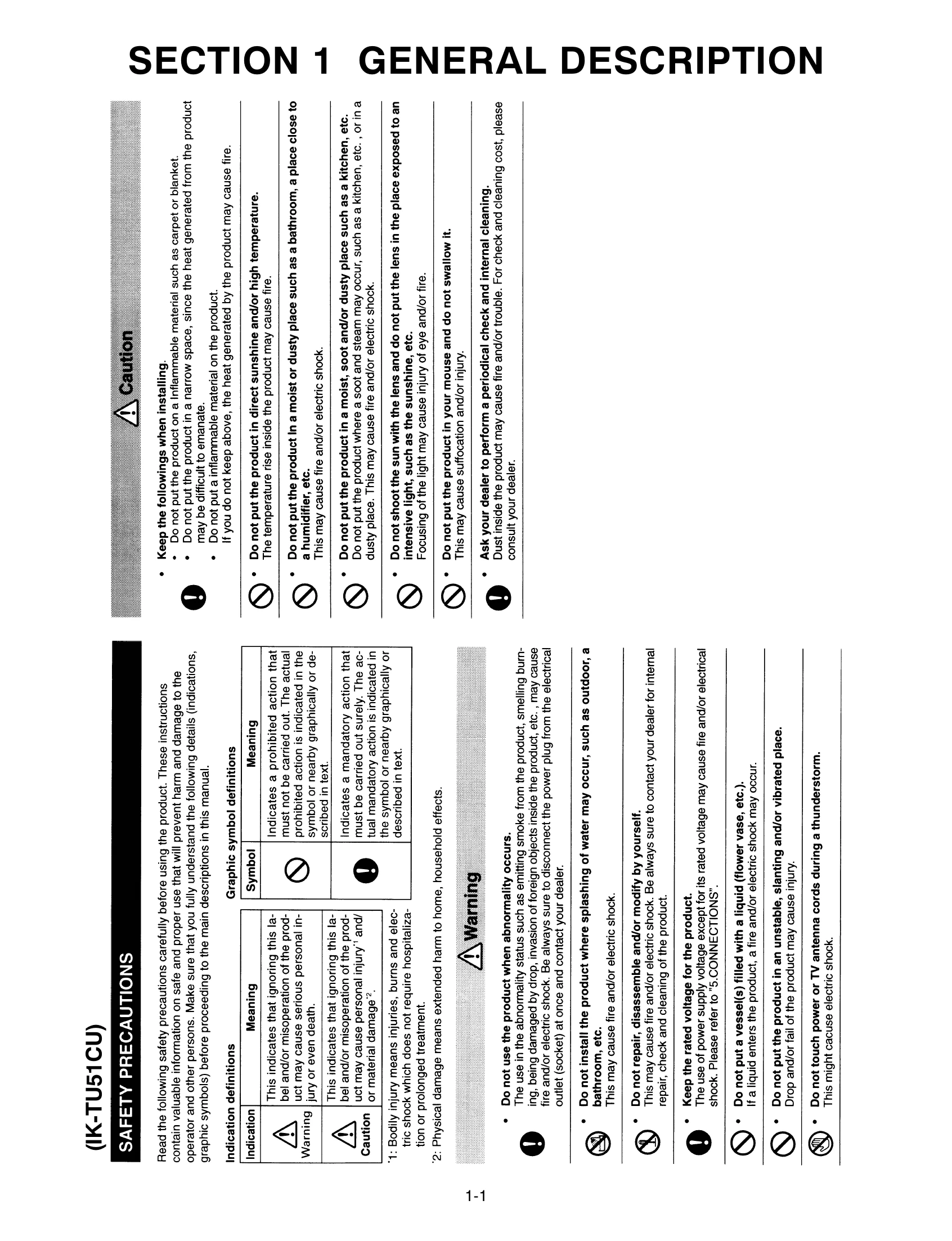

- Safety Precautions: Emphasizes safe handling, installation, and usage to prevent injury and damage. Includes warnings about voltage, moisture, and improper use.
- Connections: Details standard and external sync connections, including pin assignments for various terminals.
- Menu Operations: Explains how to navigate and adjust settings using the on-screen display menu. This covers various parameters like shutter speed, gain, white balance, shading correction, image processing (gamma, detail), color matrix, sync settings, and option settings.
- Specific Modes: Describes operation in different modes such as AUTO, MANUAL, SS, EXT TRIG, and Freeze Mode.
- Troubleshooting: Although not explicitly detailed in this section, the manual contains sections on electrical adjustments and exploded views for service.
Refer to specific sections for detailed procedures on each function.
Troubleshooting and error codes
| Display | Meaning |
|---|---|
| ABB OK | Automatic black balance adjustment finished correctly. |
| ABB NG | Automatic black balance adjustment cannot be performed because the lens iris is open. Close the lens iris. |
| CLOSE LENS | Automatic black balance adjustment cannot be performed. |
| ABB NG | Operate the automatic black balance again. |
| AWB OK | Automatic white balance adjustment finished correctly. |
| AWB NG LEVEL LOW | Automatic white balance adjustment cannot be performed because the video level is too low. Set the video level properly. |
| AWB NG LEVEL HIGH | Automatic white balance adjustment cannot be performed because the video level is too high. Set the video level properly. |
| AWB NG C.TEMP LOW | Automatic white balance adjustment cannot be performed because the color temperature is too low. If the C.TEMP is set to 5600K, set to 3200K. If the message appears with the C.TEMP set to 3200K, change the illumination or use a color temperature conversion filter. |
| AWB NG C.TEMP HIGH | Automatic white balance adjustment cannot be performed because the color temperature is too high. If the C.TEMP is set to 3200K, set to 5600K. If the message appears with the C.TEMP set to 5600K, change the illumination or use the color temperature conversion filter. |
| AWB NG NOT AVAILABLE | Automatic white balance adjustment cannot be performed because the shutter speed mode is EXT TRIG mode. Automatic white balance adjustment cannot be performed for other reasons. Such as no white area is included in an object, etc. |
| SHD OK | Automatic shading correction operation terminated correctly. |
| SHD OK LIMIT | Automatic shading correction operation terminated, however, the correction necessary exceeds the camera's range so the maximum possible value is applied. |
| SHD NG LEVEL LOW | Automatic shading correction cannot be performed because the video level is too low. Set the video level properly. |
| SHD NG LEVEL HIGH | Automatic shading correction cannot be performed because the video level is too high. Set the video level properly. |
| SHD NG NOT AVAILABLE | Automatic shading correction operation cannot be performed because the shutter speed mode is the EXT TRIG mode or the SS long period exposure mode. |
