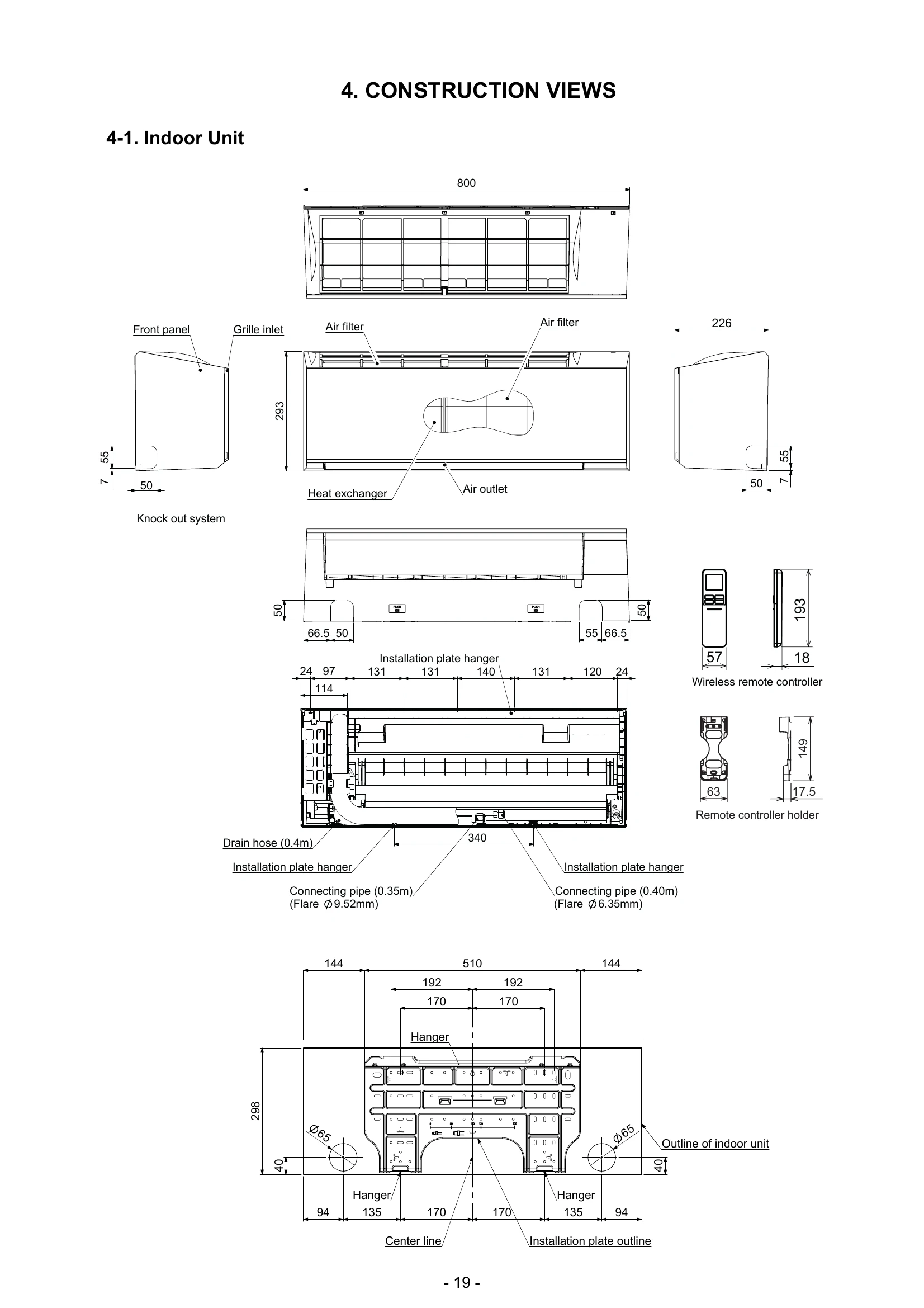

Provides detailed information on the operation and maintenance of Toshiba Split Type Air Conditioners, including safety precautions, specifications, refrigerant handling (R32), construction views, wiring diagrams, and exploded views for various indoor and outdoor unit models. It covers installation, troubleshooting, and parts replacement procedures.
Troubleshooting and error codes
| No. | Part name | Procedures | Remarks |
|---|---|---|---|
| 4 | Side cabinet | 1. Side cabinet (right) 1) Perform step 1 in 2 and all the steps in 3. 2) Remove the fixing screw (ST2TØ4 × 10L 4 pcs.) used for securing the side cabinet to the bottom plate and valve fixing panel. 2. Side cabinet (left) 1) Perform step 1 in 2. 2) Remove the fixing screw (ST2TØ4 × 10L 1 pc.) used to secure the side cabinet (left) onto the heat exchanger. 3) Remove the fixing screw (ST2TØ4 × 10L 2 pcs.) used for securing the side cabinet to the bottom plate and heat exchanger. |
Hook the claw noto the bottom plate The back body section hooked onto the bottom plate here. Detail A Detail B Detail C |
| 5 | Fan motor | 1) Perform work of item 1 of 1 and 2. 2) Remove the flange nut fixing the fan motor and the propeller. Flange nut is loosened by turning clockwise. (To tighten the flange nut, turn counterclockwise.) 3) Remove the propeller fan. 4) Disconnect the connector for fan motor from the inverter. 5) Remove the fixing screws (4 pcs.) holding by hands so that the fan motor does not fall. * Precautions when assembling the fan motor Tighten the flange nut using a tightening torque of 4.9 N•m. |
Propeller fan Fan motor Flange nut |
