Manual for PVM-14M2U

Manual for PVM-14M2U

Brand: SONY

Category: Video Camera

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:56 p.m.

Manual Publish Date: 1997.4

Picture Features:

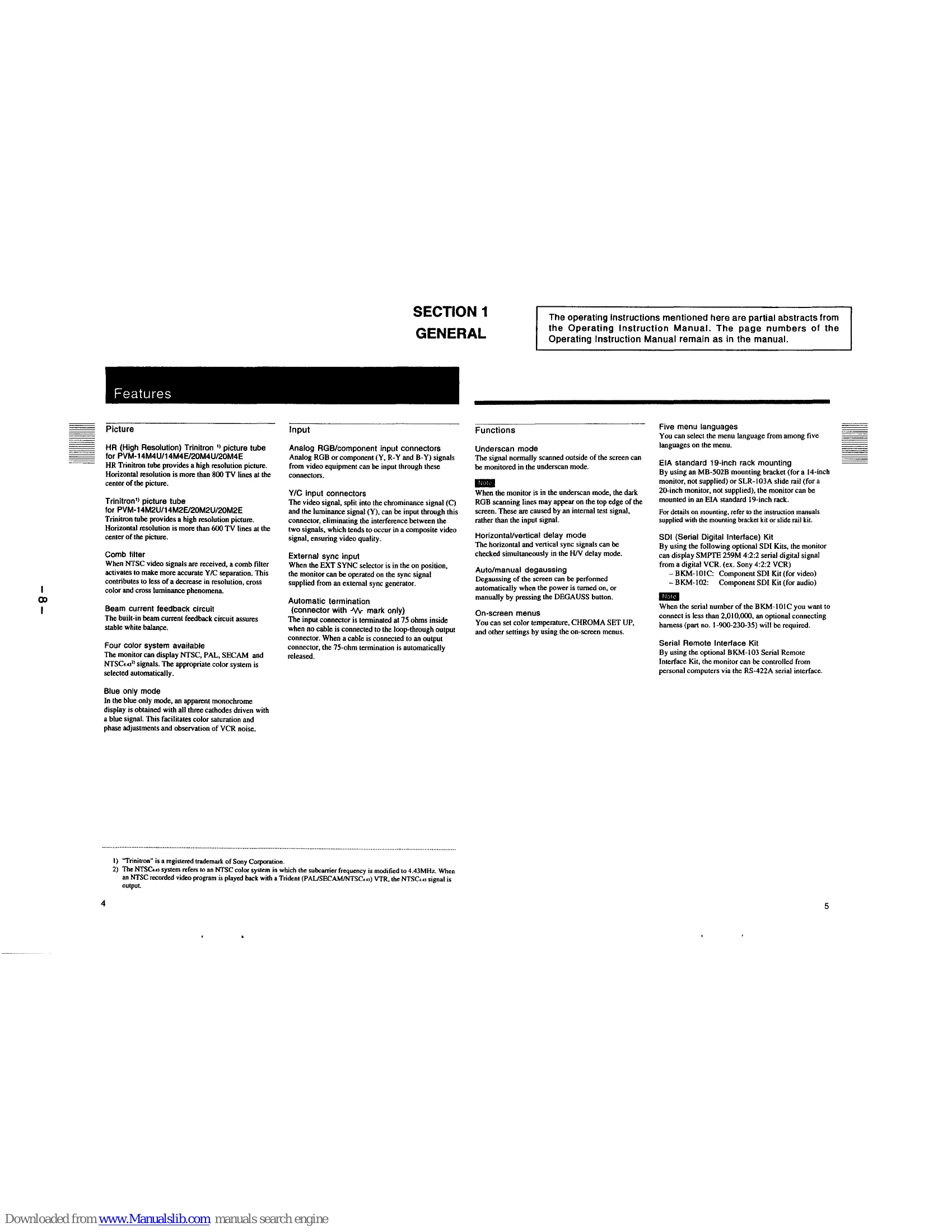

  • HR (High Resolution) Trinitron picture tube for high resolution.
  • Comb filter for accurate Y/C separation, reducing cross color and luminance phenomena.
  • Beam current feedback circuit for stable white balance.
  • Supports NTSC, PAL, SECAM, and NTSC4.43 signals, with automatic color system selection.
  • Blue only mode for color saturation and phase adjustment.

Input/Functions:

  • Analog RGB/component and Y/C input connectors for video equipment.
  • External sync input option.
  • Automatic termination for input connectors.
  • Underscan mode for monitoring signals outside the screen.
  • H/V delay mode for checking sync signals.
  • Auto/manual degaussing.
  • On-screen menus for settings and adjustments.
  • Multiple menu languages available.
  • Rack mounting and SDI kit options.
  • Serial remote interface kit for computer control.

Front Panel Controls:

  • Tally lamp, Power switch, Remote indicator, Volume, Contrast, Phase, Chroma, Brightness, and Aperture controls.
  • Menu navigation buttons (MENU/EXIT, ENTER/SELECT, +/- buttons).
  • Selector buttons for 16:9, H/V Delay, Underscan, Blue Only, Degauss, EXT SYNC, LINE/RGB, C/SDI, B/COMPONENT, A/RGB.
