Brand: SONY
Category: Audio
Document Type: Parts/Service
Language: EN
Parts/Service for CDP-XA2ES
Uploaded: Nov. 21, 2025, 8:09 p.m.
Manual Publish Date: 1995-06-01
Warranty Information
No specific warranty period is mentioned in this service manual.
Laser Component: Semiconductor laser (780-790 nm).
Frequency Response: 2 Hz to 20 kHz ± 0.3 dB.
Dynamic Range: More than 100 dB.
Harmonic Distortion: Less than 0.0023%.
Outputs:
- LINE OUT (FIXED): Phono jacks, 2 V max output level, over 10 kilohms load impedance.
- LINE OUT (VARIABLE): Phono jacks, 2 V max output level, over 50 kilohms load impedance.
- DIGITAL OUT (OPTICAL): Optical output connector, -18 dBm, wavelength 660 nm.
- PHONES: Stereo phone jack, 28 mW max output, 32 ohms load impedance.

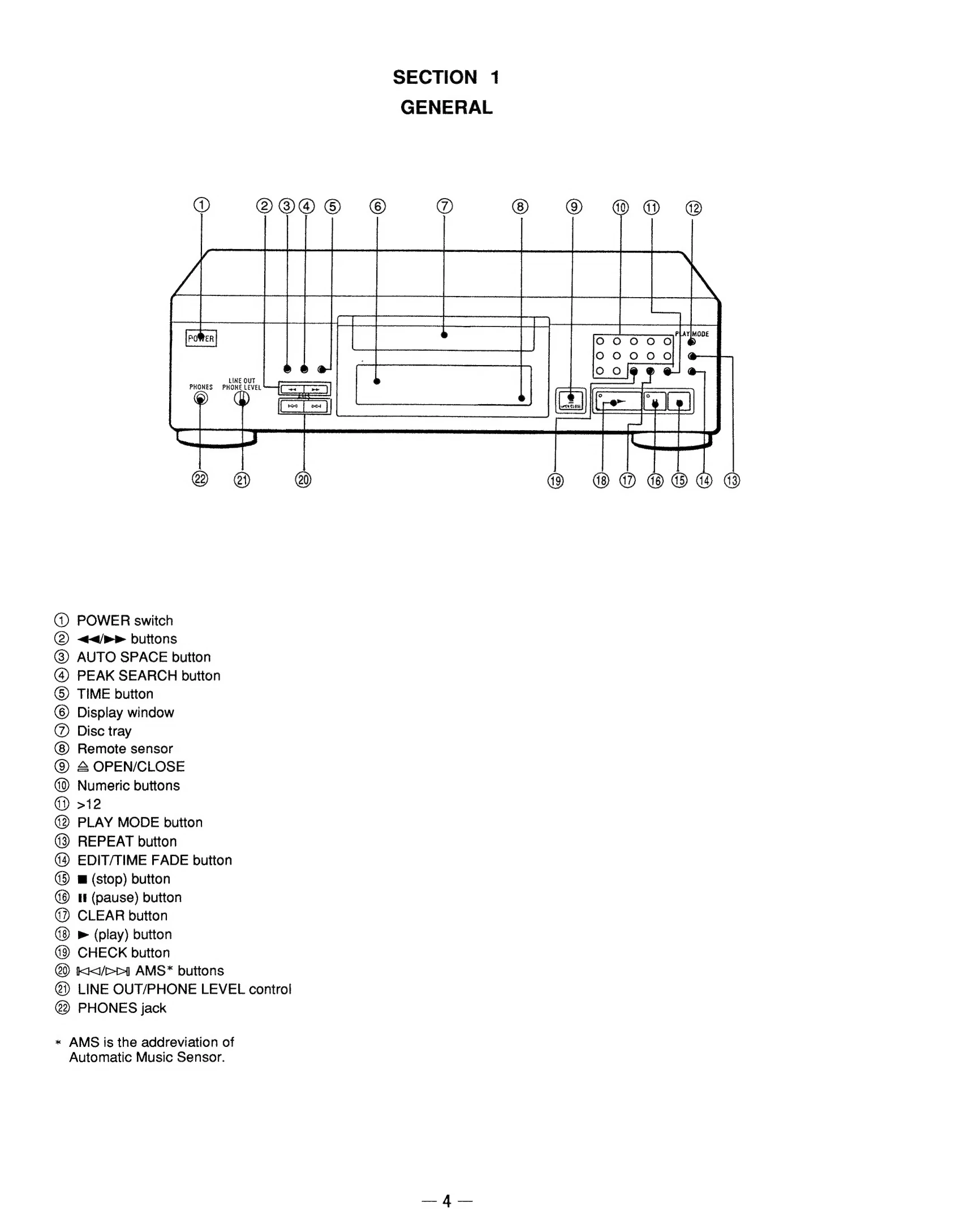

General Specifications:
- Power Requirements: Vary by region (Europe, Australia, Other countries).
- Power Consumption: 17 W.
- Dimensions: 430 x 125 x 345 mm (w/h/d).
- Mass: 6.0 kg (13 lbs 4 oz).
Supplied Accessories: Audio cord, remote commander, Sony SUM-3 (NS) batteries.
Handling Precautions: Special care is required when handling the optical pick-up block due to electrostatic breakdown. Avoid direct exposure to the laser beam.
Disassembly: Procedures for loading panel, front panel, panels (L, M, R), and base unit are detailed.
Electrical Block Checking: Tests include S Curve, E-F Balance, RF Level, and RF PLL Free-run Frequency checks.
Diagrams: Includes circuit board locations, printed wiring boards, schematic diagrams, and IC block diagrams.
Exploded Views: Detailed diagrams of case/chassis, front panel, CD mechanism, and base unit.
Electrical Parts List: Comprehensive list of components by board.
Troubleshooting and error codes
| S Curve Check | E-F Balance Check | RF Level Check |
|---|---|---|
| Test Point: TP (FE) on BD board. Connect between TP (FEI) and TP (VC). Power on. Insert YEDS-18 disc. Actuate focus search. Check for symmetrical S-curve between A and B, with peak-to-peak level within 3±1Vp-p. For A:B ratio, check if it's more than 10:7. Sweep time should be long. | Test Point: TP (ADJ) to ground. Connect oscilloscope to TP (TE) on BD board. Power on. Insert YEDS-18 disc. Press CHECK button (tracking/sledding servos OFF). Check level B against A (DC voltage). A/B x 100 must be less than ±20%. Press CLEAR button (tracking/sledding servos ON). Check if C (DC voltage) is almost equal to A. | Test Point: TP (RF) on BD board. Power on. Check RF signal waveform is clear and RF signal level is correct or not. A clear waveform has a distinguishable shape at the center. Level: 1.2 +0.25/-0.20 Vp-p. |
| RF PLL Free-run Frequency Check |
|---|
| Connect frequency counter to test point (PLCK). Power on. Insert YEDS-18 disc. Reading on frequency counter should be 4.3218MHz. |
