Brand: SILVERCREST
Category: Electronics
Document Type: Manual
Language: EN
Manual for DP-5400x
Uploaded: Nov. 21, 2025, 8:20 p.m.
Warranty Information
A 36-month warranty from the date of purchase is provided.

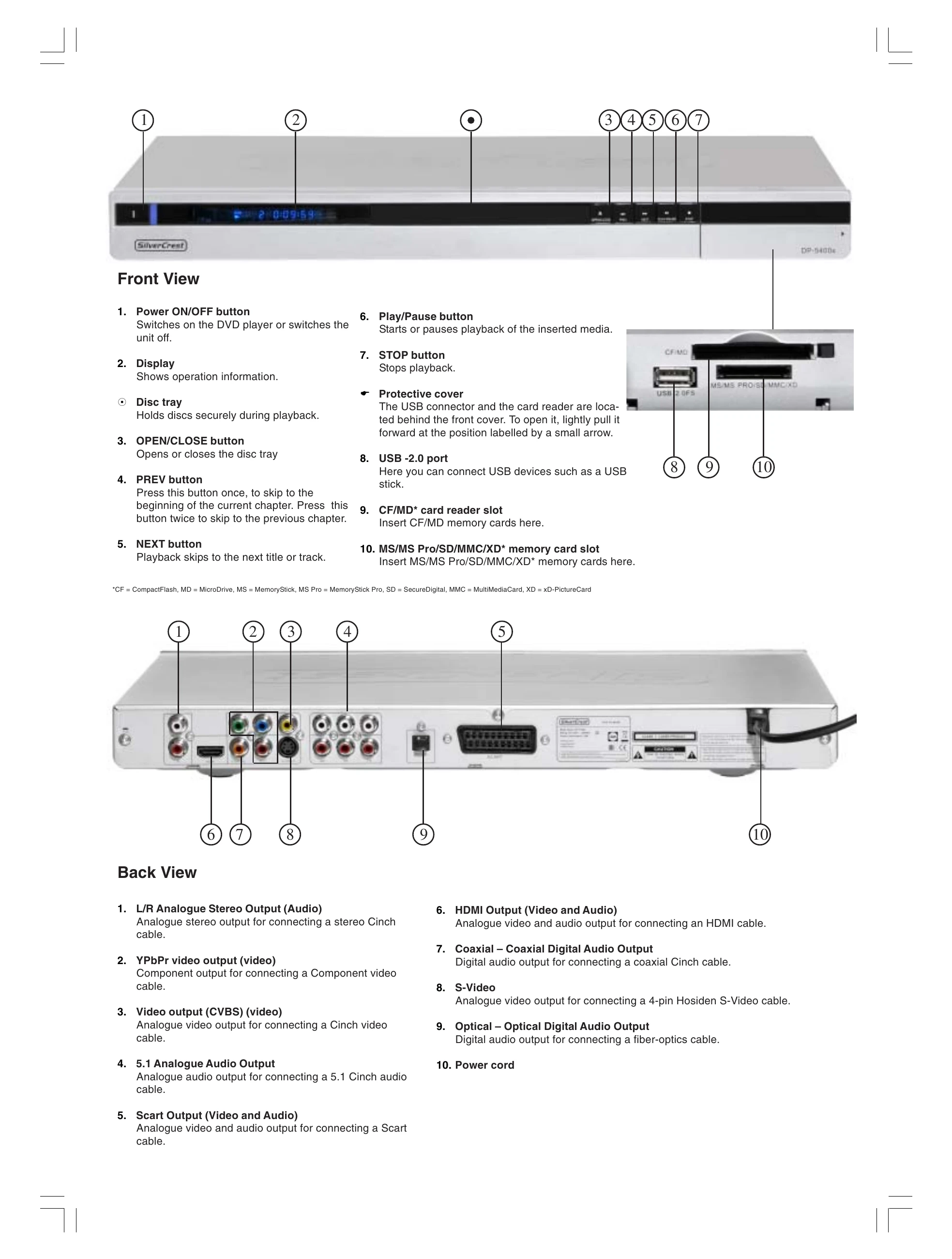

Front View Controls:
- Power ON/OFF: Switches the unit on or off.
- Display: Shows operation information.
- OPEN/CLOSE: Opens or closes the disc tray.
- PREV/NEXT: Skips to previous/next chapter or track.
- Play/Pause: Starts or pauses playback.
- STOP: Stops playback.
- USB & Card Slots: Connect USB devices or insert memory cards.
Back Panel Connectors:
- Audio Outputs: Analogue Stereo (L/R), 5.1 Analogue.
- Video Outputs: Component (YPbPr), Composite (CVBS), SCART, HDMI, S-Video.
- Digital Audio Outputs: Coaxial, Optical.
- Power Cord: Connects to mains power.
Remote Control Functions:
- Numeric Buttons: For direct selection.
- Navigation Buttons: Up, Down, Left, Right, ENTER.
- Playback Controls: Play/Pause, STOP, FWD, REV, STEP, SLOW.
- Menu/Setup: Access to menus and settings.
- Special Functions: Mute, Angle, Zoom, Subtitle, Audio, Repeat, Bookmark, HD/Res, V-Mode.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| No picture displayed | Incorrect video output selected on the remote control. | Press the V-Mode button (button 37) on the remote control to cycle through the available video outputs until the picture is displayed. |
| No sound | Incorrect audio output selected or volume muted. | Check audio cable connections. Press the Vol +/- buttons to adjust volume. Press the Mute button (32) to unmute. Check audio settings in the menu. |
| Disc not playing | Disc is dirty, damaged, or incompatible. Incorrect region code. | Clean the disc. Try a different disc. Ensure the disc is compatible (see page 8). Check region code information (page 7). |
| Remote control not working | Batteries low or inserted incorrectly. Obstruction between remote and sensor. | Replace batteries (type AAA 1.5V), ensuring correct polarity. Ensure a clear line of sight to the front panel sensor. Do not place objects on the remote. |
| Player not powering on | Power cord not connected properly. | Ensure the power cord is securely plugged into both the player and the wall outlet. |
