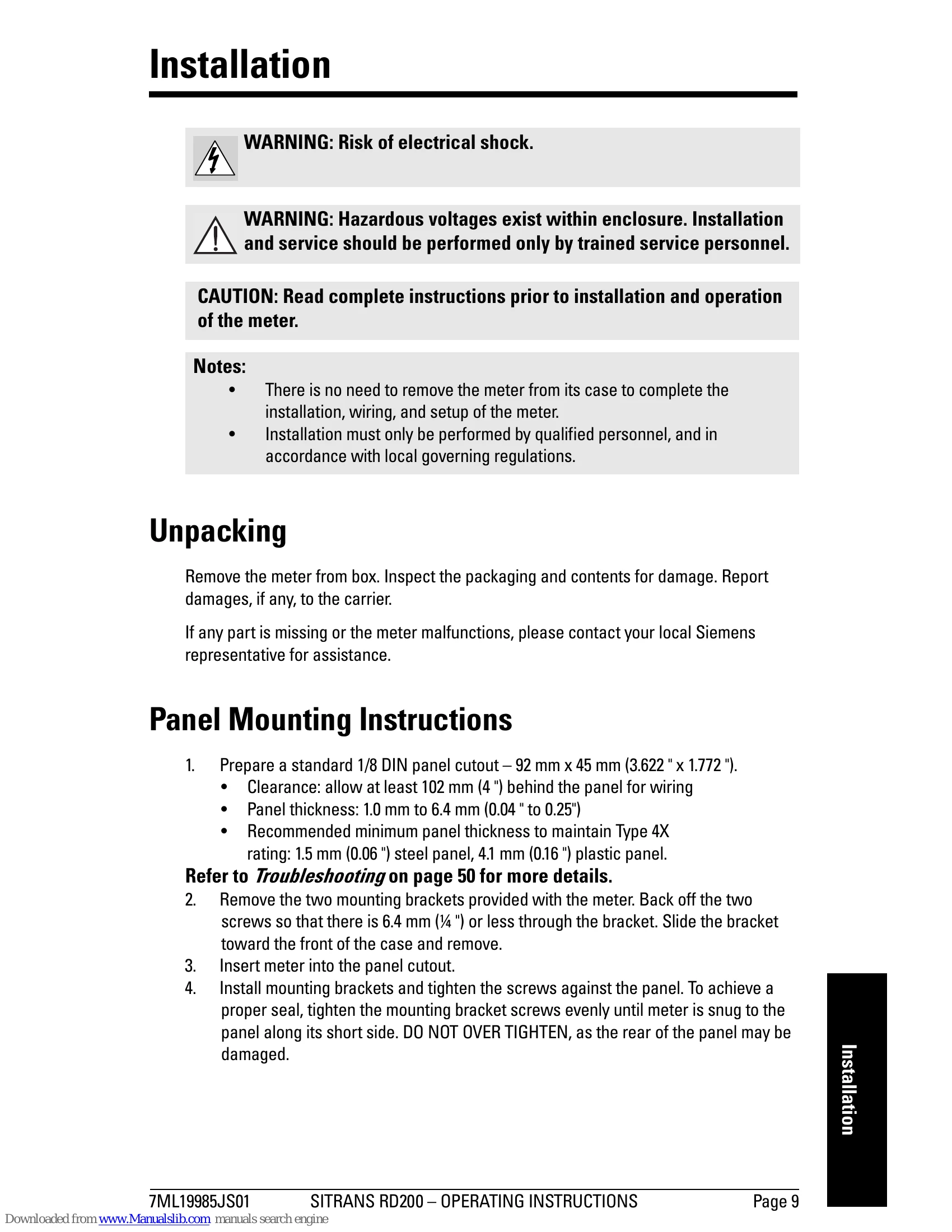

Manual for SITRANS RD200
Uploaded: Nov. 21, 2025, 7:15 p.m.
Manual Publish Date: 2012-11-01
Warranty Information
None
The SITRANS RD200 is a universal input, panel mount remote digital display for process instrumentation. It accepts various input signals (current, voltage, thermocouple, RTD) and features four front panel buttons for easy setup and programming. Optional features include a 24 V DC transmitter power supply and two relays for alarm indication or process control. The device supports 4-20 mA isolated output and Modbus RTU serial communication for system integration.
Key operations include:
- Setting up the meter for different input types (SEtu).
- Configuring input signals (inPt), decimal points (dEc.P), and temperature scales (FC).
- Setting up relay operations (rELY) for alarms or control.
- Scaling analog outputs (Aout) and inputs (ScAL).
- Advanced features like offset adjustment, noise filtering, and internal calibration.
- Serial communication setup for Modbus RTU and ASCII.
