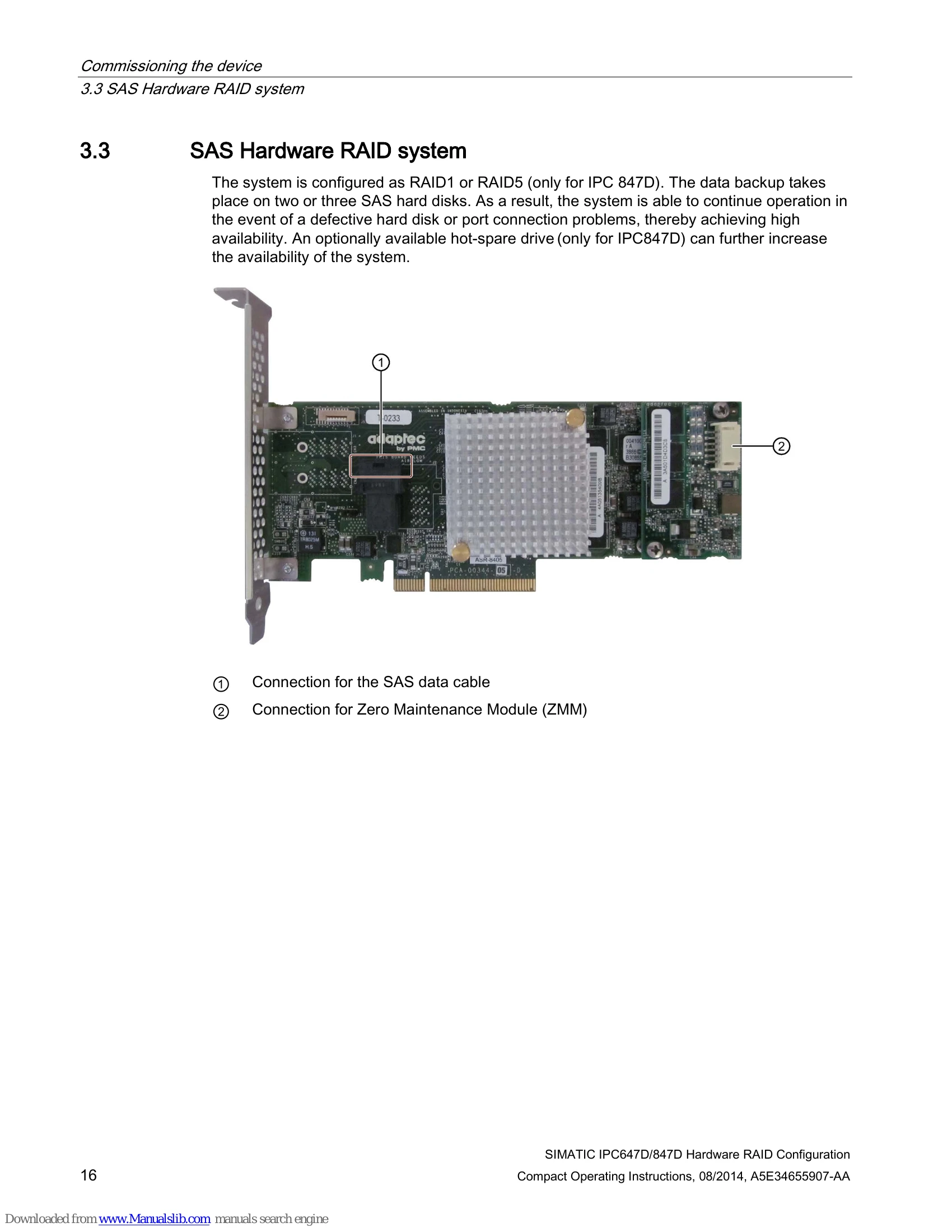

These Compact Operating Instructions describe the special functions of a SIMATIC IPC647D and IPC847D as a Hardware RAID system based on a PCIe hardware RAID adapter card with SAS interface for hard disks. They are intended both for programming and testing personnel who commission the device itself and connect it to other units (automation systems, programming devices) as well as for service and maintenance personnel who replace the add-on card or perform troubleshooting. Observe all safety information in the basic SIMATIC IPC647D and IPC847D Operating Instructions. The information in these Compact Operating Instructions takes precedence over statements in the basic Operating Instructions, the release notes, and online help.

Troubleshooting and error codes

Problem	Possible cause	Possible remedy
After changing the hard disk, the system does not boot from the RAID system	RAID system does not have highest boot priority	BIOS setup, boot menu: Permit RAID system in the boot priority Set the RAID system to be first in the boot priority order.
Computer does not boot or "Boot device not found" is displayed	The boot device is not permitted	In the BIOS setup, "Boot" menu, permit the boot device in the boot priority
	The boot device is not in first place of the boot priority in the BIOS setup	In the BIOS setup, "Boot" menu, change the boot priority of the boot device
	The boot data carrier is set up with GPT and UEFI boot is deactivated in the BIOS setup	Activate UEFI boot in the BIOS setup.
RAID software cannot be started	No Windows password	Uninstall and then reinstall RAID software
RAID software cannot be started	The Windows password was set up subsequently	Increase main memory capacity to at least 4 GB.
RAID software displays no details of the RAID system	No Windows password	Uninstall and then reinstall RAID application
RAID software displays no details of the RAID system	The Windows password was set up subsequently	Increase "RaidUpdateFactor" via registry key. For details, see "Installing the RAID controller software (Page 33)".
Monitoring software signals implausible states	Sampling rate of the SIMATIC monitoring software not reduced	Increase "RaidUpdateFactor" via registry key. For details, see "Installing the RAID controller software (Page 33)".
Adaptec Storage Manager software cannot be started	Certificate error	Change address in the link to the Adaptec Storage Manager software to "localhost". Requirement: The certificate is stored in the "Trusted Root Certifica-tion Authorities" certificate store and is not expired.
