Brand: SIEMENS
Category: Control Unit
Document Type: Installation Guide
Language: EN
Installation Guide for RUGGEDCOM RX1500
Uploaded: Nov. 21, 2025, 7:18 p.m.
Manual Publish Date: 2013-12-01
Warranty Information
The product is warranted for five (5) years from the date of purchase.
This guide describes the RUGGEDCOM RX1500, covering its features, installation, commissioning, and technical specifications. It is intended for network technical support personnel, system planners, programmers, and technicians.
Key sections include:

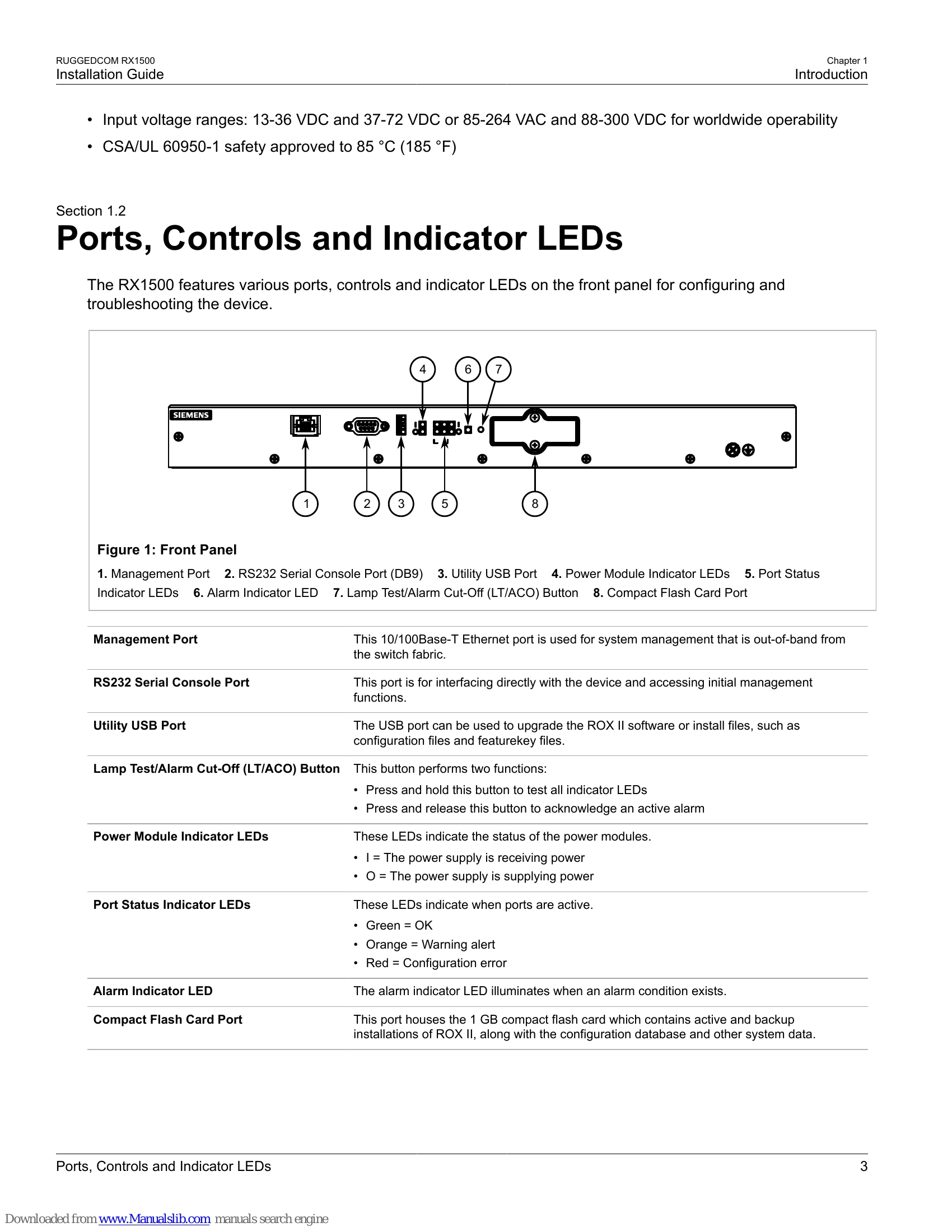

- Introduction: Feature highlights, ports, controls, and LEDs.
- Installing the Device: Mounting methods (rack, DIN rail, panel), connecting power (AC/DC, supplies), grounding, and cabling recommendations.
- Communication Ports: Details on various Ethernet ports.
- Technical Specifications: Power supply, relay, serial, Ethernet, fiber optic, operating environment, APE, and mechanical specs.
- Dimension Drawings: Visual representations of the device dimensions for different mounting types.
- Certification: Agency approvals, FCC compliance, Industry Canada compliance, and EMI/environmental tests.
