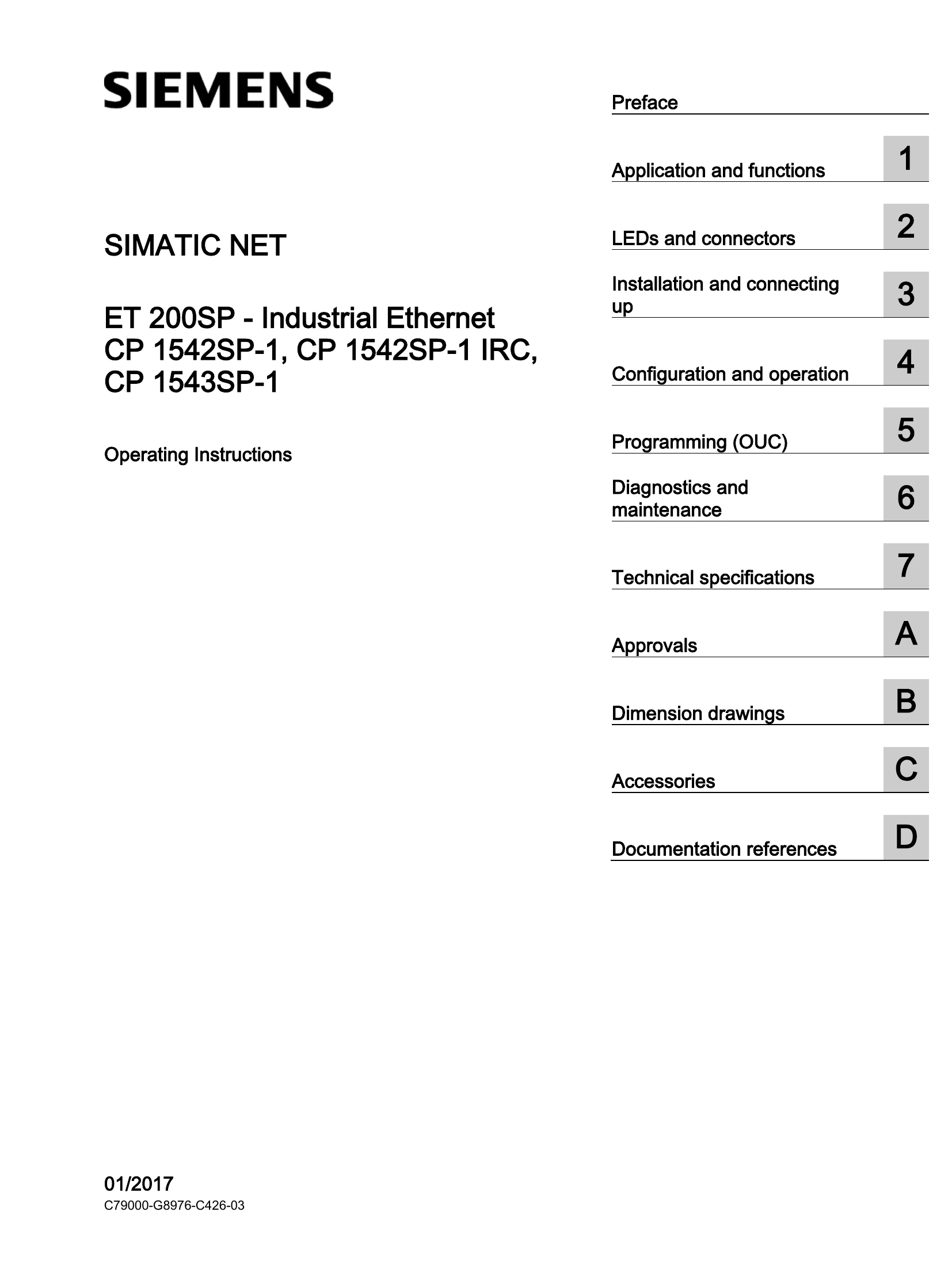

Manual for ET 200SP

Product Overview

This manual provides operating instructions for the SIMATIC NET Communication Processors (CPs): CP 1542SP-1, CP 1542SP-1 IRC, and CP 1543SP-1. These CPs are used to connect the SIMATIC ET 200SP CPU to Industrial Ethernet, offering various communication services including S7 communication, PG/OP communication, Open User Communication (OUC), and telecontrol communication for the CP 1542SP-1 IRC. The CP 1543SP-1 enhances network security with firewall and VPN capabilities.

Key Functions

• CP 1542SP-1: Provides an additional Ethernet connection for the ET 200SP.
• CP 1542SP-1 IRC: Supports telecontrol communication using protocols like TeleControl Basic, DNP3, and IEC 60870-5-104 for connecting to control centers.
• CP 1543SP-1: Offers advanced security features such as firewall and VPN for protected network access.

General Information

The manual details product components, application scenarios, communication services, telecontrol protocols, security functions, configuration limits, hardware/software requirements, and configuration examples. It also includes technical specifications, approvals, dimension drawings, accessories, and documentation references.
