Brand: SIEMENS
Category: Control Unit
Document Type: Manual
Language: EN

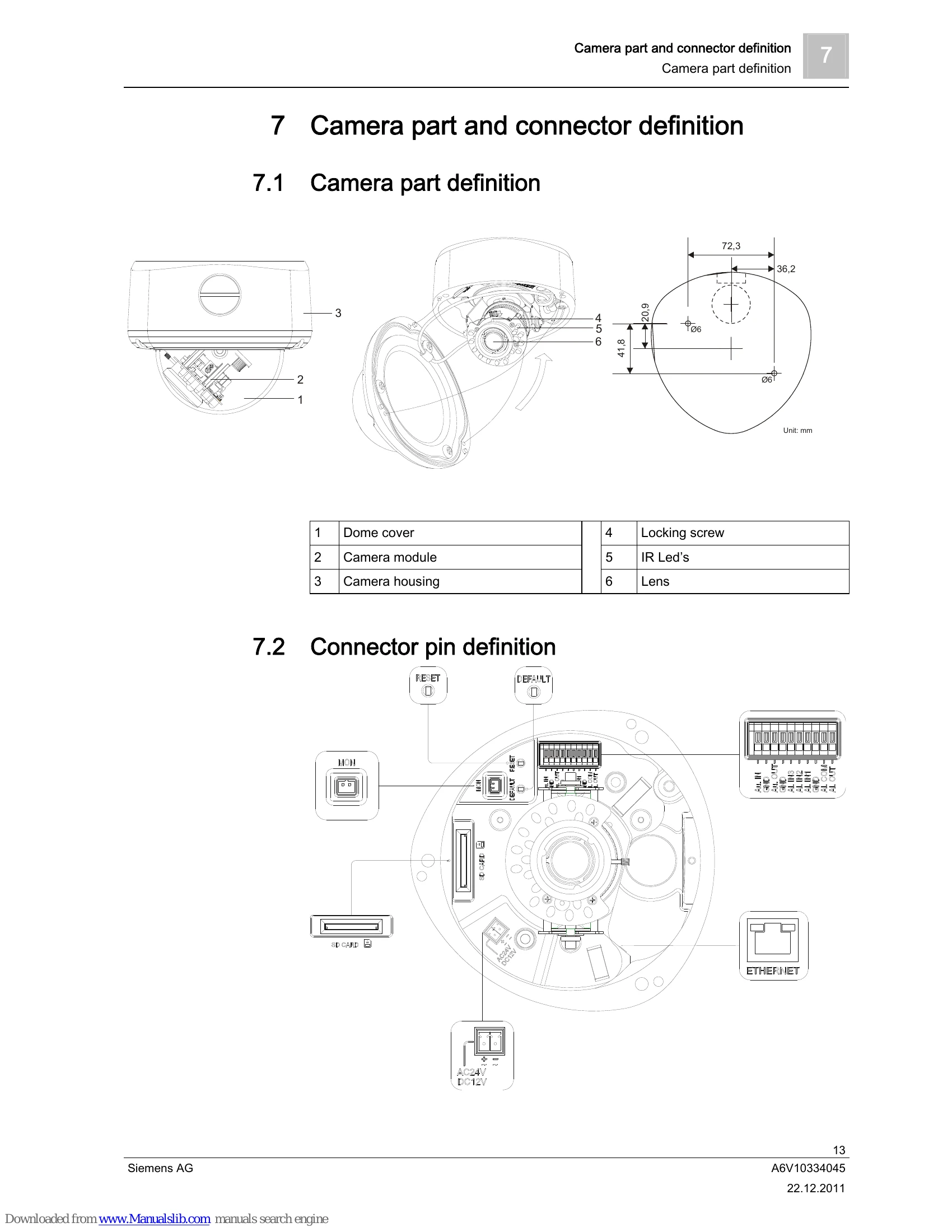

Manual for CVMS2025-IR
Uploaded: Nov. 21, 2025, 8:13 p.m.
Manual Publish Date: 2011-12-22
Warranty Information
No warranty information is available in the provided document sections.
- Connecting the camera and personal computer via network:
- Set IP address manually or automatically via DHCP server.
- Configure network settings (crossover or hub/switch/router connection).
- Connect LAN cable and power.
- Set IP address of personal computer in the same subnet.
- Using the camera search application "Webcam IP Manager":
- Install "Webcam IP Manager" from CD.
- Search for cameras, double-click to log in with administrator credentials.
- View camera image in browser using URL http://[IP Address]/.
- Viewing and listening:
- Ensure browser settings are configured for proxy server (if applicable) and ActiveX controls are enabled.
- Log in using administrator credentials to view live images.
- System Settings:
- Update firmware, configure settings (import/export), set factory defaults, and reboot camera.
- Monitor temperature and view system status.
- Log Management:
- Access event, system, and user logs.
- Delete logs as needed.
Troubleshooting and error codes
| Symptom | Possible Cause | Remedy |
|---|---|---|
| Camera does not operate | Power supply problem | Check power supply. |
| Image is unclear | Lens is dirty | Clean the lens area carefully. |
| Camera is not detected on network | Incorrect IP address configuration | Verify IP address settings. |
| Network connection issue | Check LAN cable and network switch/router. | |
| Firmware update fails | Power disconnected during update | Do not disconnect power during SW update. Send camera to Siemens maintenance. |
