Brand: SIEMENS
Category: Control Unit
Document Type: Installation Guide
Language: EN
Installation Guide for CCDS1415-ST
Uploaded: Nov. 21, 2025, 9:09 p.m.
Manual Publish Date: 2006-08-01
Warranty Information
The manual does not contain explicit warranty information.
- Functional Description: The Solaris T™ Dome offers high accuracy, speed, and configurability. It can be used for internal and external applications. Features include colour/day-night versions with privacy masks, fast preset acquisition (under 1 second), tours, patterns, presets, sector texts, and 7 local alarms plus tamper.
- Unit Components: The system comprises two main parts: the Dome Unit (camera and positioning system) and the External Termination Unit (XTU).
- XTU Functionality: The XTU handles power, video, telemetry, and alarm cable terminations, and provides low voltage power to the Dome. It features a menu-driven LCD for address and protocol selection, eliminating the need to open the Dome for most configurations.
- Connectivity: A 10m Cat-5 cable connects the XTU to the Dome. The XTU supports multiple protocols including Siemens CCDA, Molynx, Ernitec, Pelco D/P, VCL, Videmech Universal, Photon, and PCCON over RS485.
- OSD Features: On-screen display (OSD) menus allow for flexible configuration, including alarm/idle state actions, function assignment to presets, programmable video launch amplifier, on-screen diagnostics, installer programmable text, and camera module configuration.

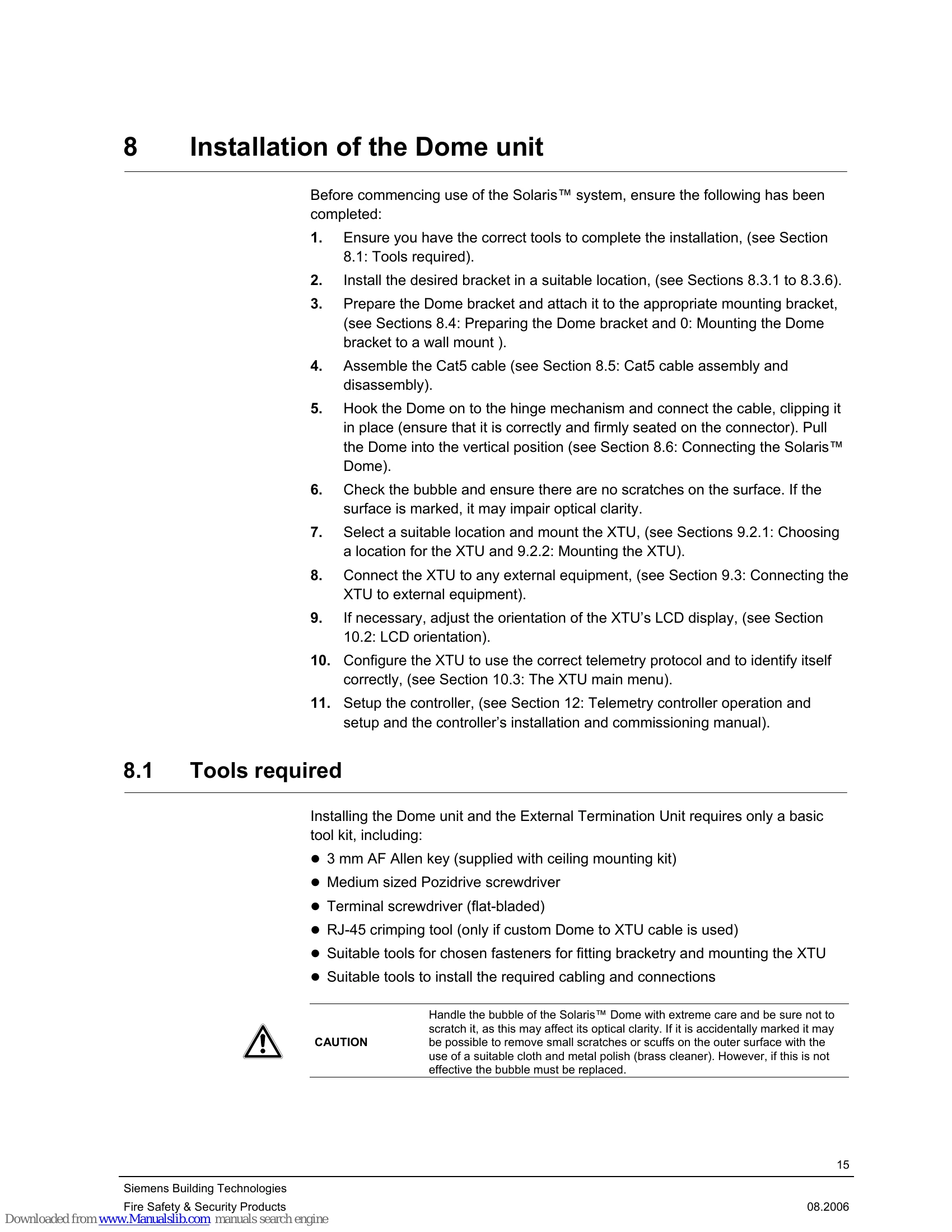

- Installation Overview: The manual details installation procedures for the Dome unit and the XTU, including various mounting bracket options and cable assembly.
Troubleshooting and error codes
| Operation | User action | Notes |
|---|---|---|
| Return Preset Sequence Information | @39 | Returns preset sequence last downloaded to the XTU. Note that this data is the last which was sent to the XTU and, for example if the sequence was subsequently re-programmed using the OSD, it may not be the same as the sequence stored in the Dome unit. |
| Return Preset Tour Information | @40 | Returns preset tour last downloaded to the XTU. Note that this data is the last which was sent to the XTU and, for example if the tour was subsequently re-programmed using the OSD, it may not be the same as the sequence stored in the Dome unit. |
| Camera Function All On | @41, n | Supports Lamps (n=6), LensSlow (7), AutoFocus (8). |
| Camera Function All Off | @42, n | Supports Lamps (n=6), LensSlow (7), AutoFocus (8). |
| Camera Setup (OSD menu command) | @47, n | Sends the OSD menu command for Set (n=0), Up (1), Down (2), Right (3), Left (4), Menu (5). |
| Return Software Version | @55 | Returns XTU software version number (major and minor numbers). |
| OK | Command actioned correctly | |
| ER | Syntax error or parameter error | |
| NC | No control permitted | |
| NI | Command not implemented | |
| CS | Checksum error |
