CHAPTER 1. SPECIFICATION

The HC-4000/HC-4100 is a handheld PC using the Microsoft® Windows® CE 2.0 operating system, similar to Windows™™ 95 and Windows NT 4.0.

Standard applications include Pocket Word, Pocket Excel, Pocket PowerPoint, Windows CE Services 2.0, Pocket Internet Explorer, and Pocket Outlook™.

Additional SHARP applications include Image Editor and Voice Recorder. It also supports IR Data Exchange with SHARP ZR series units.

Key Features:

  • Display: DFSTN LCD, 640 x 240 dots, grayscale, backlight.
  • Memory: 4 MB (HC-4000), 8 MB (HC-4100).
  • ROM: 16 MB.
  • Battery life: Approx. 000 hours for AA alkaline batteries, 000 hours for optional NiMH Rechargeable Battery Pack. Main battery life varies. Backup battery: approx. 1 month (HC-4000), 2 weeks (HC-4100).
  • Dimensions: Open: 186(W)×187(D)x14.1(H) mm. Closed: 186(W)x93.5(D)x26.4(H) mm.
  • Weight: Approx. 410 g including batteries.
  • Interfaces: RS-232C, RJ-11, Infrared port (IrDA compliant), PC Card slot (Type II).
  • Internal Fax/Modem: 33.6 kbps data, 9.6 kbps fax.

CHAPTER 3. NOTE FOR SERVICING

Caution: The unit uses PSRAM which requires a standby current 20 times greater than SRAM. Power supply to PSRAM is halted during shipment setting.

Important: Do not leave the backup battery without treatment during servicing.

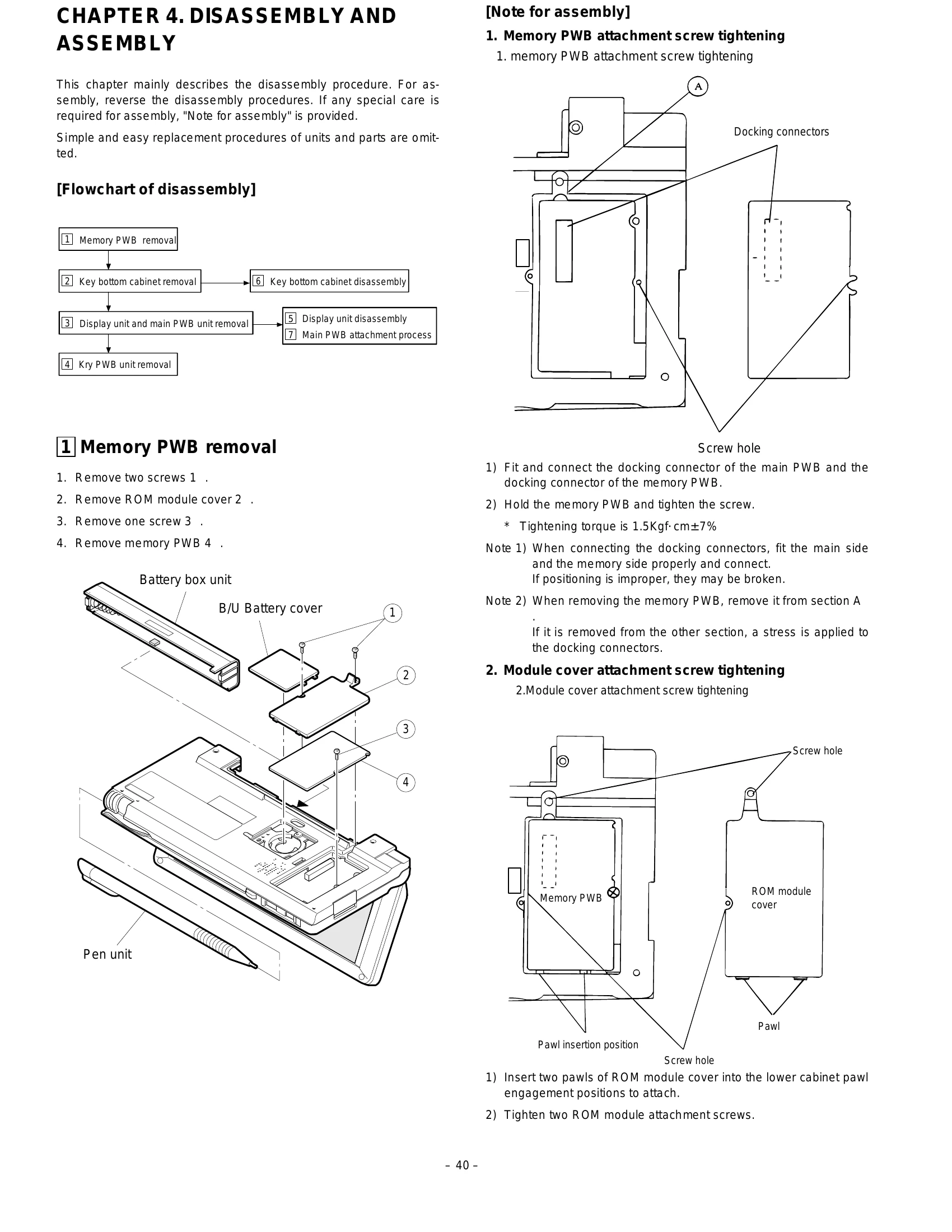

Data Saving: Before disassembling, diagnostic, or rewriting flash EEPROM, save user data. After servicing, set the clock and return to user.

Shipment Setting: Select "40 DISABLE BACKUP BATTERY" to cut power to VRAM.

Resetting the HC-4000/4100: Press the RESET button with the stylus if the unit stops responding. A full reset procedure is available if the problem persists, but will erase all data.

Battery Replacement: The unit warns when batteries are low. Replace main batteries promptly. If main batteries are depleted, backup battery drains faster and data loss can occur. Replace backup battery first if both low warnings appear.

Caution: Keep batteries away from children. Use only specified battery types to avoid explosion risk. Do not disassemble or dispose of batteries in fire.

Troubleshooting and error codes

Causes of errors on the unit side Explanation
(1) SIO ERROR!!: The communication conditions are not proper. Time-out (About 5 min). Repeat the procedures again.
(2) ROM VER ERROR!!: The ROM version of ZR-3000/3500X does not correspond to the patch data.
(3) PATCH VER ERROR!!: The PATCH version of ZR-3000/3500X is later than or the same as the target patch data.
(4) LOW BATTERY!!: When ZR-3000/3500X is in low battery.
(5) ERROR!!: The other errors than the above.
