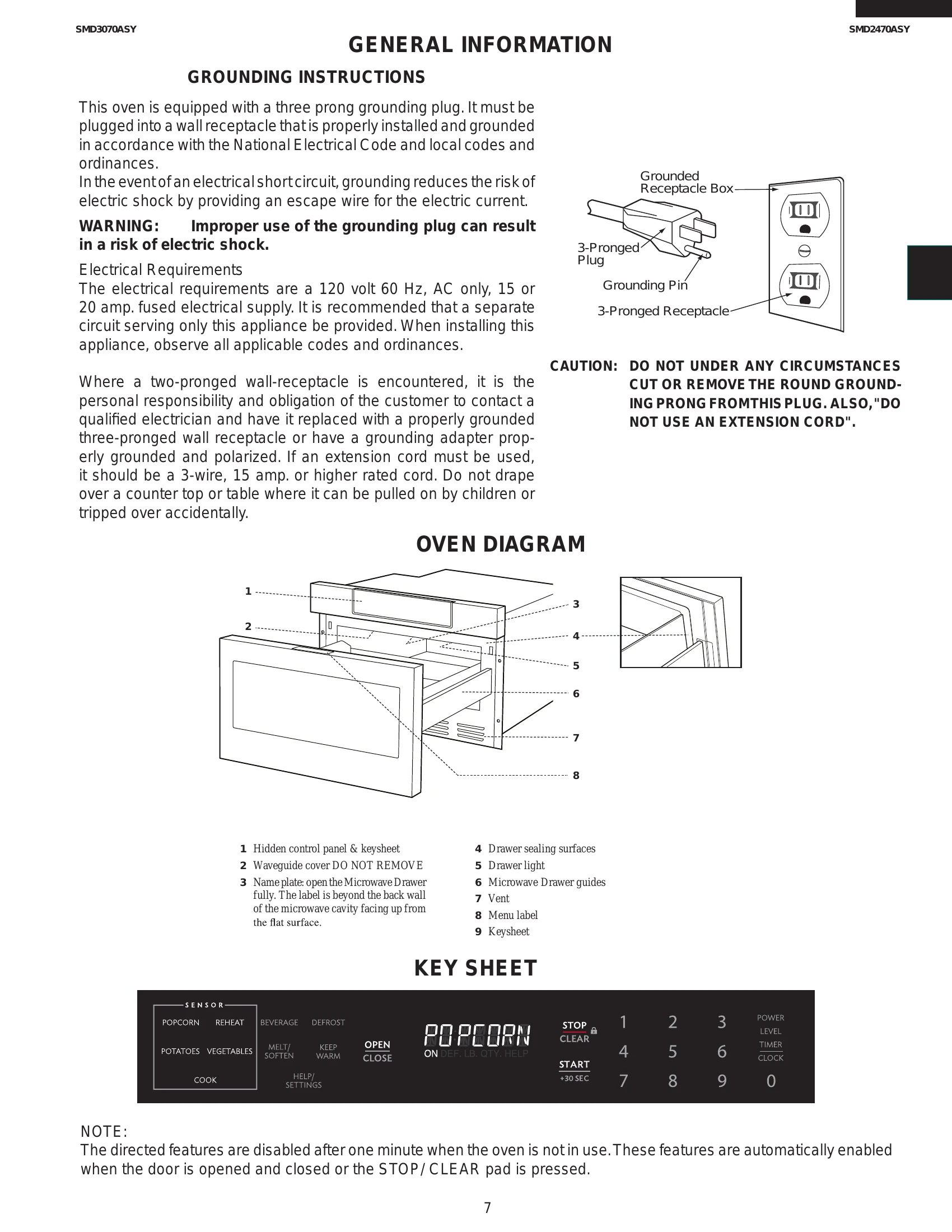

Manual for SMD2470ASY
Uploaded: Nov. 21, 2025, 7:41 p.m.
Manual Publish Date: 2016-01-01
Warranty Information
Warranty information is not explicitly detailed in the provided manual excerpt.
The Sharp Microwave Drawer is designed for convenient operation. It features a touch control system with various cooking modes, including sensor cooking which automatically adjusts time and power based on food moisture. For manual cooking, users can select power levels and cooking times using the number pads and power level buttons. The drawer design includes safety interlocks to prevent operation when open and a door seal to minimize microwave leakage. After cooking, the oven reverts to an OFF condition.
Troubleshooting and error codes
| condition | POSSIBLE CAUSE AND DEFECTIVE PARTS | TEST PROCEDURE REFERENCE LETTER |
|---|---|---|
| OFF condition | Home fuse or circuit breaker blows when power cord is plugged into wall receptacle | A |
| OFF condition | Monitor fuse blows when power cord is plugged into wall receptacle | B |
| OFF condition | All letters and indicators do not appear in display when power cord is first plugged into wall outlet. | C |
| OFF condition | Display does not operate properly when STOP/CLEAR key is touched. (Buzzer should sound and ":" or time of day should appear in display.) | D |
| OFF condition | Drawer does not open/close | E |
| cooking condition | Oven lamp does not light when door is opened. | F |
| cooking condition | Oven lamp does not go out when door is closed. | G |
| cooking condition | Oven lamp lights but fan motor and stirrer motor do not operate. | H |
| cooking condition | Oven does not go into cook cycle when START pad is touched | I&J |
| cooking condition | Oven seems to be operating but little or no heat is produced in oven load. (Food incompletely cooked or not cooked at all at end of cook cycle.) | K |
| cooking condition | Oven goes into a cook cycle but extremely uneven heating is produced in oven load (food). | L |
| cooking condition | Oven does not cook properly when programmed for Cooking Power 5 mode. (Operates properly on Cooking Power 10 (HIGH) mode.) | M |
| cooking condition | Oven goes into DEFROST-but food is not defrosted well. | N |
| Sensor Cooking Condition | AH sensor does not end during sensor cooking condition. (Oven does not shut off after a cup of water is boiling by sensor cooking) | O |
| Sensor Cooking Condition | Oven stops at 16 sec. after starting ("ERROR" is in display") | P |
