Manual for KD-NHH8S7GW2-GR

Manual for KD-NHH8S7GW2-GR

Brand: SHARP

Category: Home Appliances

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:08 p.m.

Warranty Information

The manufacturer will not accept responsibility for damages resulting from incorrect use or transport.

This manual provides instructions for operating the SHARP KD-NHH8S7GW2-GR Tumble Dryer. It covers:

  • Safety Instructions: Electrical safety, children's safety, product safety, correct use, and installation guidelines.
  • Installation: Connecting to a water outlet, adjusting feet, electrical connection, and under-counter installation.

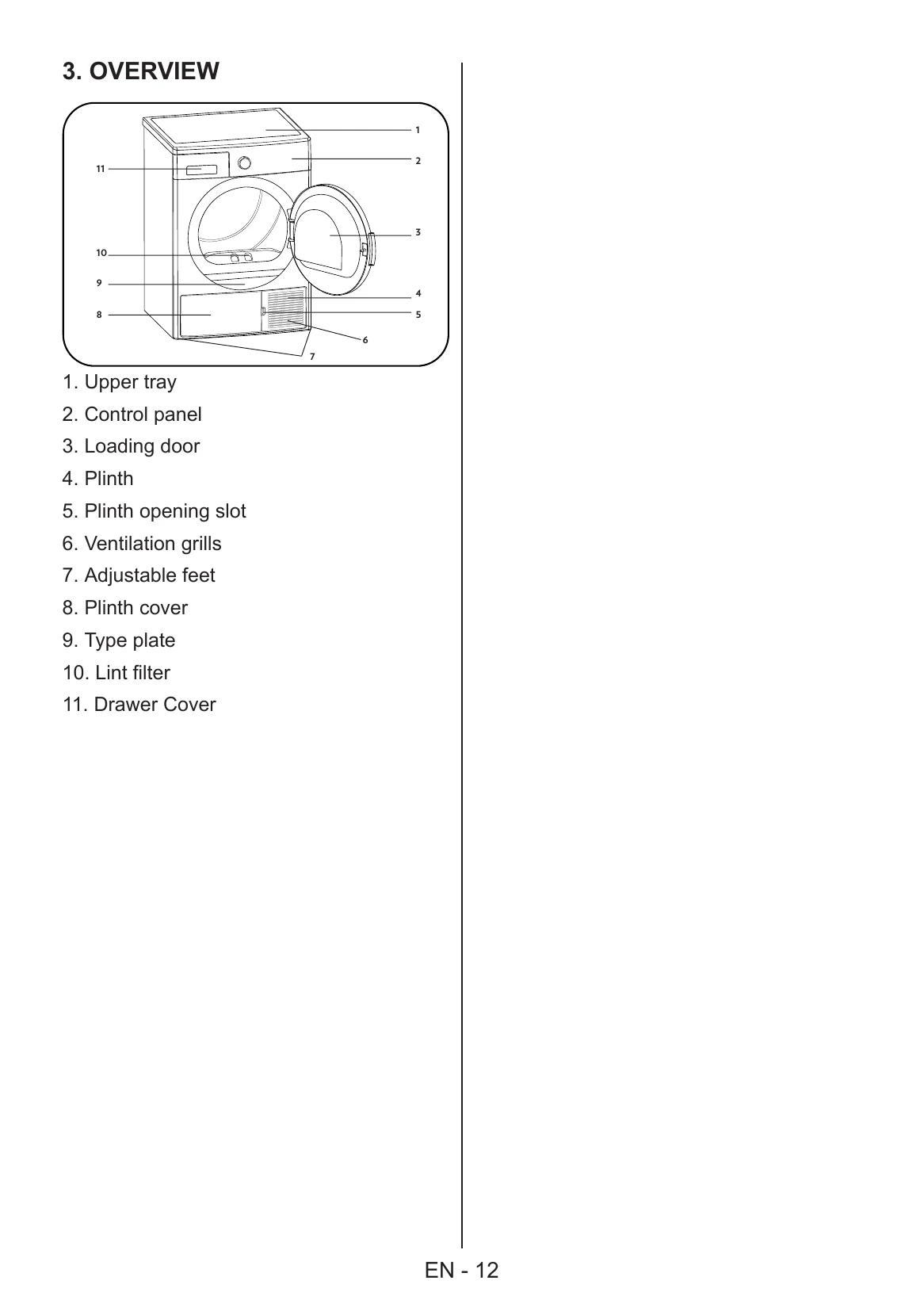

  • Overview: Identification of dryer components.
  • Preparing the Laundry: Sorting, preparing items, and understanding load capacity.
  • Using the Tumble Dryer: Control panel operation, programme selection, auxiliary functions, starting and monitoring programmes.
  • Cleaning and Care: Instructions for cleaning lint filters, water tank, heat exchanger, humidity sensor, and the loading door.
  • Technical Specifications: Details about the dryer's dimensions, power, and other specifications.
  • Troubleshooting: Solutions for common problems and fault warnings.
  • Environmental Information: Packaging disposal and energy efficiency tips.

Always refer to the care labels on your laundry for appropriate drying methods.

Troubleshooting and error codes

PROBLEM REASON SOLUTION
The drying process takes a long time. The surface of the lint filter might be clogged. Wash the filter with lukewarm water.
The heat exchanger might be clogged. Clean the heat exchanger
The ventilation grills in front of the machine might be closed. Open the doors/windows to prevent the room temperature from rising too much.
There might be a layer of limescale on the humidity sensor. Clean the humidity sensor.
The dryer might be overloaded with laundry. Do not overload the dryer.
The laundry might be insufficiently spun. Select a higher spin speed on your washing machine.
Laundry comes out damp at the end of the drying process. The laundry that comes out hot at the end of the drying process generally feels more humid.
The programme used might not be suitable for the type of laundry. Check the care labels on the laundry items, select a suitable programme for the type of laundry and additionally, use the time programmes.
The dryer cannot be opened or the programme cannot be started. The dryer does not get activated when adjusted. The surface of the lint filter might be clogged. Wash the filter with lukewarm water.
The heat exchanger might be clogged. Clean the heat exchanger
The dryer might be overloaded with laundry. Do not overload the dryer.
The laundry might be insufficiently spun. Select a higher spin speed on your washing machine.
The dryer might not be plugged in. Make sure that the plug is fitted in the socket.
The loading door might be open. Make sure that the loading door is properly closed.
You might not have set a programme or pressed the Start/ Pause key. Make sure that the programme has been set and the dryer is not in the Standby (Pause) mode.
Child lock might be active. Deactivate the child lock.
The programme has been interrupted for no reason. The loading door might not be closed properly. Make sure that the loading door is properly closed.
There might have been a power failure. Press the Start/Pause key to start the programme.
The water tank might be full. Empty the water tank.
Clothes have shrunk, felted or deteriorated. The programme used might not be suitable for the type of laundry. Check the care labels on the laundry items, select a suitable programme for the type of laundry.
Water leaking from the loading door. There might be lint accumulated on the inner surfaces of the loading door and on the surfaces of the gasket of the loading door. Clean the inner surfaces of the loading door and the surfaces of the gasket of the loading door.
The loading door opens on its own. The loading door might not be closed properly. Push the loading door until you hear the closing sound.
The water tank warning symbol is on/flashing. The water tank might be full. Empty the water tank.
The water discharge hose might be bent. If the product is connected directly to the water outlet, check the water discharge hose.
The filter cleaning warning symbol is on. The lint filter might be unclean. Clean the filter.
The filter seat might be clogged by lint. Clean the filter seat.
There might be a layer that causes obstruction on the surface of the lint filter. Wash the filter with lukewarm water.
The program can not be started and the filter warning led is blinking. The filter may not be placed. Replace the filter.
The filter warning led is blinking even though the filter is placed. Call technical service.
