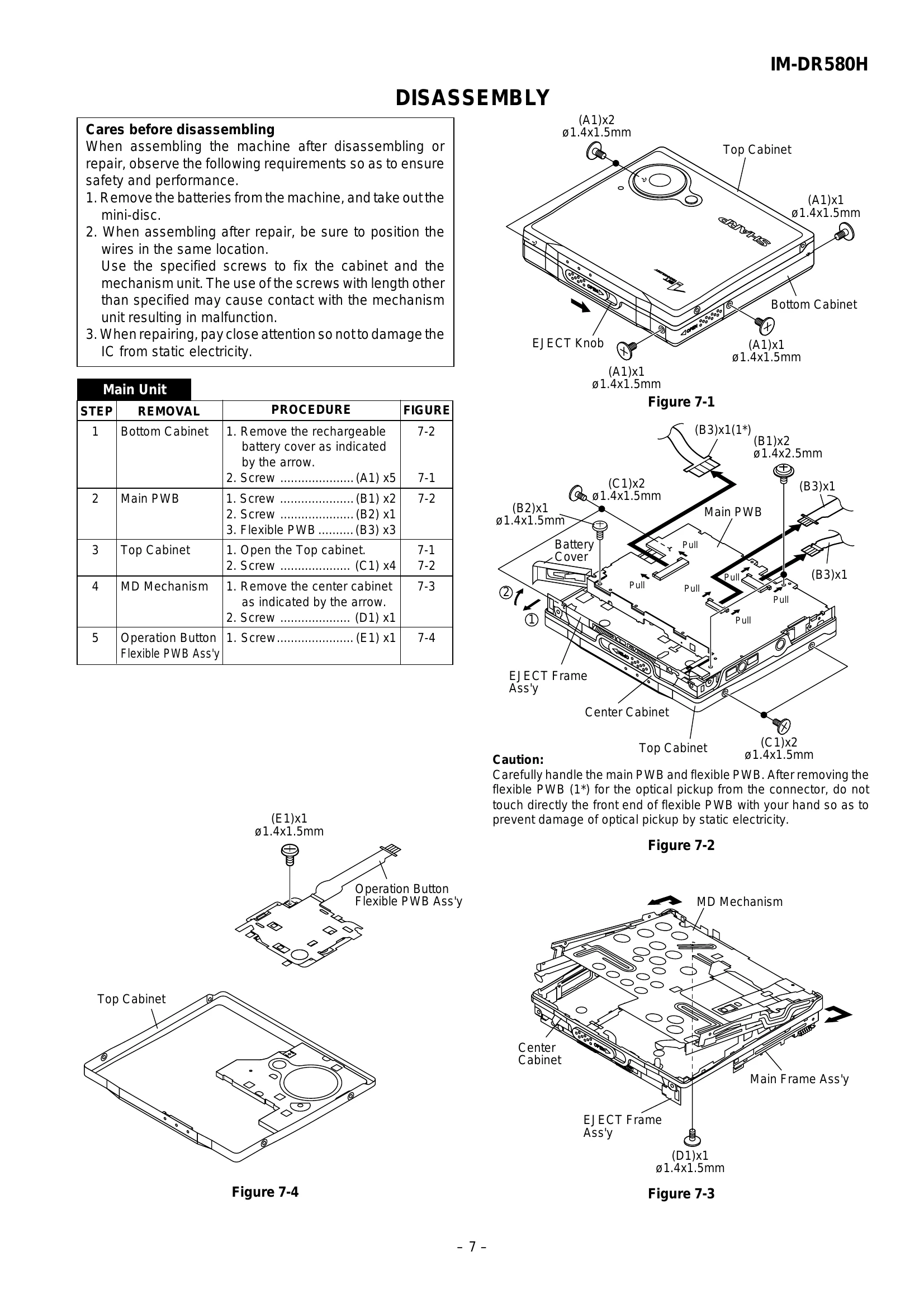

Manual for IM-DR580H
Uploaded: Nov. 21, 2025, 7:27 p.m.
Warranty Information
This manual is for after-sales service and the contents are subject to change without notice.
Main Unit Operations:
- Power/Stop/Hold: Press to turn on/off or stop playback/recording. Hold to lock controls.
- Play/Fast Forward/Fast Reverse/Volume: Controls playback speed and volume.
- Record: Press to start recording.
- Menu Navigation: Use buttons like MENU, SKIP UP/DOWN, ENTER, etc. to access settings and functions.
- Playback/Recording Mode Switching/Charge: Selects operating mode and initiates charging.
- Display/Bass: Toggles display information and adjusts bass.
- Other buttons (Record, Erase, Power On/Off, FF/FR, Play/Pause, Enter/USB, Menu): Control various functions related to playback, recording, and system settings.
- Offers similar control functions to the main unit and multi-link station, including playback, recording, menu navigation, and volume control.
Troubleshooting and error codes
| Error Code | Description | Possible Cause |
| 13 h | Adjustment servo retraction excessive retrial | - |
| 16 h | C. IN detection time-over | - |
| 17 h | Offset measurement value out of tolerable range | - |
| 21 h | Focus retraction completion allowable time-over | - |
| 22 h | Unable to activate the spindle motor | - |
| 23 h | Track search completion allowable time-over | - |
| 32 h | P-TOC read failure | - |
| 42 h | U-TOC read failure | - |
| 44 h | U-TOC write data write disabled/read check error | - |
| 45 h | U-TOC write test failure | - |
| 52 h | SD write data write disabled | - |
| 72 h | EEPROM data read check sum error | - |
| 73 h | Record head drive disabled (by EJECT lever) | - |
| 82 h | Power overvoltage detection | - |
| 83 h | The temperature sensor output error | - |
| 91 h | Ambient temperature is higher than the allowable temperature | - |
| 'Er-MD 80' | EEPROM data cannot be read correctly | Defective EEPROM or communication paths. |
| 'Er-MD41' | Writing U-TOC fails | Defective record head, generator circuit, system LSI, or pickup laser. |
