Manual for AP1905C

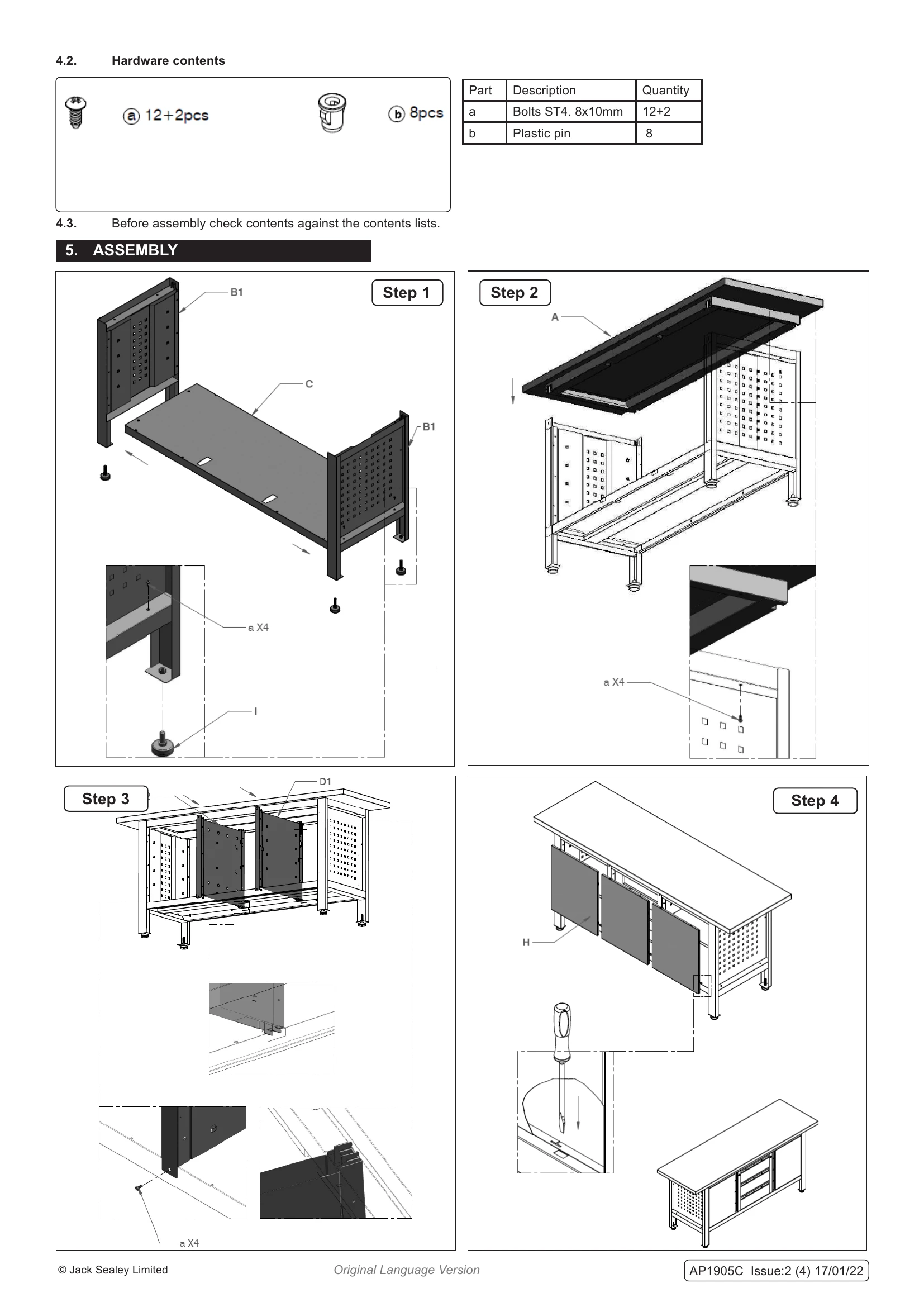

Assembly Instructions

1. Attach the left and right side panels (B1) to the bottom panel (C) using bolts (a).
2. Install the left and right supports (D1, D2).
3. Secure the top panel (A).
4. Attach the back panel (H).
5. Prepare the drawer slides by detaching the inner slide from the outer slide.
6. Install the drawer slides (J1, J2) onto the cabinet.
7. Insert the drawers (E).
8. Attach the left (F1) and right (F2) doors.
9. Install the shelves (G).
10. Adjust the leg levellers (I) for stability.

Safety Precautions

• Use in a suitable, well-lit, and clean working area.
• Place on level, solid ground (preferably concrete).
• Do not exceed the maximum capacity of 300kg.
• Secure workpieces adequately.
• Do not use outdoors or in damp conditions.
• Clean with appropriate materials; avoid solvents that can damage the finish.
