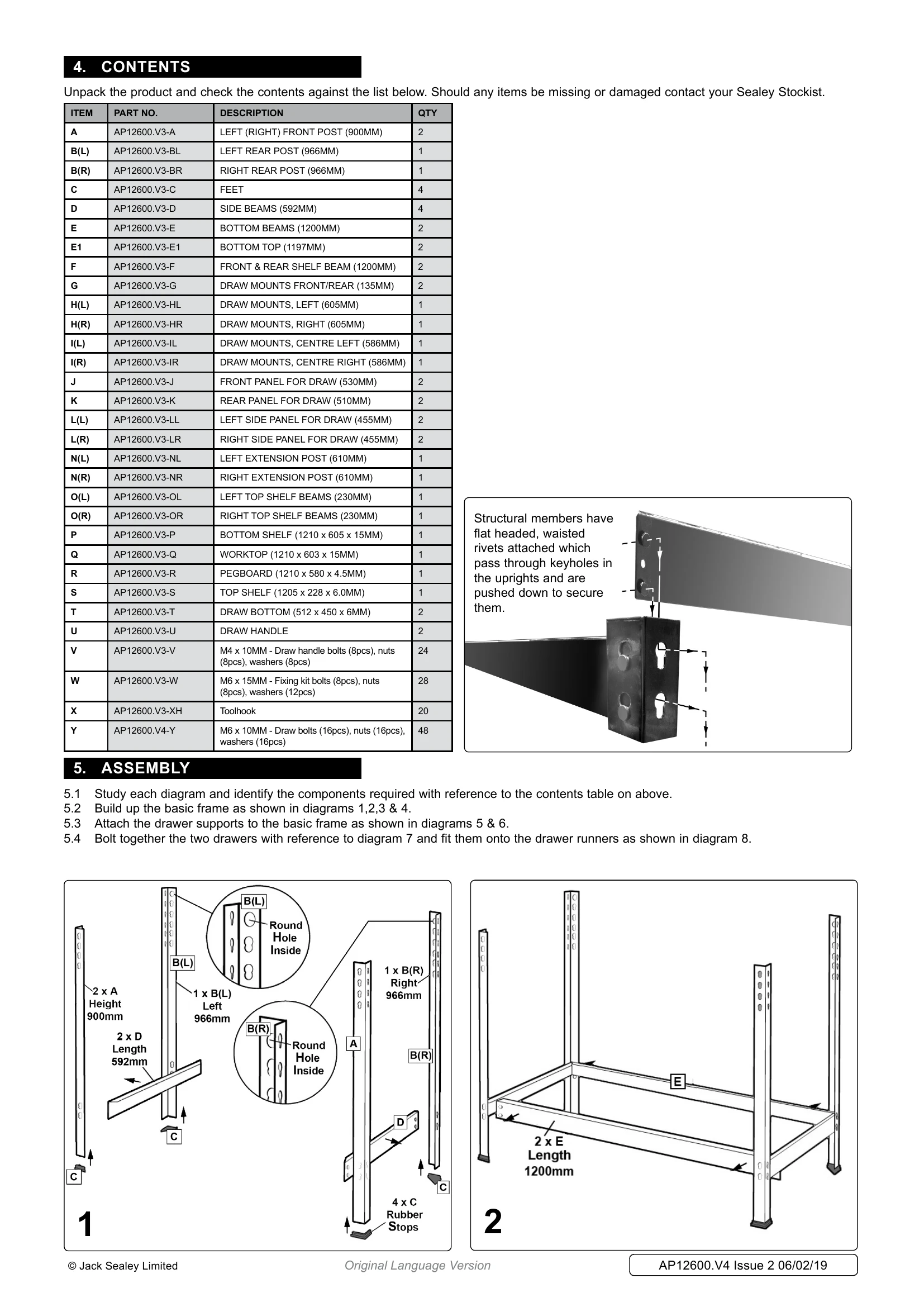

Manual for AP12600.V4
Uploaded: Nov. 21, 2025, 7:36 p.m.
Manual Publish Date: 2019-02-06
Warranty Information
Guarantee is 12 months from purchase date, proof of which is required for any claim.
- Ensure Health & Safety regulations are followed.
- Locate bench in a clean, well-lit, level, and solid work area.
- Keep children and unauthorized persons away.
- Do not use for purposes other than designed or outdoors.
- Do not get wet or use in damp locations.
- Do not exceed maximum load limits (100kg for surfaces, 20kg for top shelf).
- Secure workpiece adequately with clamps or a vice.
- Clean with appropriate materials, avoiding solvents that may damage the surface.
- Assemble the unit using the provided parts and diagrams.
- Attach drawer supports and assemble/fit drawers.
- Attach extension posts, top shelf frame, pegboard, worktop, and bottom shelf.
- Attach tool hooks to the pegboard.
Troubleshooting and error codes
| ITEM | PART NO. | DESCRIPTION | QTY |
| A | AP12600.V3-A | LEFT (RIGHT) FRONT POST (900MM) | 2 |
| B(L) | AP12600.V3-BL | LEFT REAR POST (966MM) | 1 |
| B(R) | AP12600.V3-BR | RIGHT REAR POST (966MM) | 1 |
| C | AP12600.V3-C | FEET | 4 |
| D | AP12600.V3-D | SIDE BEAMS (592MM) | 4 |
| E | AP12600.V3-E | BOTTOM BEAMS (1200MM) | 2 |
| E1 | AP12600.V3-E1 | BOTTOM TOP (1197MM) | 2 |
| F | AP12600.V3-F | FRONT & REAR SHELF BEAM (1200MM) | 2 |
| G | AP12600.V3-G | DRAW MOUNTS FRONT/REAR (135MM) | 2 |
| H(L) | AP12600.V3-HL | DRAW MOUNTS, LEFT (605MM) | 1 |
| H(R) | AP12600.V3-HR | DRAW MOUNTS, RIGHT (605MM) | 1 |
| I(L) | AP12600.V3-IL | DRAW MOUNTS, CENTRE LEFT (586MM) | 1 |
| I(R) | AP12600.V3-IR | DRAW MOUNTS, CENTRE RIGHT (586MM) | 1 |
| J | AP12600.V3-J | FRONT PANEL FOR DRAW (530MM) | 2 |
| K | AP12600.V3-K | REAR PANEL FOR DRAW (510MM) | 2 |
| L(L) | AP12600.V3-LL | LEFT SIDE PANEL FOR DRAW (455MM) | 2 |
| L(R) | AP12600.V3-LR | RIGHT SIDE PANEL FOR DRAW (455MM) | 2 |
| N(L) | AP12600.V3-NL | LEFT EXTENSION POST (610MM) | 1 |
| N(R) | AP12600.V3-NR | RIGHT EXTENSION POST (610MM) | 1 |
| O(L) | AP12600.V3-OL | LEFT TOP SHELF BEAMS (230MM) | 1 |
| O(R) | AP12600.V3-OR | RIGHT TOP SHELF BEAMS (230MM) | 1 |
| P | AP12600.V3-P | BOTTOM SHELF (1210 x 605 x 15MM) | 1 |
| Q | AP12600.V3-Q | WORKTOP (1210 x 603 x 15MM) | 1 |
| R | AP12600.V3-R | PEGBOARD (1210 x 580 x 4.5MM) | 1 |
| S | AP12600.V3-S | TOP SHELF (1205 x 228 x 6.0MM) | 1 |
| T | AP12600.V3-T | DRAW BOTTOM (512 x 450 x 6MM) | 2 |
| U | AP12600.V3-U | DRAW HANDLE | 2 |
| V | AP12600.V3-V | M4 x 10MM - Draw handle bolts (8pcs), nuts (8pcs), washers (8pcs) | 24 |
| W | AP12600.V3-W | M6 x 15MM - Fixing kit bolts (8pcs), nuts (8pcs), washers (12pcs) | 28 |
| X | AP12600.V3-XH | Toolhook | 20 |
| Y | AP12600.V4-Y | M6 x 10MM - Draw bolts (16pcs), nuts (16pcs), washers (16pcs) | 48 |
