Brand: SEALEY
Category: Wet & Dry Vacuum Cleaner
Document Type: Manual
Language: EN

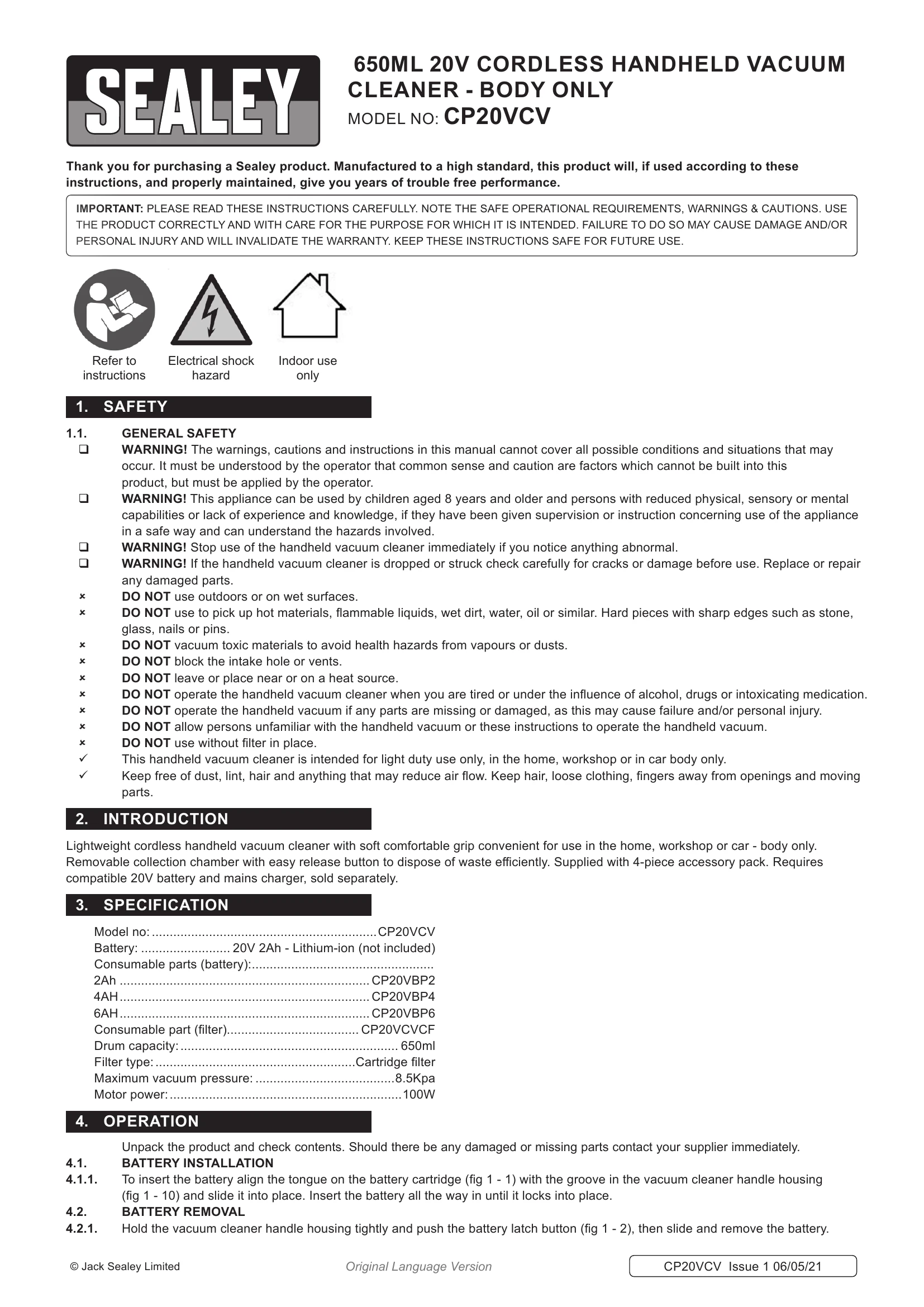

Manual for CP20VCV
Uploaded: Nov. 21, 2025, 6:21 p.m.
Manual Publish Date: 2021-05-06
Warranty Information
Guarantee is 12 months from purchase date, proof of which is required for any claim.
BATTERY INSTALLATION
Align the battery cartridge tongue with the groove in the handle housing and slide in until it locks.
BATTERY REMOVAL
Hold handle, push battery latch button, and slide battery out.
ATTACHING AND REMOVING NOZZLES
Push floor or crevice nozzle firmly onto intake port. Pull off to remove.
ATTACHING AND REMOVING THE EXTENSION TUBE
Push extension tube onto intake port, then attach nozzle. Pull off to remove.
TURNING THE VACUUM CLEANER ON/OFF
Push on/off switch forward to turn on, backwards to turn off.
USING THE VACUUM CLEANER
Select nozzle, attach extension tube if needed. Hold by handle and push at an even speed.
EMPTYING THE DRUM CANNISTER
Press release button, remove cannister from motor housing. Remove filter assembly. Shake/tap cannister over waste bin. Re-assemble.
