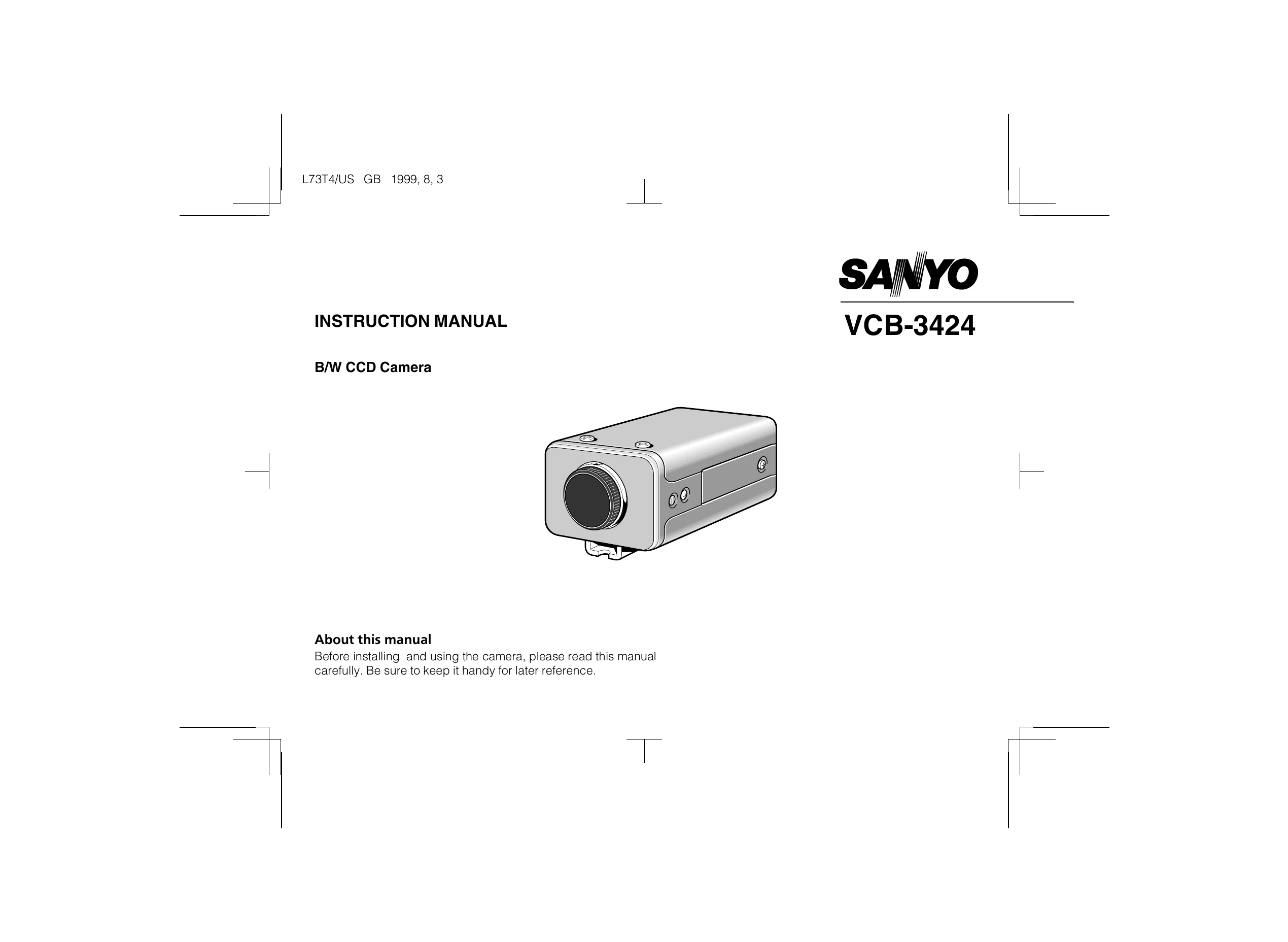

Manual for VCB-3424
Uploaded: Nov. 21, 2025, 6:57 p.m.
Warranty Information
Sanyo Fisher (USA) Corporation warrants the Sanyo VCB-3424 against defects for 3 years on labor, parts, and image device.
The manual provides instructions for operating the Sanyo VCB-3424 B/W CCD Camera. It covers installation, connections, settings, and troubleshooting. Key operations include connecting power and video signals, mounting lenses, adjusting settings like electronic iris and backlight compensation, and troubleshooting common issues such as no picture or unclear images. Refer to specific sections for detailed steps on each operation.
Troubleshooting and error codes
| Issue | Possible Cause/Solution |
|---|---|
| No picture on the monitor screen | Is the power turned on to all connected devices? Is the voltage correct? Are all the signal connecting cables correctly connected? Is the lighting sufficient? Has the lens cap been removed? Is the lens type (DC or VIDEO) correctly selected? Is the iris control correctly set? A: When using a DC type lens, the LEVEL volume (inside the camera casing) should be adjusted. B: When using a VIDEO type lens, the LEVEL volume (on the lens) should be adjusted. |
| The picture is not clear | Is the monitor correctly adjusted? Is the flange-back position correctly set? Is the lens focus correctly adjusted? Are the lens surfaces clean? |
