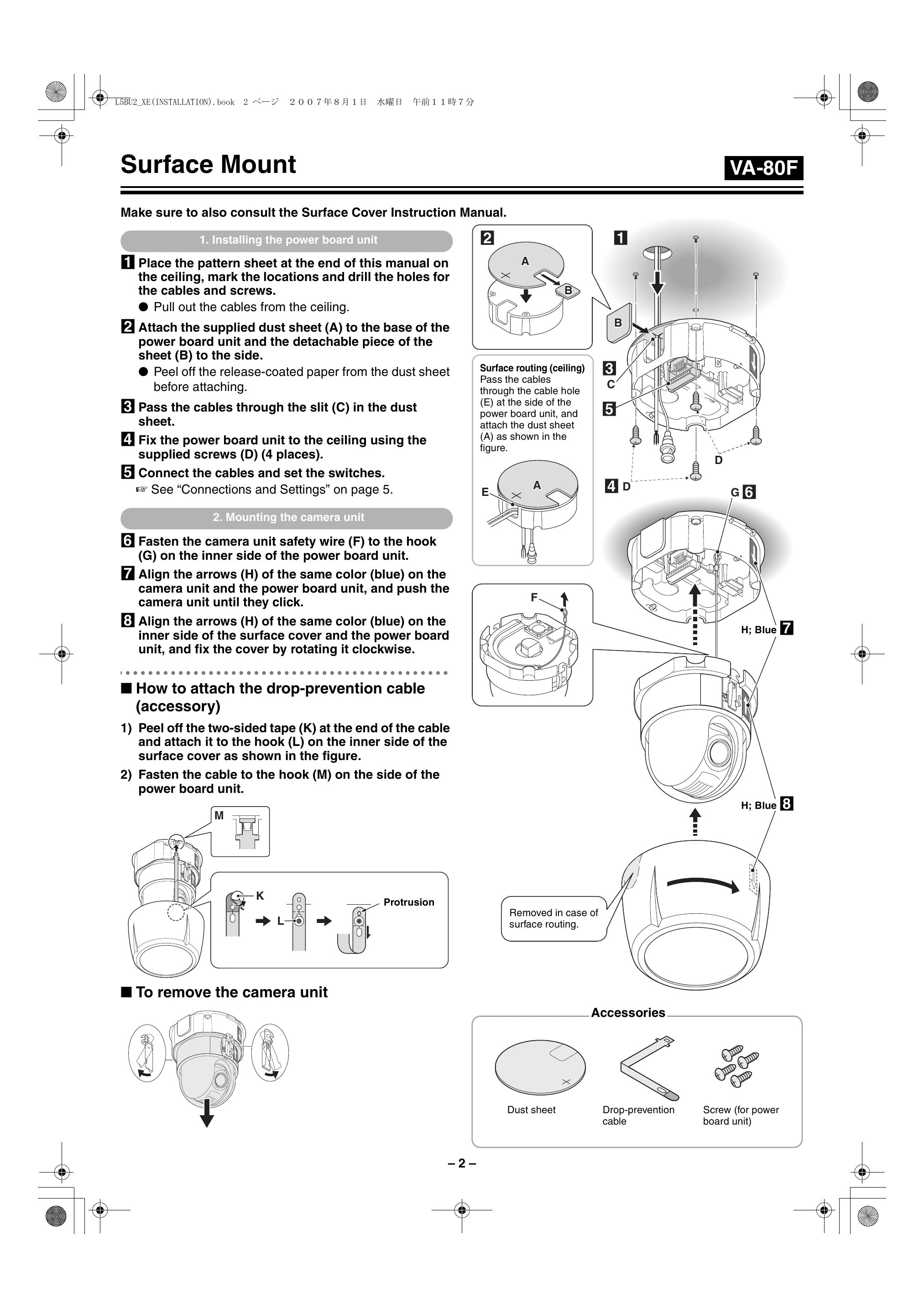

Surface Mount Installation (VA-80F):

  1. Place the pattern sheet, mark and drill holes for cables and screws. Pull cables through.
  2. Attach the dust sheet to the power board unit base and detachable piece. Peel off release paper.
  3. Pass cables through the dust sheet slit.
  4. Fix the power board unit to the ceiling with screws.
  5. Connect cables and set switches (refer to "Connections and Settings").
  6. Fasten the camera unit safety wire.
  7. Align colored arrows on the camera unit and power board unit, push to click.
  8. Align colored arrows on the surface cover and power board unit, rotate clockwise to fix.

Drop-prevention Cable Attachment:

  1. Peel two-sided tape, attach to hook on the surface cover inner side.
  2. Fasten the cable to the hook on the power board unit side.

To remove the camera unit: Refer to the provided diagram.
