Parts/Service for PLC-XM100

Parts/Service for PLC-XM100

Brand: SANYO

Category: Video

Document Type: Parts/Service

Language: EN

Uploaded: Nov. 21, 2025, 7:29 p.m.

Warranty Information

Refer to the owner's manual for warranty details, as this service manual does not specify it.

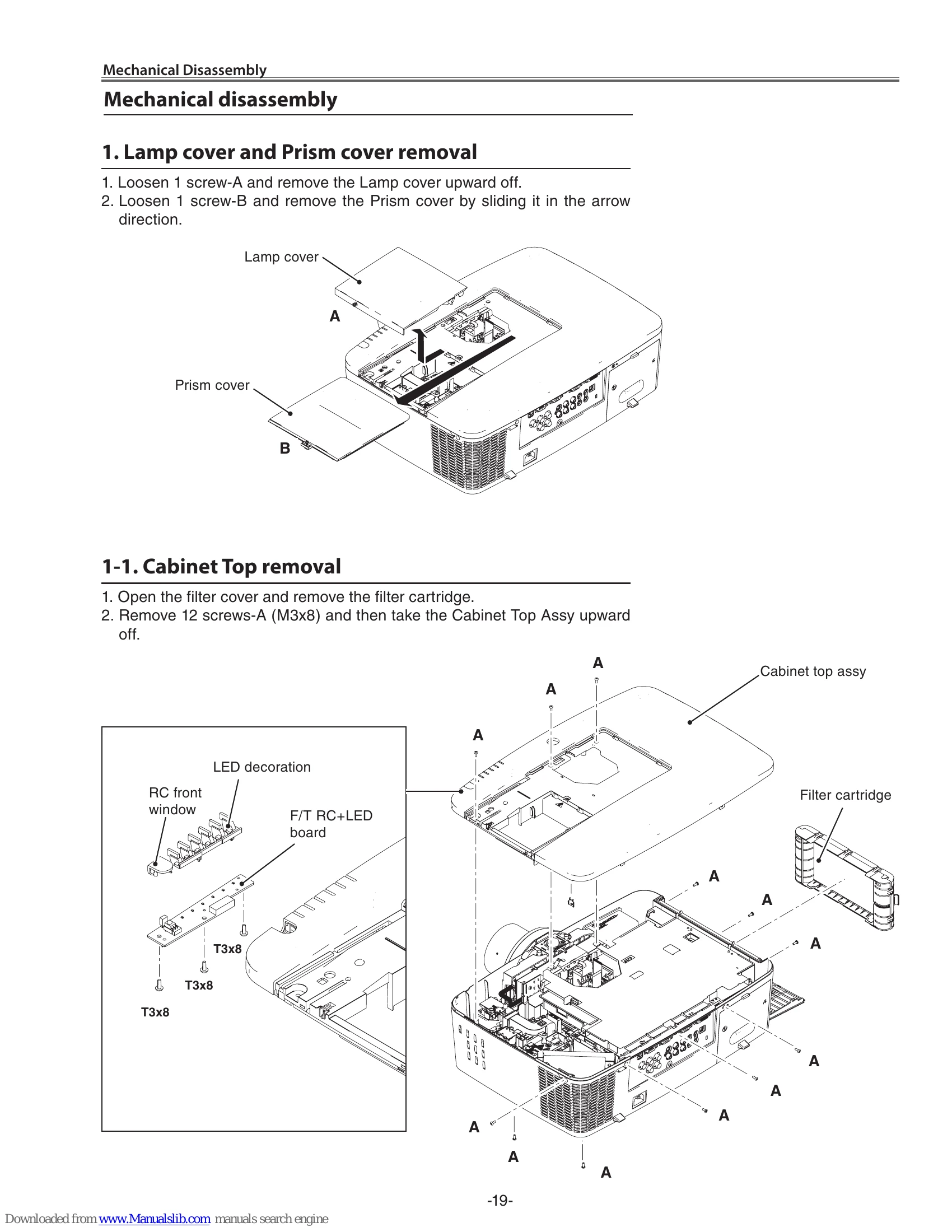

Basic Operation

The projector is designed for multimedia presentations. Key operational aspects include:

  • Powering On/Off: Use the ON/STAND-BY button.
  • Lamp Replacement: Follow specific procedures after the lamp reaches its end of life, ensuring the unit has cooled down sufficiently.
  • Filter Maintenance: Regularly replace the filter cartridge to maintain cooling efficiency and image quality. Resetting the filter counter is necessary after replacement.
  • Lens Installation: Procedures for removing and attaching lenses, including the use of the lens release button and alignment of red dots.
  • Security Functions: Key lock, PIN code lock, and Logo PIN code lock can be set to prevent unauthorized use or changes. Resetting procedures are available for lost codes.
  • Troubleshooting: The manual provides extensive troubleshooting guides for common issues like no power, no picture, and temperature abnormalities, referencing LED indicators and specific circuit protections.

Troubleshooting and error codes

Symptom Possible Cause Countermeasure
No Power Power cord not connected. Connect the power cord.
No Power Fuse blown. Replace the fuse (refer to page 5 for part number and replacement instructions).
No Power Internal power supply failure. Check power supply unit, consult service manual for further diagnostics.
No Picture Lamp not turned on. Ensure lamp is properly installed and powered.
No Picture Input signal issue. Check input source and cable connection. Verify signal compatibility.
No Picture Projection lens issue. Clean lens, check for obstructions.
Temperature Abnormality (WARNING TEMP indicator blinking) Poor ventilation or blocked vents. Ensure adequate space around the projector and check that vents are not blocked.
Temperature Abnormality Projector installed near HVAC vents. Relocate the projector away from direct airflow from HVAC systems.
Temperature Abnormality Dirty filter. Replace the filter cartridge (refer to page 9).
Lamp REPLACE indicator lights Lamp end of life. Replace the lamp (refer to page 11).
Projector shuts down, LAMP indicator lights, other indicators blink Power failure or fan lock detected. Unplug and replug AC cord. Check filter cartridge installation. If problem persists, consult service manual.
Projector cannot turn on / LAMP indicator lighting / other indicators blinking Filter cartridge not installed correctly. Ensure the filter cartridge is properly inserted and the filter cover is closed.
