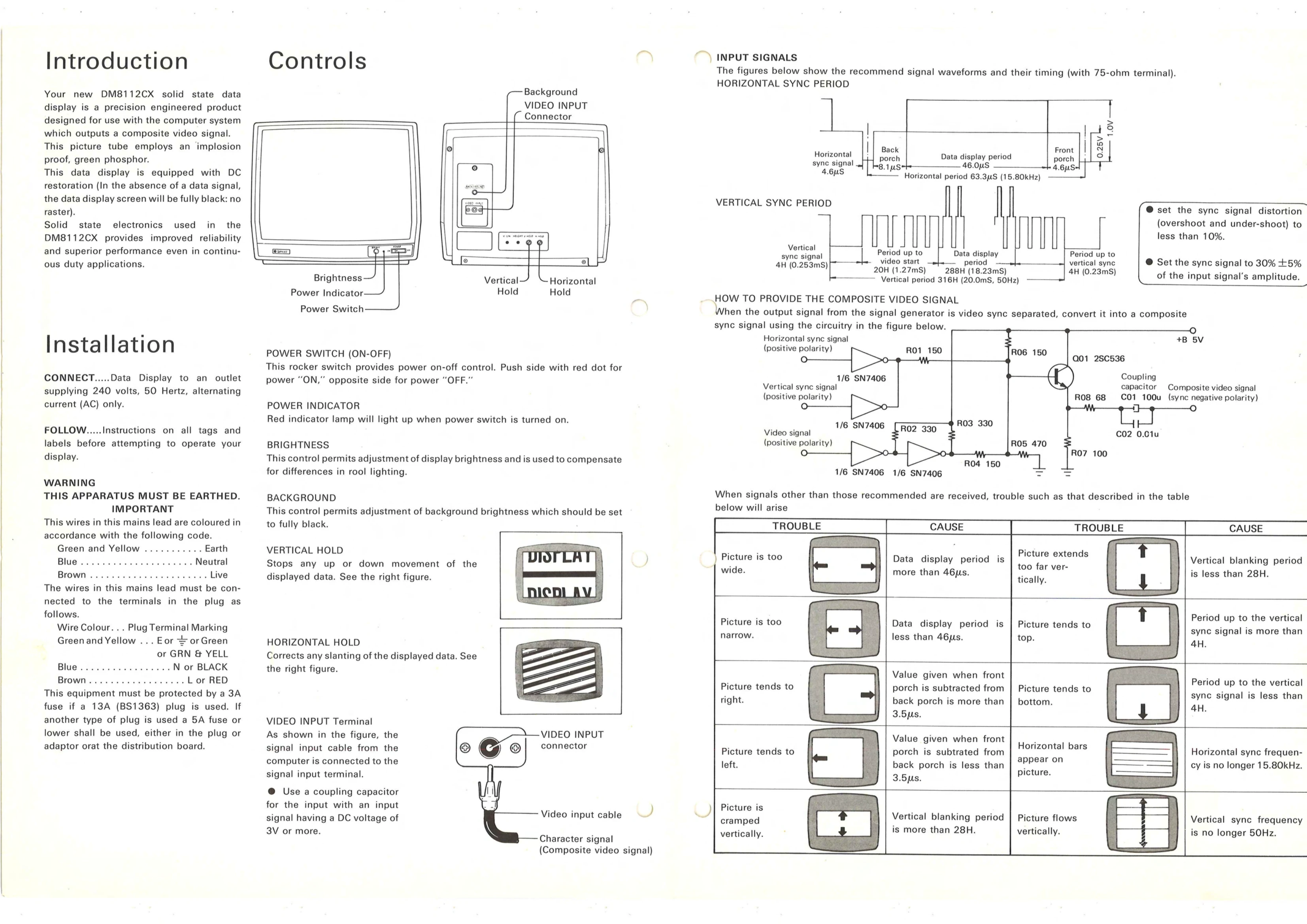

Introduction

Your new DM8112CX solid state data display is a precision engineered product designed for use with the computer system which outputs a composite video signal. This picture tube employs an implosion proof, green phosphor. This data display is equipped with DC restoration (In the absence of a data signal, the data display screen will be fully black: no raster). Solid state electronics used in the DM8112CX provides improved reliability and superior performance even in continuous duty applications.

Controls

  • POWER SWITCH (ON-OFF): Rocker switch for power control. Push side with red dot for "ON," opposite side for "OFF."
  • POWER INDICATOR: Red lamp lights up when power switch is turned on.
  • BRIGHTNESS: Adjusts display brightness.
  • BACKGROUND: Adjusts background brightness to be set to fully black.
  • VERTICAL HOLD: Stops up or down movement of the displayed data.
  • HORIZONTAL HOLD: Corrects any slanting of the displayed data.
  • VIDEO INPUT Terminal: Connects the signal input cable from the computer. Use a coupling capacitor for input with a DC voltage of 3V or more.

Installation

  • CONNECT: Connect the Data Display to an outlet supplying 240 volts, 50 Hertz, alternating current (AC) only.
  • FOLLOW: Instructions on all tags and labels before attempting to operate your display.
WARNING: THIS APPARATUS MUST BE EARTHED. IMPORTANT: Mains lead wiring colors and plug terminal markings are specified for Earth (Green and Yellow), Neutral (Blue), and Live (Brown). Ensure correct fuse rating (3A for BS1363 plug, 5A or lower for other types).

Troubleshooting and error codes

TROUBLE CAUSE TROUBLE CAUSE
Picture is too wide. Data display period is more than 46μs. Picture extends too far vertically. Vertical blanking period is less than 28H.
Picture is too narrow. Data display period is less than 46μs. Picture tends to top. Period up to the vertical sync signal is more than 4H.
Picture tends to right. Value given when front porch is subtracted from back porch is more than 3.5μs. Picture tends to bottom. Period up to the vertical sync signal is less than 4H.
Picture tends to left. Value given when front porch is subtracted from back porch is less than 3.5μs. Horizontal bars appear on picture. Horizontal sync frequency is no longer 15.80kHz.
Picture is cramped vertically. Vertical blanking period is more than 28H. Picture flows vertically. Vertical sync frequency is no longer 50Hz.
