Parts/Service for SR-3620W
Uploaded: Nov. 21, 2025, 9:18 p.m.

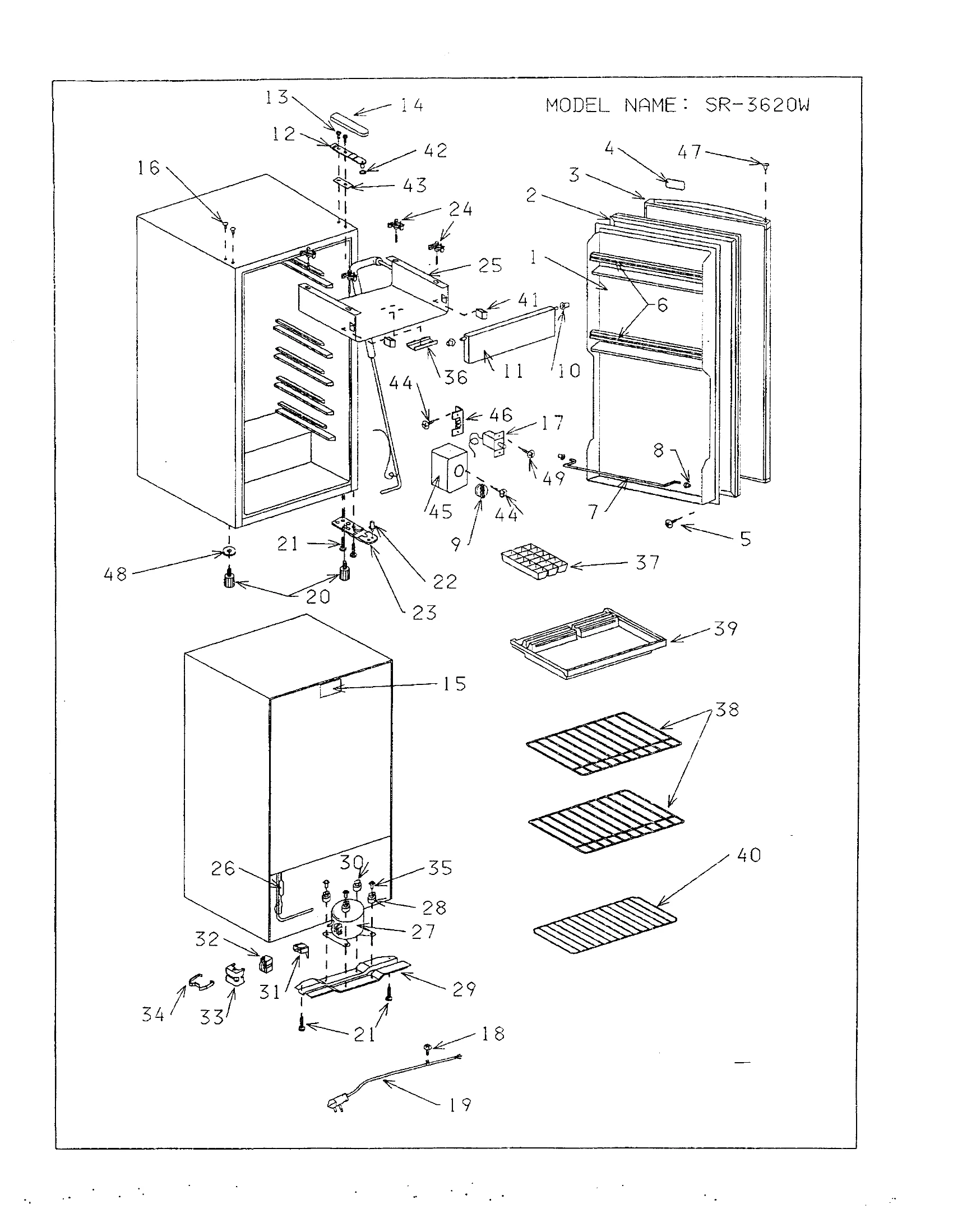

This manual provides a comprehensive parts list for the SANYO SR-3620W refrigerator. It includes item numbers, part numbers, and descriptions for various components. The document also features an illustration of the refrigerator with numbered parts corresponding to the list. It is intended for service and parts identification purposes.
Troubleshooting and error codes
| ITEM NO. | Part No. | Description |
|---|---|---|
| 1 | 8332320152302 | Door Liner |
| 2 | 8330331651800 | Gasket White |
| 3 | 8330310153977 | Foamed Door |
| 4 | 8332331055200 | Mascot SANYO |
| 5 | S1440100001000 | Tapping Screw |
| 6 | 8332320250911 | Door Shelf Trim |
| 7 | 8332320350300 | Panel Bar |
| 8 | 8312322310600 | Door Shelf Bushing |
| 9 | 8312612083272 | Thermo Knob |
| 10 | 8332232211600 | Evap. Door Grommet |
| 11 | 8312230514697 | Evap. Door Blank |
| 12 | 8330132050700 | Hinge Top Assy |
| 13 | S31050160001GT | Bolt # 027 |
| 14 | 8332133050400 | Cover Hinge Top |
| 15 | 8336421950300 | Wiring Diagram w/o Light |
| 16 | 8332332850602 | Plug Button, White |
| 17 | 2FB4S40100200 | Thermostat ATB-3U1064 |
| 18 | S0440080001T00 | Screw # 026 |
| 19 | 8334243050700 | SPT-3 Power Cord w/Bushing |
| 20 | 8332111050070 | Legs |
| 21 | S31050160001GT | Bolt # 027 |
| 22 | 8332132051570 | Shaft Hinge Bottom |
| 23 | 8332132051381 | Bottom Hinge |
| 24 | 8319232500100 | Evap. Bracket w/pin |
| 25 | 8310410191073 | Evaporator Assy |
| 26 | 8330420250300 | Single Dryer 8gr. |
| 27 | OBC8035800200 | Compressor C-QN43L2A |
| 28 | 8312430683101 | Grommet Comp. Mtg. |
| 29 | 8332120150271B | Comp. Base Plate |
| 30 | 8332430650301 | Grommet Comp. Mtg. |
| 31 | 4BC4S20000570 | Overload Relay 189T |
| 32 | 4204947370 | PTC Thermistor T47A |
| 33 | 8332533250800A | Relay Cover |
| 34 | 8012892670200 | Clip, Relay Cover |
| 35 | 8312430970000 | Bolt # 050 |
| 36 | 8332432750200 | Clamp Thermo Bulb |
| 37 | 8332221460200 | Ice Cube Tray |
| 38 | 833220551800B | Shelf Upper |
| 39 | 8332220250700 | Drip Tray |
| 40 | 8312220592270 | Shelf Lower |
| 41 | 8312430610500 | Evaporator Door Bumper |
| 42 | 8332132550400 | Washer |
| 43 | 8332332550271B | Shim, Hinge Top |
| 44 | S1440100001000 | Tapping Screw |
| 45 | 8332230850400 | Panel, Thermo |
| 46 | 8312233125471 | Plate Mtg., Thermo |
| 47 | 8332332870400 | Cap Grommet, White |
| 48 | SWZ801803ROSF | Steel Washer |
| 49 | S0440080001T00 | Screw #26 |
| Parts Not Illustrated | ||
| Part No. | Description | |
| 8336460145300 | Owner's Manual/Part List | |
| 8336411961400 | Auxiliary Manual | |
| 8336411950600 | Child Entrapment Leaflet | |
| 8336451950214A | Limited Warranty |
