Brand: SAMSUNG
Category: TV
Document Type: Installation Guide
Language: EN
Installation Guide for LW17M24C
Uploaded: Nov. 21, 2025, 6:38 p.m.

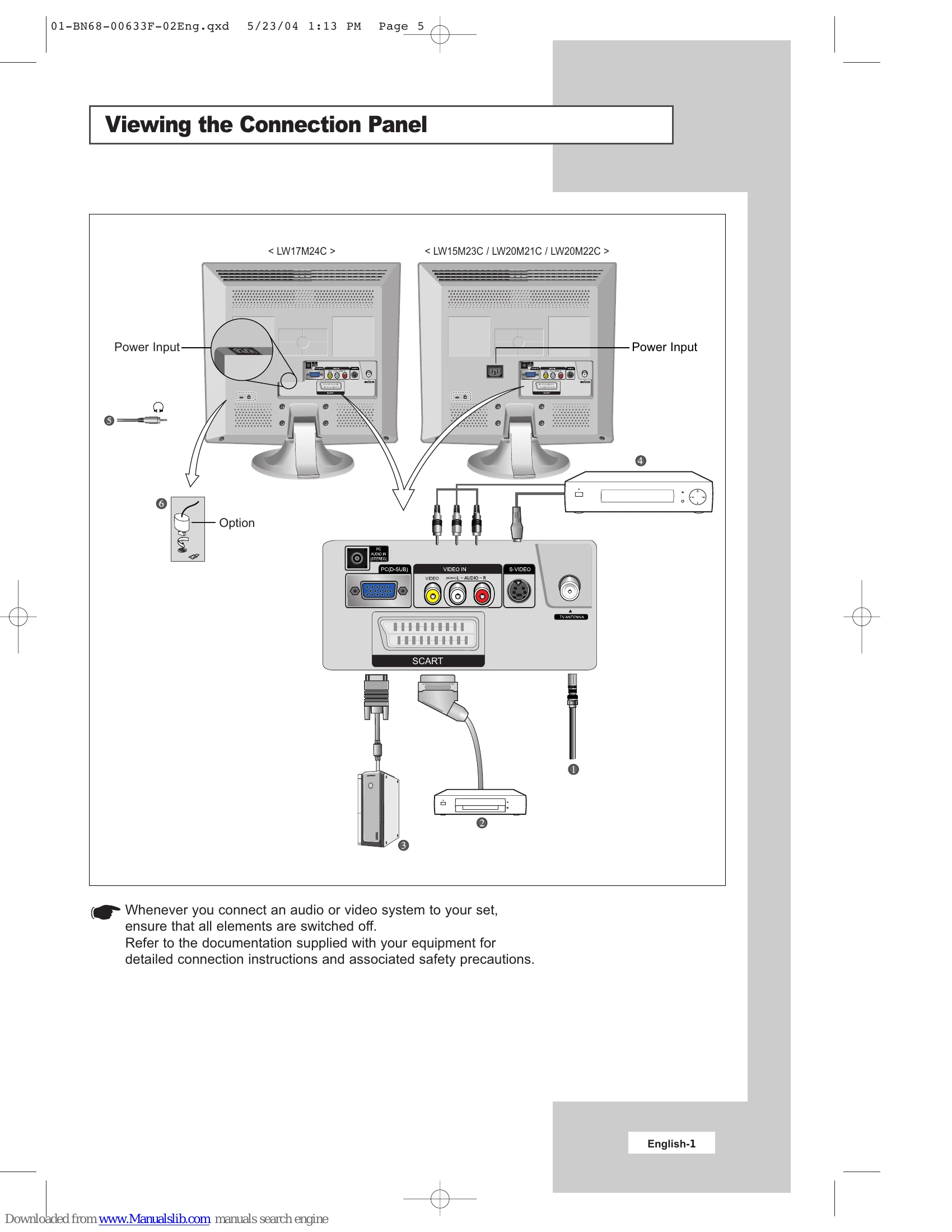

- Connecting Devices: Connect external devices like VCRs, DVDs, computers, or audio systems to the appropriate input ports (SCART, PC D-SUB, Video In, Audio In, S-Video). Ensure all devices are switched off before connecting.
- Headphone Use: Plug headphones into the 3.5mm jack on the side of the set. This will disable the built-in speakers.
- Kensington Lock: Use the Kensington slot for an anti-theft lock, especially in public places.
- Stand Adjustment: The stand allows for tilting within a specified range (max 13 degrees backward). Avoid excessive force to prevent damage. Some models also swivel.
- Wall Mount Installation: Follow instructions to securely mount the TV to a concrete wall using the provided bracket, anchors, and screws. Ensure the bracket is firmly fixed.
- Angle Adjustment (Wall-Mounted): When wall-mounted, the TV offers an adjustment angle of 0° to 10°.
