Brand: SAMSUNG
Category: Refrigerator
Document Type: Manual
Language: EN
Manual for RZ60FHMH
Uploaded: Nov. 21, 2025, 6:47 p.m.
Manual Publish Date: 2011-11-23
Warranty Information
Contact SAMSUNG WORLD WIDE for product inquiries and customer care.

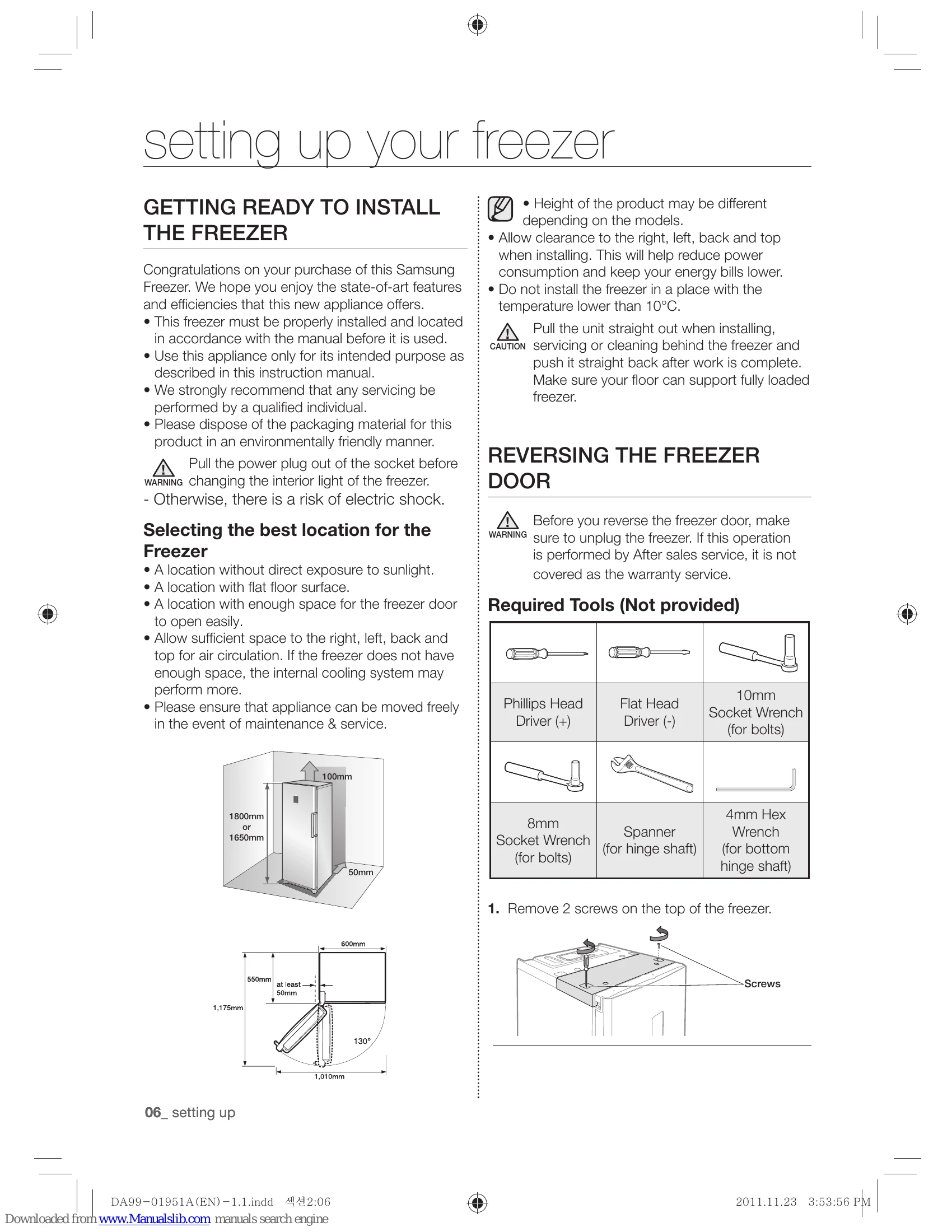

- Setting Up Your Freezer: Ensure proper installation location with adequate ventilation, avoiding direct sunlight and heat sources. Allow space for air circulation and door opening. Reversing the freezer door may require specific tools and careful execution, following step-by-step instructions.
- Operating Your Freezer: Level the freezer using the adjustable legs for easier door operation. Use the control panel to set the desired temperature (between -14°C and -24°C), activate Power Freeze for rapid freezing, set alarms for door openings, and utilize the Eco function for energy saving. The Fresher box can be adjusted for storing food either fresh or preserved.
- Maintaining Your Freezer: Learn how to make and remove ice cubes using the provided tray and storage bin. Interior parts like shelves, drawers, and door guards can be removed for cleaning. Specific instructions are given for cleaning the freezer, emphasizing the use of mild cleaning agents and avoiding water spray while plugged in. For LED lamp replacement, contact a service engineer.
- Troubleshooting: A table is provided to help diagnose and resolve common issues such as the appliance not operating, unusual noises, condensation, bad smells, or frost formation. Solutions involve checking power connections, temperature settings, installation conditions, and food storage practices.
Troubleshooting and error codes
| PROBLEM | SOLUTION |
|---|---|
| The appliance is not operating at all or the temperature is too high. | • Check if the power plug is correctly connected. • Is the temperature control on the front panel correctly set? • Does sun shine on the appliance or are there any heat sour ces nearby? • Is the back of the appliance too close to the wall? |
| There are unusual noises. | • Check if the appliance is installed on a stable and even floor. • Is the back of the appliance too close to the wall? • Have any foreign objects fallen behind or under the appliance? • Is the noise coming from the compressor in the appliance? • A ticking sound may be heard inside the appliance; this is normal. This sound occurs when the various accessories contract or expand. |
| The front corners and sides of the appliance are warm and condensation starts to form. | • Heat-proof pipes are installed in the front corners of the appliance to prevent condensation from forming. When the surrounding temperature rises, this may not always be effective. However, this is not abnormal. |
| You can hear a liquid bubbling in the appliance. | • This is the refrigerant, which cools the inside of the appliance. |
| There is a bad smell inside the appliance. | • Is there any spoiled food inside of the freezer? • Make sure that strong smelling food (for example, fish) is wrapped so that it is airtight. • Clean out your freezer periodically and throw away any spoiled or suspect food. |
| There is a layer of frost on the appliances walls. | • Are the air outlet vents blocked by food stored inside the freezer? • Space the food out as much as possible to improve ventilation. • Is the door fully closed? |
| Condensation forms on the inside wall of the appliance and around vegetables. | • Food with a high water content is stored uncovered with a high humidity level or the door has been left open for a long time. • Store the food with a cover or in sealed containers. |
