Manual for HT-J5100K

Manual for HT-J5100K

Brand: SAMSUNG

Category: Home Cinema

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 9:13 p.m.

Warranty Information

Warranty information is not explicitly stated in the provided pages.

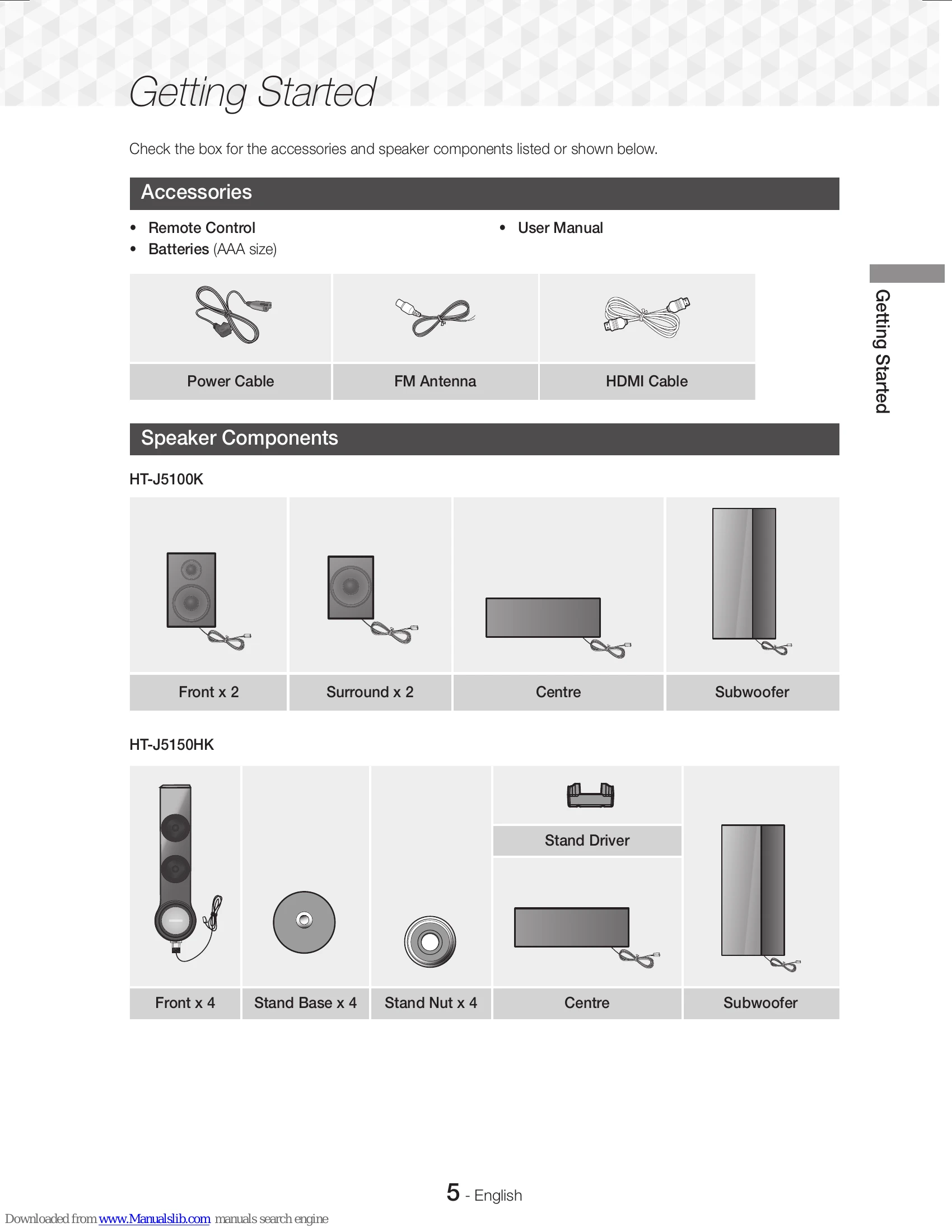

Getting Started

  • Check accessories and speaker components.
  • Connect speakers, TV, and external devices.

Settings

  • Perform initial setup (language, aspect ratio).
  • Access and adjust various settings like Picture, Sound, System, and Support.
  • Configure Radio Setup and upgrade software.

Playing Content

  • Switch between source devices (Disc, USB, etc.).
  • Play commercial discs and discs with user-recorded content.
  • Play files from a USB device.
  • Control video playback (play, pause, skip, repeat).
  • Control music playback (play, pause, skip, repeat).

Appendix

  • Additional information on connections, settings, and compatibility.
  • Troubleshooting guide for common issues.
  • Specifications of the product.
  • Licences and regional code information.

Troubleshooting and error codes

Symptom Check/Remedy
You cannot eject the disc. • Is the power cord plugged securely into the outlet?
• Turn off the power, and then turn it back on.
Playback does not start. • Check the region number of the Blu-ray/DVD disc.
A Blu-ray/DVD disc purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this product.
• Make sure that the rating level is correct.
Playback does not start immediately when you press the button. • Are you using a deformed disc or a disc with scratches on the surface?
• Wipe the disc clean.
No sound. • The home cinema does not play sound during fast playback, slow playback, and step motion playback.
• Are the speakers connected properly? Is the speaker setup correctly customized?
• Is the disc severely damaged?
You can only hear sound from a few speakers, but not all 6. • On certain Blu-ray/DVD discs, sound is output from the front speakers only.
• Check if the speakers are connected properly.
• Adjust the volume.
• When playing audio from a CD, the radio, or a TV, the unit outputs sound to the front speakers only.
Dolby Digital 5.1 CH Surround Sound is not produced. • Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.
• Is the audio language correctly set to Dolby Digital 5.1-CH in the information display?
The remote control does not work. • Are you operating the remote within its operational range and within the proper angle relative to the sensor?
• Are the batteries drained?
• Have you selected the correct mode? Press the function button to change the mode (BD/DVD, D. IN, AUX, etc.).
• The disc is rotating but there is no picture. • Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
• Picture quality is poor and the picture is shaking.
Audio language and subtitles do not work. • The Audio Language and subtitle functions will not work if the disc does not contain multiple language sound tracks or subtitles.
The menu screen does not appear even when you select the menu function. • Are you using a disc that does not contain menus?
The aspect ratio cannot be changed. • The home cinema can play 16:9 Blu-ray/DVD discs in 16:9 Full mode, 4:3 Letter Box mode, or 4:3 Pan-Scan mode, but plays 4:3 Blu-ray/DVD discs in 4:3 mode only. Refer to the Blu-ray Disc jacket, and then select the appropriate aspect ratio.
• The product is not working. (Example: The power goes off or you hear a strange noise.) • Press and hold the button on front panel for more than 5 seconds in STANDBY mode. This will reset the unit.
Using the RESET function will erase all stored settings.
Do not use this function unless necessary.
• The Product is not working normally. • With no disc in the product, press and hold the button for longer than 5 seconds. INIT appears on the display and all settings will return to their default values.
Using the RESET function will erase all stored settings.
Do not use this function unless necessary.
You have forgotten the rating level password.
Can't receive radio broadcasts. • Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM antenna in an area with good reception.
There is no sound when you try to listen to TV audio through the home cinema speakers. • If you press the button while listening to TV audio using the D. IN or AUX functions, the Blu-ray/DVD disc functions are turned on and the TV audio is muted.
"Not Available" appears on screen. • The feature is unavailable or the action cannot be completed at this time because:
1. The Blu-ray/DVD disc's software restricts it.
2. The Blu-ray/DVD disc's software doesn't support the feature (e.g., angles)
3. The feature is not available at the moment.
4. You've requested a title or chapter number or search time that is out of range.
If the HDMI output is set to a resolution your TV cannot support (for example, 1080p), you may not see a picture on your TV. • Press and hold the button on front panel for more than 5 seconds with no disc in the product. All settings will revert to their factory settings.
No HDMI output. • Check the connection between the TV and the HDMI jack of the product.
Abnormal HDMI output appears on the screen. • Check if your TV supports 576p/480p/720p/1080i/1080p HDMI input resolution.
• If random noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection).
