Brand: SAMSUNG
Category: Dishwasher
Document Type: Parts/Service
Language: EN

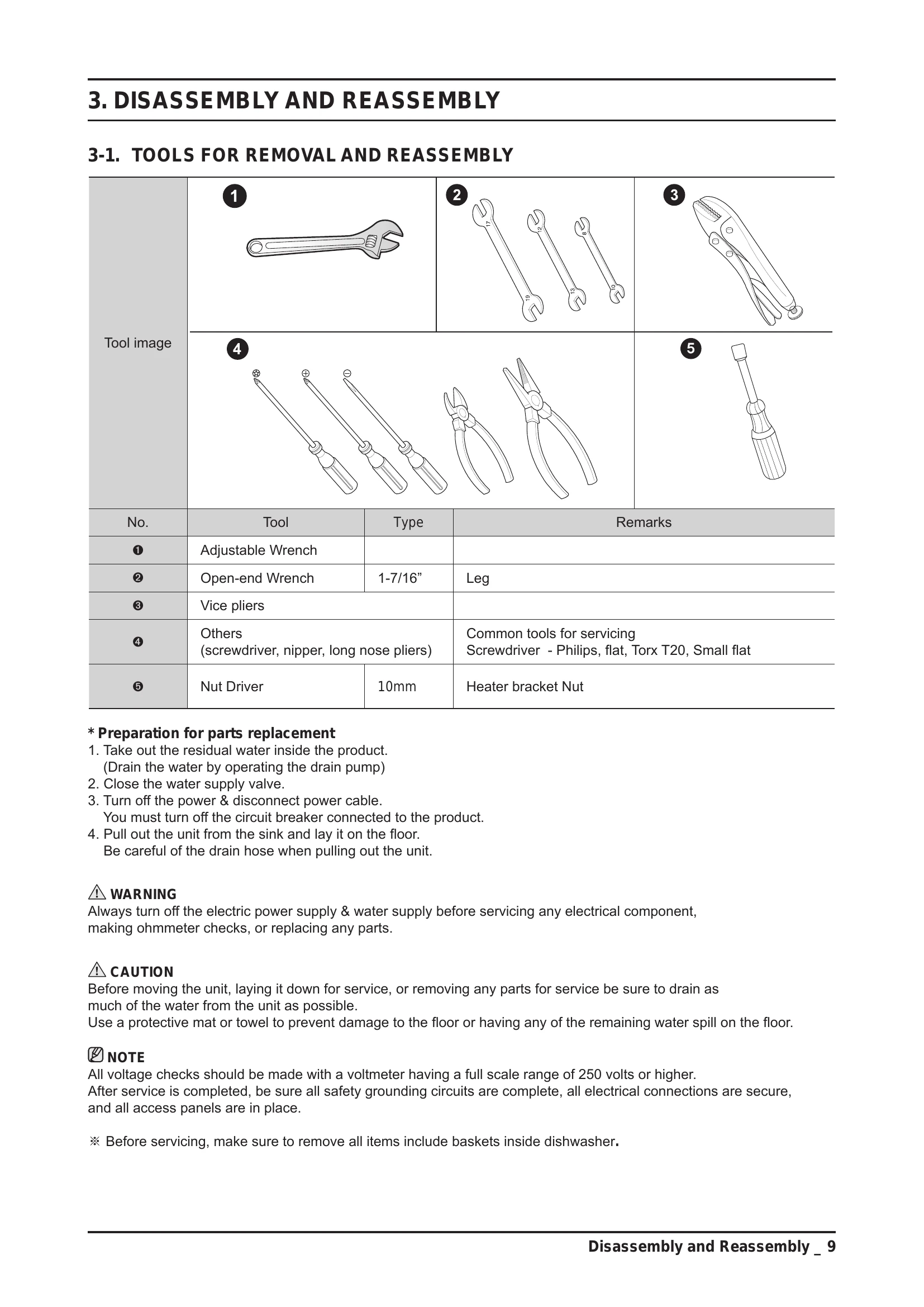

Parts/Service for DW80K5050US
Uploaded: Nov. 21, 2025, 8:46 p.m.
Warranty Information
Refer to the warranty information provided with your product for details.
Basic Operation Summary
This dishwasher offers various features for efficient cleaning. Key functions include:
- Extra large capacity: Accommodates a variety of dish sizes with a slanted upper rack.
- Increased convenience: Smart auto cycle adjusts cleaning based on soil level, saving water, energy, and time.
- Extremely quiet operation: Utilizes efficient noise control technology for a quiet user experience.
- Self-cleaning filter: Manages food waste internally and drains it automatically.
For detailed operation and troubleshooting, refer to the respective sections of the manual.
Troubleshooting and error codes
| PROBLEM | POSSIBLE CAUSE | SOLUTION |
|---|---|---|
| Will not start. | The door is not closed completely. | Check that the door is latched and closed completely. |
| It's taking too long with an operation or cycle. | Cold water is being supplied. | Check that the water supply line is connected to a hot water supply. (Additional time is required to heat cold water.) |
| There are food particles remaining on dishes. (Not cleaning properly.) | The water temperature is low. | For best performance, the temperature of the supplied water should be 120 °F (49 °C). |
| Leaves glasses with a dim polish. | The water supplied is soft and too much detergent was used. | Underload the dishwasher and use a rinse aid to minimize this. |
| Leaves a yellow or brown film on the inside of the dishwasher. | This is caused by coffee and tea soils. | Remove the soils using a spot cleaner. |
| Does not dry dishes well. | The temperature of the water is low when the dishwasher is running. | Connect the water supply line to a hot water supply. Use rinse aid with the Sanitize option. |
| Has a bad odor. | The Drain Hose is obstructed. | Contact a qualified service technician to remove any obstruction from the drain hose. |
| Is too noisy. | Sound is generated when the dispenser cover is open and the drain pump is operating in an early stage. | This is normal operation. |
| Does not have a smoothly rotating nozzle. | The nozzle hole is clogged with food particles. | Clean the nozzle hole. |
| Water won't pump out of the dishwasher. | The drain is clogged. | Contact a qualified service technician to remove any obstruction from the drain hose and check the drain pump operation. |
| Has a bent upper rack after loading dishes. | The dishes are not loaded properly. | Load your dishes as recommended. |
