Brand: PIONEER
Category: Plasma Display
Document Type: Manual
Language: EN
Manual for PDP-6010FD
Uploaded: Nov. 21, 2025, 7:52 p.m.
Manual Publish Date: 2007-07-01
Warranty Information
Consult the warranty card for specific warranty details.

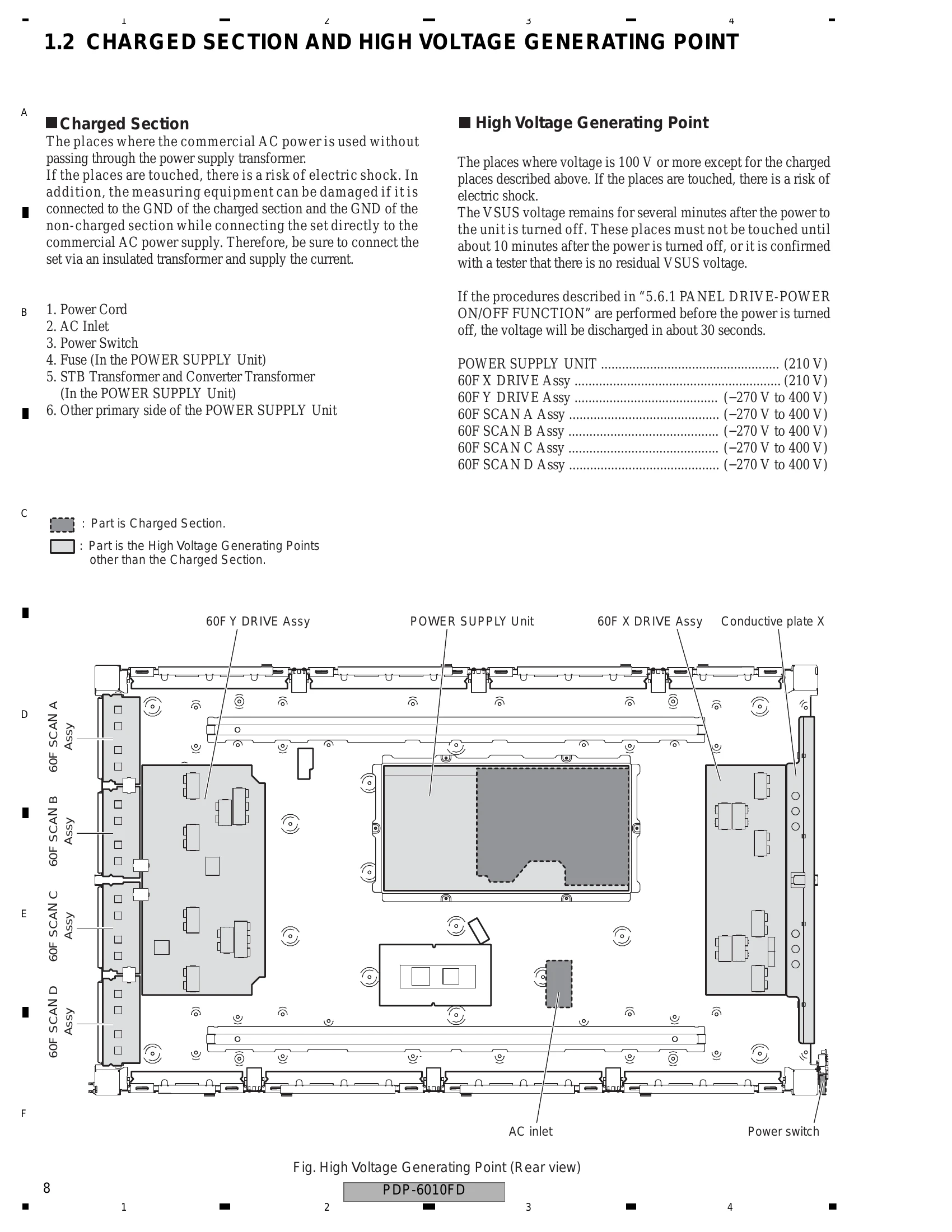

This manual provides detailed service information for the PIONEER PDP-6010FD Plasma Display System. It includes sections on safety precautions, specifications, basic service items, block diagrams, detailed diagrams of various units (Power Supply, Drive Assys, Digital Assy, Main Assy, etc.), diagnosis procedures, service factory mode, disassembly instructions, and parts lists. The manual is intended for trained service personnel.
Troubleshooting and error codes
| PD/SD | Item | No. of LEDs flashing | LED Display Information |
|---|---|---|---|
| SQ_LSI | |||
| Communication with the module IIC | Blue 1 | ● ● ● ● ● ● ● ● ● ● ● | |
| DIGITAL-RST2 | Blue 2 | ● ● ● ● ● ● ● ● ● ● ● | |
| Panel high temperature | Blue 3 | ● ● ● ● ● ● ● ● ● ● ● | |
| Audio/ Short-circuit SP terminal | Blue 4 | ● ● ● ● ● ● ● ● ● ● ● | |
| Communication with the Module UCOM | Blue 5 | ● ● ● ● ● ● ● ● ● ● ● | |
| Main 3-wire serial communication | Blue 6 | ● ● ● ● ● ● ● ● ● ● ● | |
| Main IIC communication | Blue 7 | ● ● ● ● ● ● ● ● ● ● ● | |
| Communication with the Main UCOM | Blue 8 | ● ● ● ● ● ● ● ● ● ● ● | |
| FAN | Blue 9 | ● ● ● ● ● ● ● ● ● ● ● | |
| Unit high temperature | Blue 10 | ● ● ● ● ● ● ● ● ● ● ● | |
| Digital Tuner communication | Blue 11 | ● ● ● ● ● ● ● ● ● ● ● | |
| MTB-RST2/RST4 | Blue 12 | ● ● ● ● ● ● ● ● ● ● ● | |
| Home Media Gallery | Blue 13 | ● ● ● ● ● ● ● ● ● ● ● | |
| Main EEPROM | Blue 14 | ● ● ● ● ● ● ● ● ● ● ● | |
| POWER | Blue 15 | ● ● ● ● ● ● ● ● ● ● ● | |
| POWER | Red 2 | ||
| SCAN | Red 3 | ||
| SCN-5V | Red 4 | ||
| Y-DRIVE | Red 5 | ||
| Y-DCDC | Red 6 | ||
| Y-SUS | Red 7 | ||
| ADRS | Red 8 | ||
| X-DRIVE | Red 9 | ||
| X-DCDC | Red 10 | ||
| X-SUS | Red 11 | ||
| DIG-DCDC | Red 12 | ||
| UNKNOWN | Red 15 |
