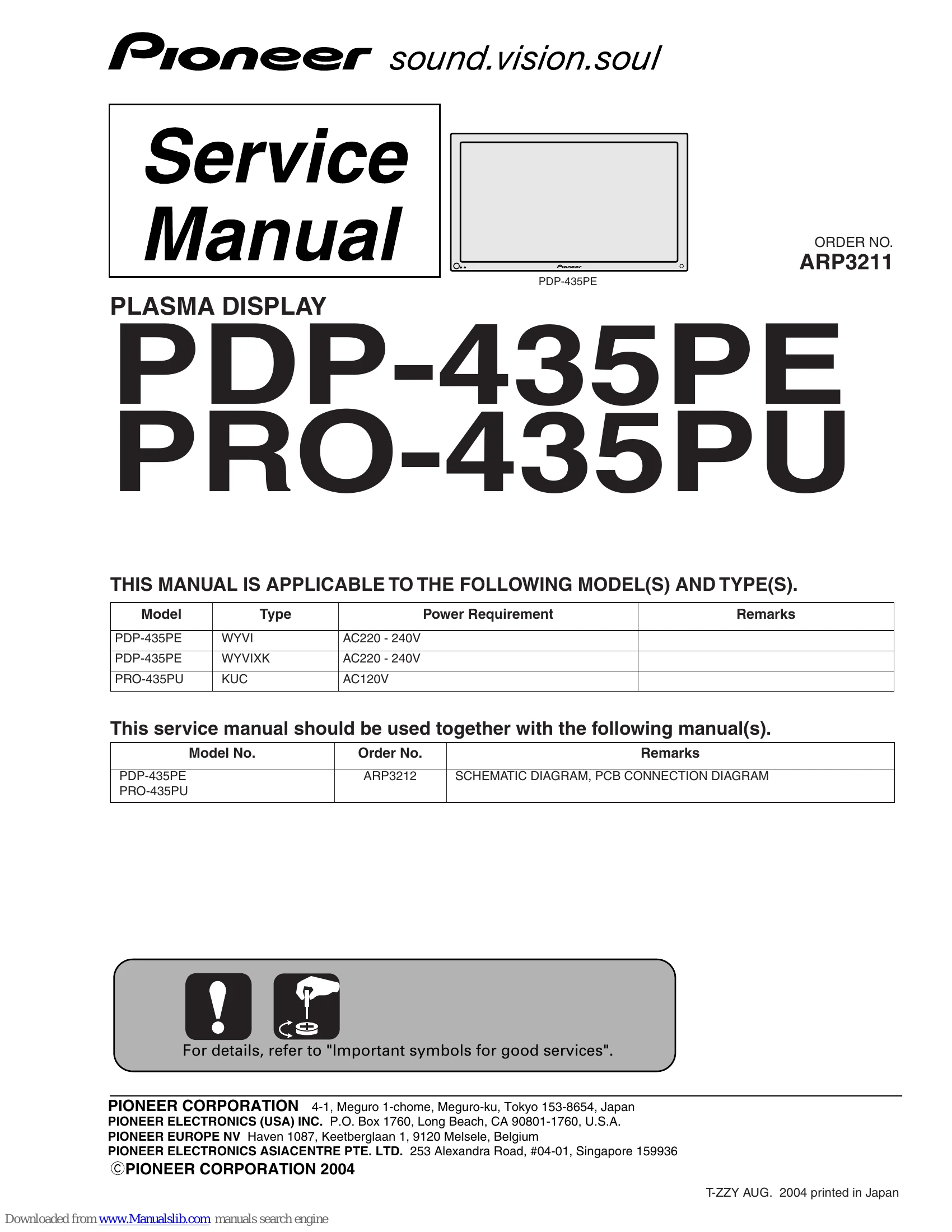

Parts/Service for PDP-435PE
Uploaded: Nov. 21, 2025, 6:37 p.m.
Manual Publish Date: 2004-08-01
Warranty Information
None
SAFETY INFORMATION:
- Intended for qualified service technicians only.
- Follow all safety precautions and warnings.
- Contains lead and chemicals known to cause cancer, birth defects, or reproductive harm.
SAFETY PRECAUTIONS:
- Use an isolation transformer when servicing.
- Ensure all protective devices are replaced correctly.
- Observe original lead dress, especially in high voltage areas.
- Use only manufacturer's replacement components.
- Thoroughly test the unit after servicing to ensure safety.
- Perform checks against unwanted radiation and internal temperature rise.
- Handle the PDP panel and FPC with care.
- Be aware of infrared radiation when the front case is removed.
LEAKAGE CURRENT CHECKS:
- Perform both Cold and Hot checks.
- Limits must be met to prevent shock hazard.
PRODUCT SAFETY NOTICE:
- Special safety-related characteristics of parts are critical.
- Use specified replacement components to avoid hazards.
CHARGED SECTION:
- Areas where AC power is used before the power supply transformer.
- Risk of electric shock.
- Requires connection via an insulated transformer.
HIGH VOLTAGE GENERATING POINT:
- Places with voltage 100V or more.
- Risk of electric shock.
IMPORTANT CHECK POINTS FOR GOOD SERVICING:
- Use specified parts and perform only authorized modifications.
- Ensure proper soldering, screw fastening, and connector insertion.
- Restore wiring and cables to their original state.
- Check for damages on power cords and plugs.
- Maintain a safe servicing environment.
ADJUSTMENTS:
- Perform according to manual instructions for optimal performance.
LUBRICANTS, GLUES, AND REPLACEMENT PARTS:
- Use specified substances and apply the proper amount.
CLEANING:
- Perform proper cleaning for optical parts to restore performance.
SHIPPING MODE AND SHIPPING SCREWS:
- Set shipping mode or install shipping screws before shipment if specified.
Troubleshooting and error codes
| Item | Trouble Symptoms | Diagnosis Method | Remedy |
|---|---|---|---|
| 7.1.2 DIAGNOSIS OF SHUTDOWN/POWER-DOWN INDICATED BY LEDS | |||
| Power Indicator | No lights | 1. Check AC Power Cord and outlet. 2. Check AC Inlet with Filter. 3. Check Power Switch (S1). 4. Check Fuse (in POWER SUPPLY Unit). 5. Check STB Transformer and Converter Transformer (in POWER SUPPLY Unit). 6. Check other primary side of the POWER SUPPLY Unit. |
Replace defective parts. |
| Power Indicator | Lights, but shuts down | 1. Check Power Switch (S1). 2. Check Fuse (in POWER SUPPLY Unit). 3. Check STB Transformer and Converter Transformer (in POWER SUPPLY Unit). 4. Check other primary side of the POWER SUPPLY Unit. 5. Check for short circuit in DC-DC Converter. 6. Check POWER SUPPLY Unit. 7. Check DRIVER ASSY. 8. Check PANEL IF Assy. |
Replace defective parts. |
| 7.1.3 DIAGNOSIS WITH THE AID OF FACTORY MODE | |||
| Display abnormalities | Screen abnormality | 1. Access factory mode. 2. Check for panel test patterns. 3. Check test patterns for abnormalities. 4. Check for abnormal patterns in specific areas. |
Adjust or replace related parts. |
| 7.1.8 TROUBLESHOOTING | |||
| No picture, no sound | Check Power Supply Unit, Digital Video Assy, and Panel Assy. | - | - |
| Picture abnormality | Check Digital Video Assy, Drive Assys, and Panel Assy. | - | - |
| Sound abnormality | Check HD AUDIO AMP Assy. | - | - |
